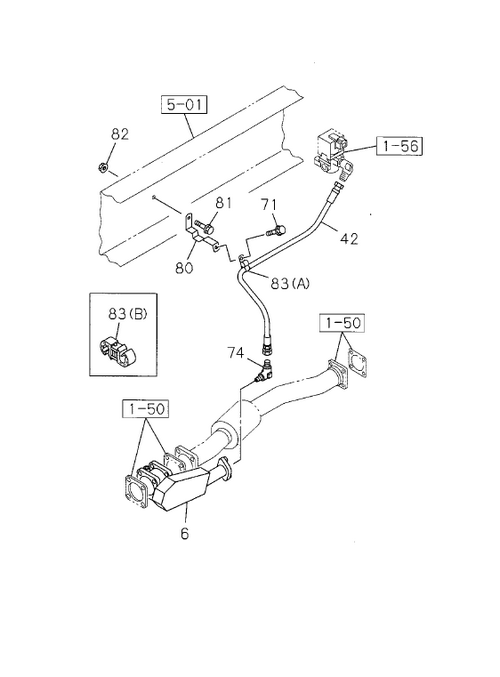

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 71 | I0-28650 825-0 | BOLT; CLIP | 1 | 1103- | A | M8X25 FLANGE IDN | ||
| 6 | I8-97489 690-0 | VALVE; EXH BRAKE | 1 | 1103- | A | |||
| 83 | I1-09709 277-1 | CLIP; FLEX HOSE | 1 | 1103- | A | (B) ID=10 & 10 | ||
| 82 | I7-05110 010-A | NUT HOSE BRKT | 1 | 1103- | A | M10 FLANGE | ||
| 42 | I1-09363 639-0 | HOSE; FLEX, EXH BRK | 1 | 1103- | A | L=600 | ||
| 81 | I0-28051 025-0 | BOLT; HOSE BRKT | 1 | 1103- | A | M10X25 FLANGE | ||
| 83 | I1-09700 820-0 | CLIP; FLEX HOSE | 1 | 1103- | A | (A) ID=11X2 L=16 | ||
| 74 | I1-09650 430-0 | CONNECTOR; EXH BRK VLV | 1 | 1103- | A | M12 & PT1/4 ELBOW | ||
| 82 | I7-05110 010-A | NUT HOSE BRKT | 1 | 1103- | A | M10 FLANGE | ||
| 80 | I8-98078 153-0 | BRACKET; FLEX HOSE | 1 | 1103- | A |
