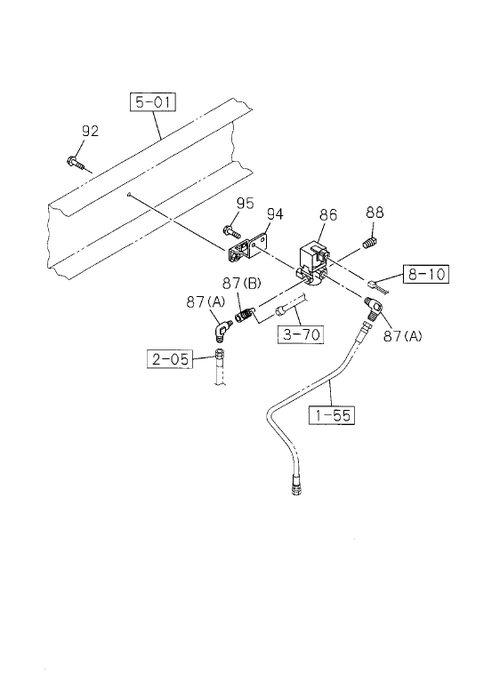

1-56 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 87 | I1-09650 430-0 | CONNECTOR | 2 | 1103- | A | ( A) M12 & PT1/4 ELBOW | ||
| 95 | I0-28650 820-0 | BOLT; BRKT, MAG VLV, EXH BRAKE | 2 | 1103- | A | M8X20 FLANGE IDN | ||
| 94 | I8-98078 098-0 | BRACKET; MAG VLV, EXH BRAKE | 1 | 1103- | A | |||
| 92 | I0-28651 030-0 | BOLT; MAG VLV | 2 | 1103- | A | M10X30 FLANGE | ||
| 88 | I9-99204 513-0 | PLUG | 1 | 1103- | A | PT1/4 | ||
| 86 | I1-82563 871-2 | VALVE; MAG, EXH BRK | 1 | 1103- | A | |||
| 87 | I1-09656 586-1 | CONNECTOR | 1 | 1103- | A | (B) M12 & PT1/4 3WAY |
