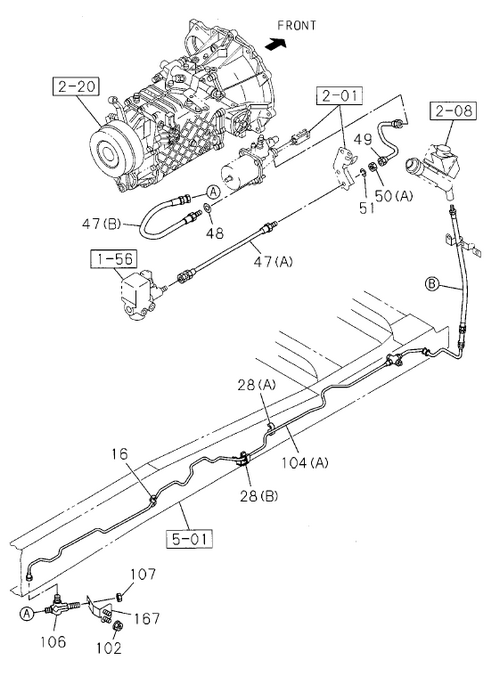

| 49 |
I1-49124 782-A |
|
PIPE; AIR, FLEX HOSE TO CLU BOOSTER |
1 |
1103- |
|
A |
L=207 |
| 23 |
I1-09332 130-0 |
|
GROMMET; CLU PIPE |
1 |
1103- |
|
A |
ID=15 OD=20 1=17.5 |
| 49 |
I1-49124 782-A |
A |
PIPE; AIR, FLEX HOSE TO CLU BOOSTER |
1 |
1103- |
|
A |
L=207 |
| 28 |
I1-09709 274-1 |
|
CLIP; OIL PIPE |
3 |
1103- |
|
A |
(A) ID=6.35 & 10.0 |
| 50 |
I9-09840 280-0 |
|
NUT; UNION |
1 |
1103- |
|
A |
( A) M12 |
| 47 |
I1-09363 801-0 |
|
HOSE; FLEX, CLU CONT |
1 |
1103- |
|
A |
(A) L=720 |
| 102 |
I7-05110 010-A |
C |
NUT; FLEX HOSE, CLU CONT |
2 |
1103- |
|
A |
M10 FLANGE |
| 16 |
I1-09709 278-1 |
|
CLIP; FLEX HOSE |
1 |
1103- |
|
A |
ID=10 & 12 |
| 106 |
I1-09654 059-2 |
|
UNION; OIL PIPE |
1 |
1103- |
|
A |
M12 2WAY |
| 47 |
I8-98072 346-A |
|
HOSE; FLEX, CLU CONT |
1 |
1103- |
|
A |
(B) L=440 |
| 104 |
I8-98162 742-A |
A |
PIPE; 0IL, FLEX HOSE TO CONNECTOR |
1 |
1103- |
|
A |
(A) L=2683 |
| 51 |
I0-91510 512-0 |
|
WASHER; LK |
1 |
1103- |
|
A |
ID=12.2 |
| 47 |
I8-98072 346-A |
A |
HOSE; FLEX, CLU CONT |
1 |
1103- |
|
A |
(B) L=440 |
| 107 |
I0-91111 512-0 |
|
NUT; UNION, OIL PIPE |
1 |
1103- |
|
A |
M12 |
| 48 |
I9-09571 410-0 |
|
GASKET; FLEX HOSE, CLU CONT |
2 |
1103- |
|
A |
ID=10.2 OD=16.0 |
| 50 |
I0-91111 512-0 |
|
NUT; UNION |
1 |
1103- |
|
A |
(B) M12 |

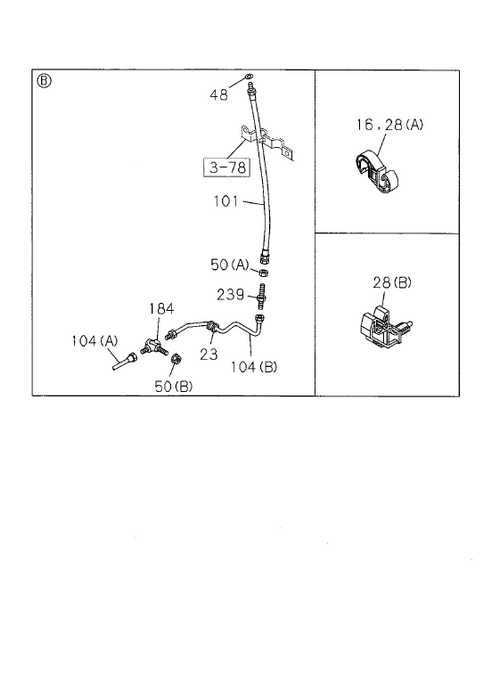

| 239 |
I0-92113 306-0 |
|
UNION; CLU HOSE |
1 |
1103- |
|
A |
L=66.5 |
| 101 |
I8-98072 346-A |
A |
HOSE; FLEX, OIL PIPE TO OIL PIPE |
1 |
1103- |
|
A |
L=440 |
| 184 |
I8-98150 865-0 |
|
UNION; FLEX |
1 |
1103- |
|
A |
|
| 104 |
I8-98162 742-A |
|
PIPE; 0IL, FLEX HOSE TO CONNECTOR |
1 |
1103- |
|
A |
(A) L=2683 |
| 167 |
I8-98086 811-1 |
|
BRACKET; UNION |
1 |
1103- |
|
A |
HOSE |
| 101 |
I8-98072 346-A |
|
HOSE; FLEX, OIL PIPE TO OIL PIPE |
1 |
1103- |
|
A |
L=440 |
| 102 |
I7-05110 010-A |
|
NUT; FLEX HOSE, CLU CONT |
2 |
1103- |
|
A |
M10 FLANGE |
| 104 |
I8-98067 058-A |
A |
PIPE; 0IL, FLEX HOSE TO CONNECTOR |
1 |
1103- |
|
A |
(B) L=336 |
| 104 |
I8-98067 058-A |
|
PIPE; 0IL, FLEX HOSE TO CONNECTOR |
1 |
1103- |
|
A |
(B) L=336 |
| 28 |
I1-09701 247-1 |
|
CLIP; OIL PIPE |
1 |
1103- |
|
A |
(B) ID=6.35 |
