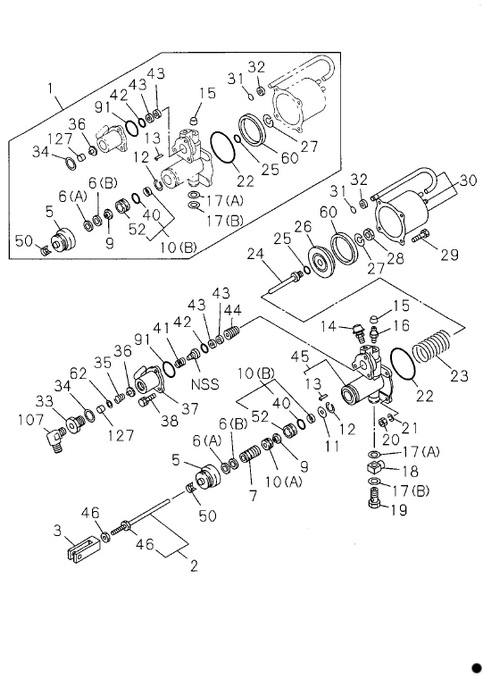

| 29 |
I1-31829 015-0 |
|
BOLT; END PLATE TO SHELL, CLU BOOSTER |
4 |
1103- |
|
A |
|
| 11 |
I1-31829 105-0 |
|
WASHER; PISTON, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 60 |
I1-31829 535-0 |
|
GASKET; SHELL, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 37 |
I1-31811 146-0 |
|
BODY; UPR, VLV, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 15 |
I9-83335 044-0 |
|
PROTECTOR; END PLATE, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 44 |
I1-31821 087-0 |
|
PISTON; UPR VLV, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 10 |
I1-31829 108-0 |
|
RETAINER; PISTON, CLU BOOSTER |
1 |
1103- |
|
A |
( A) |
| 1 |
I1-31829 605-0 |
|
REPAIR KIT; CLU BOOSTER |
1 |
1103- |
|
A |
|
| 24 |
I1-31829 112-0 |
|
ROD; PUSH, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 7 |
I1-31821 064-0 |
|
P i STON; CLU BOOSTER |
1 |
1103- |
|
A |
|
| 52 |
I9-83315 118-0 |
|
SEAL; OIL, END PLATE, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 62 |
I1-31829 489-0 |
|
RETAINER; POPPET |
1 |
1103- |
|
A |
|
| 26 |
I1-31821 083-0 |
|
PISTON; SHELL, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 31 |
I1-31829 113-0 |
|
GASKET; SHELL, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 13 |
I1-31829 109-0 |
|
PIN; SPR |
1 |
1103- |
|
A |
|
| 2 |
I1-31824 251-0 |
|
ROD; PUSH, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 25 |
I1-09623 321-0 |
|
GASKET; PUSH ROD, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 22 |
I1-09623 327-0 |
|
GASKET; END PLATE TO SHELL, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 6 |
I1-31829 033-0 |
|
GASKET PISTON CUP, CLU BOOSTER |
1 |
1103- |
|
A |
( A) |
| 30 |
I1-31811 123-0 |
|
SHELL; CYL, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 20 |
I0-91110 508-0 |
C |
NUT; END PLATE TO SHELL, CLU BOOSTER |
4 |
1103-1109 |
|
A |
|
| 20 |
I0-91110 508-0 |
|
NUT; END PLATE TO SHELL, CLU BOOSTER |
4 |
1110- |
|
A |
|
| 14 |
I1-31829 564-0 |
|
COVER; EXH, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 3 |
I1-31829 186-1 |
|
CLEV I S; PUSH ROD, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 35 |
I1-31829 537-0 |
|
SPRING; POPPET VLV, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 10 |
I1-31829 107-0 |
|
RETAINER; PISTON, CLU BOOSTER |
1 |
1103- |
|
A |
(B) |
| 43 |
I1-31829 060-0 |
|
GASKET; UPR VLV, CLU BOOSTER |
2 |
1103- |
|
A |
|
| 18 |
I1-89960 049-6 |
C |
CONNECTOR; PLATE, CLU BOOSTER END |
1 |
1103-1109 |
|
A |
|
| 17 |
I9-83331 209-0 |
|
GASKET; CONN CLU BOOSTER |
1 |
1110- |
|
A |
(A) |
| 32 |
I1-31829 114-0 |
|
BUSHING; SHELL, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 40 |
I1-31829 037-0 |
|
GASKET; PISTON, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 21 |
I0-91510 508-0 |
|
WASHER; PLATE TO SHELL, CLU BOOSTER END |
4 |
1110- |
|
A |
18=8.2 |
| 107 |
I1-09650 430-0 |
|
CONNECTOR; ELBOW |
1 |
1110- |
|
A |
|
| 6 |
I1-31829 032-0 |
|
GASKET PISTON CUP, CLU BOOSTER |
1 |
1103- |
|
A |
(B) |
| 36 |
I1-31829 536-0 |
|
VALVE POPPET,; CLU BOOSTER |
1 |
1103- |
|
A |
|
| 12 |
I9-83315 315-0 |
|
RING; RET, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 46 |
I1-31824 126-0 |
|
NUT; PUSH ROD, CLU BOOSTER |
2 |
1103- |
|
A |
|
| 28 |
I9-88510 365-0 |
|
NUT; PUSH ROD, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 91 |
I1-31829 103-0 |
|
GASKET; CLU BOOSTER |
1 |
1103- |
|
A |
|
| 27 |
I1-31829 111-0 |
|
SPRING; CLU BOOSTER |
1 |
1103- |
|
A |
|
| 107 |
I1-09650 430-0 |
C |
CONNECTOR; ELBOW |
1 |
1103-1109 |
|
A |
|
| 41 |
I1-31829 420-0 |
|
SPRING; DIAPH, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 1 |
I6-31829 605-0 |
|
REPAIR KIT; CLU BOOSTER |
1 |
1103- |
|
A |
(IADG) |
| 16 |
I9-83331 704-0 |
|
PLUG; END PLATE, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 38 |
I1-44519 022-0 |
|
SCREW; UPR VLV TO END PLATE, CLU BOOSTE |
3 |
1103- |
|
A |
|
| 21 |
I0-91510 508-0 |
C |
WASHER; PLATE TO SHELL, CLU BOOSTER END |
4 |
1103-1109 |
|
A |
18=8.2 |
| 5 |
I1-31829 503-0 |
|
GUARD; PISTON, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 9 |
I1-31829 003-0 |
|
GASKET; PISTON CUP, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 19 |
I9-83315 047-0 |
|
BOLT; EYE, END PLATE, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 34 |
I1-31829 053-0 |
|
GASKET; CONN CLU BOOSTER |
1 |
1103- |
|
A |
|
| 50 |
I1-31829 599-0 |
|
CLAMP; PISTON GUARD, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 127 |
I1-31829 495-0 |
|
FILTER; POPPET |
1 |
1103- |
|
A |
|
| 17 |
I9-83331 209-0 |
C |
GASKET; CONN CLU BOOSTER |
1 |
1103-1109 |
|
A |
(A) |
| 17 |
I9-09920 268-0 |
|
GASKET; CONN CLU BOOSTER |
1 |
1103- |
|
A |
(B) |
| 23 |
I1-31829 358-0 |
|
SPRING; SHELL, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 18 |
I1-89960 049-6 |
|
CONNECTOR; PLATE, CLU BOOSTER END |
1 |
1110- |
|
A |
|
| 33 |
I1-31829 212-0 |
|
CONNECTOR; UPR, VLV, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 45 |
I1-31811 144-0 |
|
PLATE; END, CLU BOOSTER |
1 |
1103- |
|
A |
|
| 38 |
I1-44519 022-0 |
C |
SCREW; UPR VLV TO END PLATE, CLU BOOSTE |
3 |
1103- |
|
A |
|
| 42 |
I1-31829 143-0 |
|
GASKET; FITTING, CLU BOOSTER |
1 |
1103- |
|
A |
|
