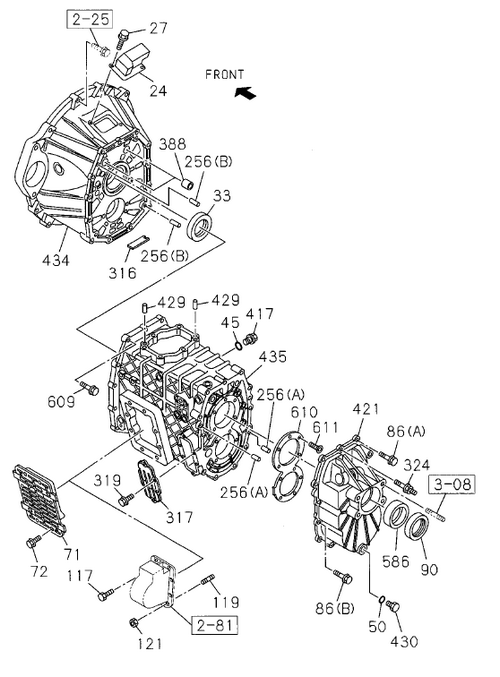

2-20 | PURL TRANSMISSION ASM AND CASE I2-20
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 435 | I8-97382 868-1 | CASE; TRANS | 1 | 1103- | A | |||
| 90 | I8-97253 551-1 | SEAL; OIL, RR COVER ALSO INCLUDED IN GASKET SET(M/ | 1 | 1103- | A | |||
| 421 | I8-97238 934-5 | COVER; RR, TRANS | 1 | 1103- | A | |||
| 117 | I8-98044 944-0 | BOLT; PTO FIX | 6 | 1103- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE | ||

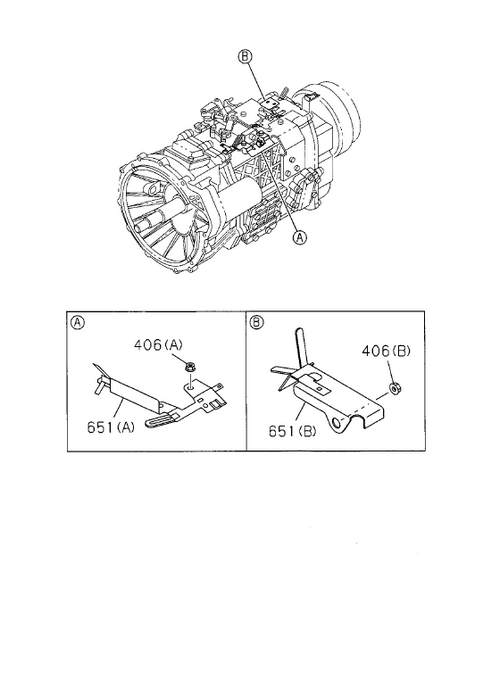

| 651 | I8-98044 568-1 | BRACKET; T/M HARNESS | 1 | 1103- | A | (B) | ||
| 434 | I8-97382 931-1 | HOUSING; CLU | 1 | 1103- | A | |||
| 121 | I7-05110 010-A | NUT; PTO FIX | 2 | 1103- | A | TRANSMISSION SIDE PTO WO/LEVER ( SH5 ) M10 FLANGE | ||
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/ | 1 | 1103- | A | ID=17 | ||
| 421 | I8-97238 934-5 | COVER; RR, TRANS | 1 | 1103- | A | |||
| 611 | I8-97365 354-0 | SCREW | 10 | 1103- | A | M10X27 TORQUES | ||
| 121 | I7-05110 010-A | NUT; PTO FIX | 2 | 1103- | A | TRANSMISSION SIDE PTO WO/LEVER ( SH5 ) M10 FLANGE | ||
| 388 | I8-97241 326-2 | BUSHING; CLU HSG | 2 | 1103- | A | |||
| 406 | I7-05110 010-A | NUT; BRKT | 1 | 1103- | A | (B) M10 FLANGE | ||
| 72 | I8-98014 142-0 | BOLT; SIDE COVER | 8 | 1103- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE | ||
| 71 | I8-97252 624-2 | COVER; SIDE, TRANS CASE | 1 | 1103- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 430 | I8-97365 374-0 | PLUG; 0IL DRAIN | 1 | 1103- | A | |||
| 610 | I8-97241 314-2 | RETAINER; BRG | 1 | 1103- | A | |||
| 586 | I8-97253 108-0 | BEARING; NEEDLE | 1 | 1103- | A | |||
| 651 | I8-97609 800-3 | BRACKET; T/M HARNESS | 1 | 1110- | A | ( A) | ||
| 256 | I8-97135 423-0 | PIN; KNOCK | 2 | 1103- | A | (B) OD=10 L=20 | ||
| 324 | I8-97365 379-0 | STUD; RR COVER | 1 | 1103- | A | M10X15, M10X40 L=65 HSG | ||
| 33 | I8-97253 550-0 | SEAL; 0IL, FRT COVER, T/M | 1 | 1103- | A | |||

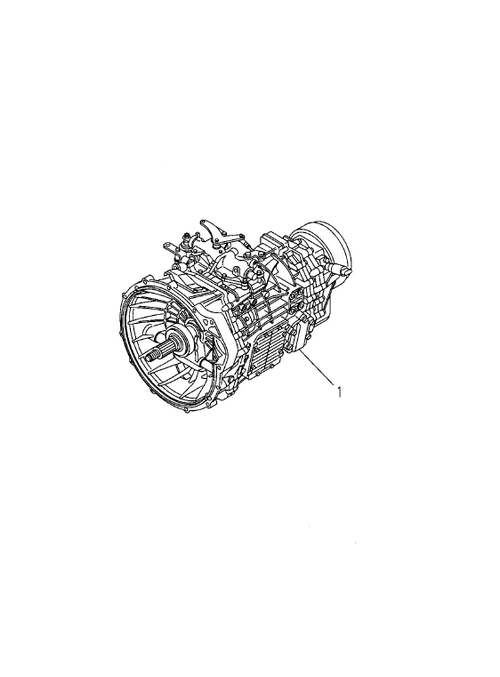

| 1 | I8-98171 396-0 | TRANSMISSION ASM; MANUAL | 1 | 1103- | A | EXC. TRANSMISSION SIDE PTO W0/LEVER(SH5) | ||
| 609 | I0-28151 040-0 | BOLT; HSG TO CASE | 3 | 1103- | A | M10X40 FLANGE | ||
| 27 | I0-28050 812-A | BOLT; COVER TO CLU HSG | 2 | 1103- | A | M8X12 FLANGE | ||
| 119 | I0-44011 025-0 | STUD; PTO FIX | 2 | 1103- | A | TRANSMISSION SIDE PTO W0/LEVER(SH5) M10X25 L=40 | ||
| 317 | I8-97252 626-0 | COVER; CASE | 1 | 1103- | A | |||
| 417 | I8-98009 333-0 | PLUG; OIL FILLER, TRANS | 1 | 1103- | A | M20X10.5 | ||
| 86 | I8-97365 377-0 | BOLT; RR COVER | 2 | 1103- | A | (B) M10X40 FLANGE | ||
| 406 | I7-05110 010-A | NUT; BRKT | 1 | 1103- | A | (B) M10 FLANGE | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 1103- | A | |||
| 1 | I8-98171 396-0 | TRANSMISSION ASM; MANUAL | 1 | 1103- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 651 | I8-97609 800-3 | BRACKET; T/M HARNESS | 1 | 1103-1109 | A | ( A) | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 1103- | A | OD=10 L=20 | ||
| 24 | I1-31131 041-0 | COVER; CHECK HOLE, DUST | 1 | 1103- | A | |||
| 406 | I0-91180 108-0 | NUT; BRKT | 2 | 1103- | A | (A) M8 FLANGE | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T | 1 | 1103- | A | ID=17 | ||
| 86 | I0-28151 040-0 | BOLT; RR COVER | 10 | 1103- | A | (A) M10X40 FLANGE | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 1103- | A | (A) ID=6 L=12 | ||
| 319 | I0-28050 820-0 | BOLT; COVER | 6 | 1103- | A | M8X20 FLANGE |
