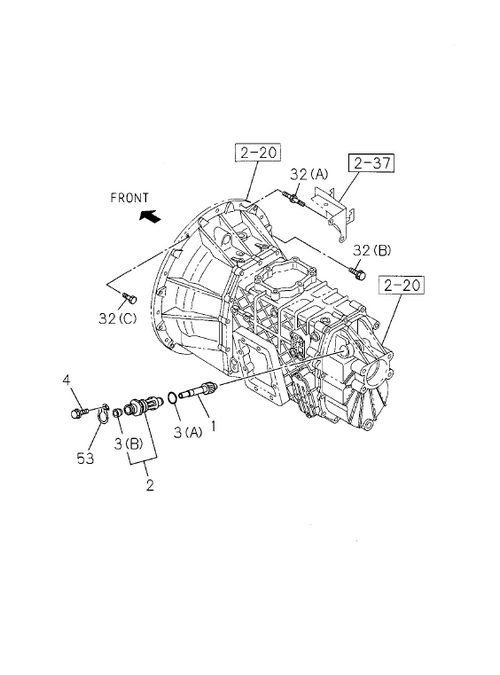

2-25 | SPEEDOMETER DRIVEN GEAR
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I0-28650 820-0 | BOLT; RET, DRIVEN GEAR | 1 | 1103- | A | M8X20 FLANGE IDN | ||
| 32 | I0-28051 045-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 6 | 1110- | A | (C) M10X45 FLANGE | ||
| 1 | I8-97253 563-1 | GEAR; DRIVEN SPD | 1 | 1103- | A | 7=12 | ||
| 3 | I8-97131 328-1 | GASKET; BUSHING | 1 | 1103- | A | ALSO INCLUDED IN GASKET SET( M/T) . (B) NOK | ||
| 32 | I8-98010 335-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 1103- | A | (A) M10X20 , M10X45 L=75 | ||
| 3 | I8-97075 755-0 | GASKET; BUSHING | 1 | 1110- | A | ALSO INCLUDED IN GASKET SET( M/T) . (A) | ||
| 32 | I8-97365 449-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 1302- | A | (B) M10X55 FLANGE | ||
| 30 | I8-94152 902-0 | WASHER; PL,TRANS | 2 | 1302- | A | ID=11 OD=24 | ||
| 53 | I8-98046 217-0 | PLATE; LOCK, DRIVEN GEAR | NULL | 1103- | 11 | NULL | A | |
| 2 | I8-97253 125-0 | BUSHING; DRIVEN GEAR, SPEEDOMETER | 1 | 1103- | A | MARK "12,13,14,15" | ||
| 3 | I8-97075 755-0 | C | GASKET; BUSHING | 1 | 1103-1109 | A | ALSO INCLUDED IN GASKET SET( M/T) . (A) | |
| 32 | I0-28151 050-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 1103- | A | (B) M10X50 FLANGE | ||
| 32 | I0-28051 045-0 | C | BOLT; CLU HSG TO FLYWHEEL HSG | 6 | 1103-1109 | A | (C) M10X45 FLANGE |
