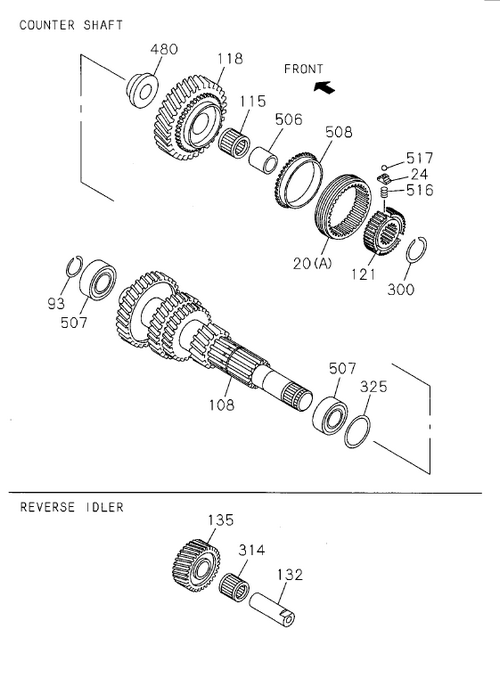

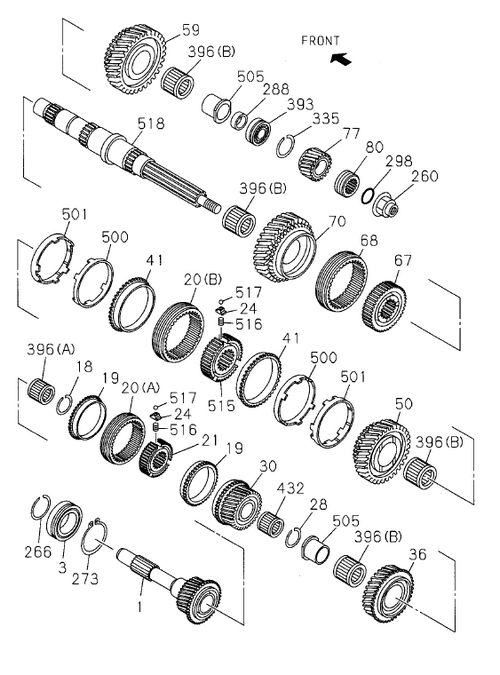

2-26 | MANUAL TRANSMISSION GEAR
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 266 | I8-97286 915-0 | RING; SNAP, BRG INNER | 1 | 1103- | A | |||
| 506 | I8-97253 120-1 | COLLAR; 6TH, COUNTER | 1 | 1103- | A | |||
| 300 | I8-97288 620-0 | RING; SNAP, COUNTER SHAFT, RR END | 1 | 1103- | A | ID=33.2 T=1.9 | ||
| 335 | I8-97254 720-0 | RING; SNAP, BEARING | 1 | 1103- | A | |||
| 115 | I8-97253 113-0 | BEARING; NEEDLE, 6TH, COUNTER | 1 | 1103- | A | |||
| 298 | I1-09623 379-0 | GASKET; MAINSHAFT | 1 | 1103- | A | ID=35.7 T=5 | ||
| 19 | I8-97241 306-1 | RING; BLOCK, 4TH & 5TH | 2 | 1103- | A | Z=45 | ||
| 80 | I8-97253 555-0 | GEAR; SPD DRIVE | 1 | 1103- | A | Z=4 | ||
| 93 | I8-97254 735-0 | RING; SNAP, COUNTER FRT BRG | 1 | 1103- | A | ID=34.4 T=1.9 | ||
| 325 | I8-97306 186-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.26 | ||
| 396 | I8-97253 099-1 | BEARING; NEEDLE, MAINSHAFT | 1 | 1103- | A | (A) | ||
| 77 | I8-97241 264-0 | GEAR; 6TH, MAIN SHAFT | 1 | 1103- | A | Z=18 | ||
| 67 | I8-97255 184-1 | HUB; CLU, 1ST TO REV | 1 | 1103- | A | |||
| 118 | I8-97241 245-0 | GEAR; 6TH, COUNTER | 1 | 1103- | A | Z=46 | ||
| 135 | I8-97241 292-2 | GEAR; REV IDLER | 1 | 1103- | A | Z=26 | ||
| 501 | I8-97241 311-1 | RING; INSIDE, 3RD & 2ND | 2 | 1103- | A | |||
| 505 | I8-97253 119-2 | COLLAR; 3RD & REV | 2 | 1103- | A | |||
| 3 | I8-97253 097-1 | BEARING; TOP GEAR SHAFT | 1 | 1103- | A | |||
| 518 | I8-97253 115-3 | SHAFT; MAIN, 5TH & 6TH SPEED | 1 | 1103- | A | Z=26-42-23 | ||
| 507 | I8-97253 106-0 | BEARING; COUNTER SHAFT, FRT & RR | 2 | 1103- | A | |||
| 432 | I8-97253 111-0 | BEARING; NEEDLE, 4TH | 1 | 1103- | A | NSK | ||
| 121 | I8-97241 301-2 | HUB; CLU, 6TH | 1 | 1103- | A | |||
| 108 | I8-98249 483-0 | SHAFT; COUNTER | 1 | 1103- | A | Z=46-37-27-21 | ||
| 314 | I8-97253 114-0 | BEARING; NEEDLE, REV GEAR | 1 | 1103- | A | NSK | ||
| 325 | I8-97252 656-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.38 | ||
| 325 | I8-97306 187-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.32 | ||
| 70 | I8-97254 889-0 | GEAR; 1ST, MAIN SHAFT | 1 | 1103- | A | Z=45 | ||
| 1 | I8-97371 089-0 | SHAFT; TOP GEAR, TRANS | 1 | 1103- | A | Z=25 | ||
| 59 | I8-97254 182-0 | GEAR; REV MAIN SHAFT | 1 | 1103- | A | Z=45 | ||
| 68 | I1-33262 175-1 | SLEEVE; 1ST TO REV | 1 | 1103- | A | |||
| 325 | I8-97257 621-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.98 | ||
| 24 | I8-97241 313-1 | BLOCK; INDEX SYN | 9 | 1103- | A | |||
| 132 | I8-97252 655-0 | SHAFT; REV | 1 | 1103- | A | |||
| 28 | I8-97254 743-0 | RING; SNAP, 3RD GEAR | 1 | 1103- | A | ID=46.5 T=1.8 | ||
| 108 | I8-98249 483-0 | SHAFT; COUNTER | 1 | 1401- | A | |||
| 325 | I8-97252 658-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.50 | ||
| 93 | I8-97254 741-0 | RING; SNAP, COUNTER FRT BRG | 1 | 1103- | A | ID=34.4 T=2.3 | ||
| 396 | I8-97253 110-0 | BEARING; NEEDLE, MAINSHAFT | 4 | 1103- | A | (B) | ||
| 325 | I8-97252 657-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.44 | ||
| 300 | I8-97365 616-0 | RING; SNAP, COUNTER SHAFT, RR END | 1 | 1103- | A | ID=33.2 T=1.6 | ||
| 300 | I8-97288 618-0 | RING; SNAP, COUNTER SHAFT, RR END | 1 | 1103- | A | ID=33.2 T=1.7 | ||
| 325 | I8-97306 185-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.20 | ||
| 30 | I8-97241 228-0 | GEAR; 4TH, MAIN SHAFT | 1 | 1103- | A | Z=29 | ||
| 325 | I8-97252 659-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | I0-70 T=1.56 | ||
| 21 | I8-97241 299-2 | HUB; CLU, 4TH & 5TH | 1 | 1103- | A | |||
| 480 | I8-97253 122-1 | WASHER; THRUST, 6TH | 1 | 1103- | A | |||
| 288 | I8-97252 941-0 | SPACER; BRG, MAINSHAFT | 1 | 1103- | A | |||
| 50 | I8-97241 236-1 | GEAR; 2ND, MAIN SHAFT | 1 | 1103- | A | Z=43 | ||
| 515 | I8-97239 155-2 | HUB; CLU, 1ST & REV, 2ND & 3RD | 1 | 1103- | A | |||
| 273 | I8-97254 609-0 | RING; SNAP, BRG OUTER | 1 | 1103- | A | |||
| 325 | I8-97252 661-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.68 | ||
| 260 | I8-97360 410-0 | NUT; MAINSHAFT END | 1 | 1103- | A | M27 N=25 | ||
| 41 | I8-97241 305-2 | RING; BLOCK, 2ND & 3RD | 2 | 1103- | A | Z=54 | ||
| 325 | I8-97252 665-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.92 | ||
| 325 | I8-97252 663-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.80 | ||
| 516 | I8-97305 803-1 | SPRING; SYNCHRO, INDEX | 9 | 1103- | A | |||
| 20 | I8-97241 295-2 | SLEEVE | 1 | 1103- | A | (B) | ||
| 36 | I8-98168 524-0 | GEAR; 3RD, MAIN SHAFT | 1 | 1103- | A | Z=35 | ||
| 20 | I8-98258 279-0 | SLEEVE | 2 | 1103- | A | ( A) | ||
| 393 | I8-97253 104-0 | BEARING; MAINSHAFT END | 1 | 1103- | A | |||
| 508 | I8-97241 306-1 | RING; BLOCK, 6TH | 1 | 1103- | A | Z=45 | ||
| 93 | I8-97254 738-0 | RING; SNAP, COUNTER FRT BRG | 1 | 1103- | A | ID=34.4 T=2.1 | ||
| 300 | I8-97288 619-0 | RING; SNAP, COUNTER SHAFT, RR END | 1 | 1103- | A | ID=33.2 T=1.8 | ||
| 500 | I8-97241 307-1 | RING; OUTSIDE, 3RD & 2ND | 2 | 1103- | A | |||
| 325 | I8-97252 660-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.62 | ||
| 325 | I8-97252 662-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.74 | ||
| 517 | I8-97252 935-0 | BALL; SYNCHRO, INDEX | 9 | 1103- | A | |||
| 18 | I8-97256 855-0 | RING; SNAP, CLU HUB | 1 | 1103- | A | ID=35.7 T=1.8 | ||
| 325 | I8-97252 664-0 | SHIM; COUNTER SHAFT BRG | 1 | 1103- | A | ID=70 T=1.86 |
