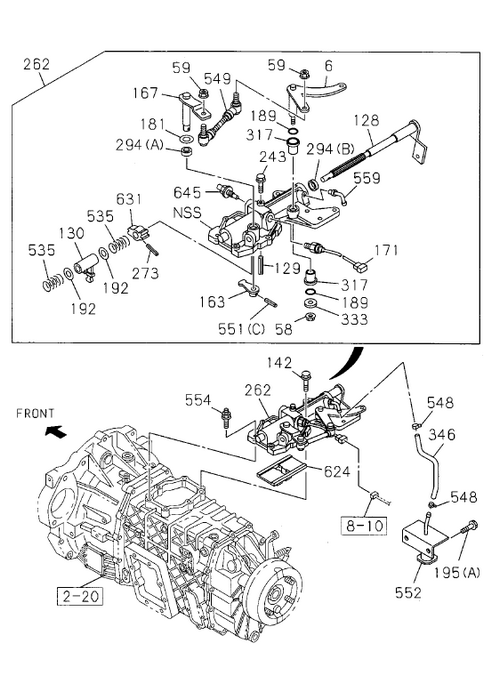

2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 243 | I1-33739 842-0 | BOLT; COVER | 1 | 1103- | A | M6X12 FLANGE | ||
| 535 | I8-98015 113-0 | SPRING; LEVER | 2 | 1903- | AI | |||
| 391 | I8-97300 273-1 | PLUG; SW HOLE | 1 | 1103- | A | |||
| 551 | I8-97241 340-0 | PIN; SPRING | 1 | 1103- | A | (B) L=20 | ||
| 181 | I8-97367 327-0 | WASHER; PL, SELECT LEVER | 1 | 1103- | A | |||
| 234 | I0-91800 618-0 | RING; SNAP | 1 | 1103- | A | ID=16.5 | ||
| 554 | I8-97365 378-0 | STUD; CONT BOX | 2 | 1103- | A | M8X15,M8X25 L=49 | ||
| 50 | I8-97241 324-1 | ARM; SHIFT, 6TH | 1 | 1103- | A | |||
| 130 | I8-97306 647-0 | LEVER; SHIFT, INTERNAL | 1 | 1103- | A | |||
| 559 | I8-97358 318-0 | PIPE; BREATHER | 1 | 1103- | A | |||
| 49 | I8-97362 738-1 | ARM; SHIFT, 4TH & 5TH | 1 | 1103- | A | |||
| 551 | I8-97011 596-2 | PIN; SPRING | 5 | 1103- | A | (A) L=32 | ||
| 25 | I8-97362 737-1 | ARM; SHIFT, 2ND & 3RD | 1 | 1103- | A | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1401- | A | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1103-1312 | A | |||
| 189 | I1-09623 594-0 | GASKET; SELECT LEVER, CONT BOX | 2 | 1103- | A | |||
| 629 | I8-97241 345-1 | BRIDGE; LEVER | 1 | 1103- | A | |||
| 262 | I8-98240 990-0 | BOX ASM; SHIFT CONT | 1 | 1103-1312 | A | |||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 1103- | A | M8X22 FLANGE | ||
| 195 | I0-28751 020-0 | BOLT | 2 | 1103- | A | ( A) M1OX2O FLANGE | ||
| 178 | I9-09567 113-0 | GASKET; PLUG | 1 | 1103- | A | ALSO INCLUDED IN GASKET SET(M/T). | ||
| 195 | I8-97365 375-0 | BOLT | 2 | 1103- | A | (B) M10X28 FLANGE REAMER | ||
| 628 | I8-97241 327-1 | BLOCK; SHIFT, LOW, REV & 6TH | 2 | 1103- | A | |||
| 624 | I8-97241 317-3 | PLATE; INTER LOCK | 1 | 1103- | A | |||
| 346 | I8-98132 721-0 | HOSE; Al R | 1 | 1103- | A | |||
| 58 | I0-91180 110-0 | NUT | 1 | 1103- | A | M10 FLANGE | ||
| 381 | I0-28650 616-0 | BOLT | 1 | 1103- | A | 1A6X16 FLANGE | ||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 1103- | A | |||
| 128 | I8-98170 720-0 | LEVER; SHIFT, EXTERNAL | 1 | 1103- | A | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1403- | A | |||
| 372 | I8-97241 342-0 | LEVER; RELAY, 6TH | 1 | 1103- | A | |||
| 552 | I8-98132 718-0 | BRACKET | 1 | 1103- | A | |||
| 59 | I0-91180 108-0 | NUT | 2 | 1103- | A | M8 FLANGE | ||
| 262 | I8-98240 990-0 | BOX ASM; SHIFT CONT | 1 | 1401- | A | |||
| 548 | I8-94107 762-0 | CLIP; HOSE | 2 | 1103- | A | ID=8 | ||
| 631 | I8-98014 158-0 | STOPPER; SPRING | 1 | 1103- | A | |||
| 167 | I8-98021 489-0 | LEVER; SELECT, EXTERNAL | 1 | 1103- | A | |||
| 398 | I8-98242 173-1 | SWITCH; REV LAMP | 1 | 1401- | A | |||
| 294 | I8-97305 662-0 | SEAL; OIL, SELECT ALSO INCLUDED IN GASKET SET( M/T | 1 | 1103- | A | (A) | ||
| 192 | I8-97305 661-0 | WASHER; PL | 2 | 1103- | A | |||
| 549 | I8-98023 095-0 | ROD; LINK | 1 | 1103- | A | |||
| 1 | I8-97255 351-1 | ARM; SHIFT, 1ST & REV | 1 | 1103- | A | |||
| 273 | I8-97103 142-0 | PIN; SPR, STOPPER | 1 | 1103- | A | D=4.2 L=25 | ||
| 627 | I8-98119 293-0 | ROD; GEAR SHIFT, 6TH SUB | 1 | 1103- | A | |||
| 398 | I8-98324 878-0 | SWITCH; REV LAMP | 1 | 1103-1312 | A | |||
| 630 | I8-98019 536-0 | DETENT ASM | 4 | 1103- | A | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1401- | A | SWITCH; NEUTRAL W/O REV SW | ||
| 333 | I0-91610 710-0 | WASHER; PL, LEVER | 1 | 1103- | A | ID=10.5 | ||
| 171 | I8-98242 173-1 | SWITCH; NEUTRAL | 1 | 1401- | A | SWITCH; REV LAMP FOR REV SW | ||
| 625 | I8-97362 735-0 | ROD; GEAR SHIFT, 3RD LOW, REV, 2ND & | 1 | 1103- | A | |||
| 129 | I1-09748 031-0 | PIN; SPR, SHIFT | 1 | 1103- | A | D=4 | ||
| 294 | I8-97363 225-0 | SEAL; OIL, SELECT ALSO INCLUDED IN GASKET SET( M/T | 1 | 1103- | A | (B) | ||
| 535 | I8-97385 713-0 | SPRING; LEVER | 2 | 1103-1902 | AI | |||
| 645 | I8-98019 536-0 | DETENT ASM | 1 | 1103- | A | |||
| 163 | I8-97305 663-0 | LEVER; SELECT, INTERNAL | 1 | 1103- | A | |||
| 6 | I8-98014 157-1 | LEVER; RELAY | 1 | 1103- | A | |||
| 626 | I8-98107 548-0 | ROD; GEAR SHIFT, 4TH, 5TH & 6TH | 1 | 1103- | A | |||
| 551 | I1-09748 032-0 | PIN; SPRING | 1 | 1103- | A | (C) L=17 |
