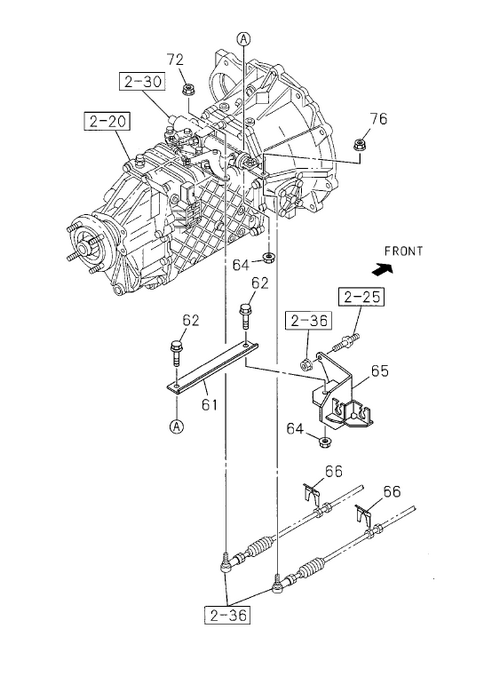

2-37 | MANUAL TRANSMISSION CONT; MISSION SIDE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 65 | I8-98167 239-0 | BRACKET; SHIFT TO SELECT, TRANS CONT | 1 | 1103- | A | |||
| 72 | I1-09440 049-0 | NUT; TRANS CONT, SELECT | 1 | 1103- | A | M8 FLANGE | ||
| 66 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 1103- | A | ID=22.2 | ||
| 62 | I0-28651 030-0 | BOLT; STAY | 2 | 1103- | A | M10X30 FLANGE | ||
| 64 | I7-05110 010-A | NUT; STAY | 2 | 1103- | A | M10 FLANGE | ||
| 64 | I7-05110 010-A | NUT; STAY | 2 | 1103- | A | M10 FLANGE | ||
| 61 | I1-33657 267-0 | STAY; BRKT, TRANS CONT | 1 | 1103- | A | |||
| 76 | I1-09440 049-0 | NUT; BALL JOINT, SELECT WI RE | 1 | 1103- | A | M8 FLANGE |
