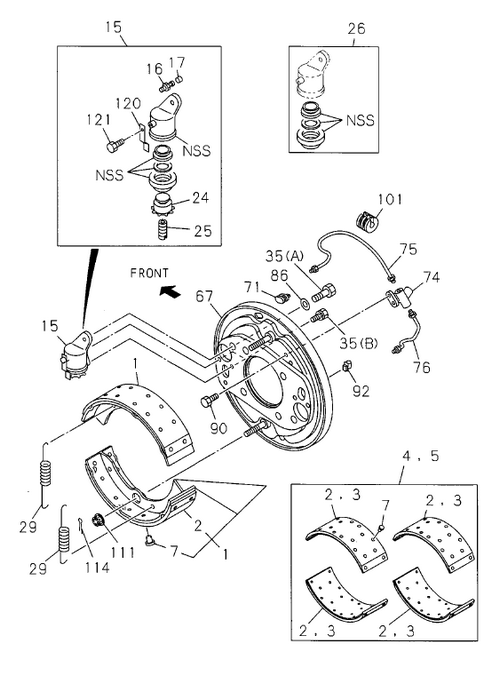

| 29 |
I1-09583 288-0 |
|
SPRING; RETURN, FRT BRK SHOE |
4 |
1103- |
|
A |
|
| 24 |
I1-47624 319-0 |
|
PISTON; FRT WHEEL CYL |
2 |
1103- |
|
A |
|
| 67 |
I1-47150 375-0 |
|
PLATE; BACK, FRT BRK |
1 |
1103- |
|
A |
|
| 74 |
I1-47631 070-0 |
|
CONNECTOR; FRT BRK |
1 |
1103-1109 |
|
A |
|
| 4 |
I6-88310 501-0 |
|
LINING SET; FRT BRK, STANDARD |
1 |
1103- |
|
A |
|
| 76 |
I1-47414 241-0 |
|
PIPE; OIL, BACKWARD, FRT BRK |
1 |
1103- |
|
A |
|
| 5 |
I1-88310 502-1 |
|
LINING SET; FRT BRK, OVER SIZE |
1 |
1103- |
|
A |
|
| 75 |
I1-47414 237-0 |
|
PIPE; OIL, FWD, FRT BRK |
1 |
1103- |
|
A |
|
| 26 |
I1-87830 679-0 |
|
CUP SET; FRT WHEEL CYL |
4 |
1103- |
|
A |
|
| 92 |
I9-09956 640-A |
|
GROMMET; ADJ, HOLE |
4 |
1103-1109 |
|
A |
|
| 121 |
I8-94128 727-0 |
|
SCREW; LK SPR FRT WHEEL CYL |
4 |
1103- |
|
A |
|
| 71 |
I1-09333 033-0 |
|
GROMMET; CHECK HOLE |
4 |
1103- |
|
A |
|
| 15 |
I1-47600 939-0 |
|
CYLINDER; WHEEL FRT BRK |
2 |
1103- |
|
A |
|
| 4 |
I1-88310 501-1 |
|
LINING SET; FRT BRK, STANDARD |
1 |
1103- |
|
A |
|
| 25 |
I1-47622 020-1 |
|
SCREW; ADJ, FRT WHEEL CYL |
2 |
1110- |
|
A |
LH THREAD |
| 24 |
I1-47624 318-0 |
|
PISTON; FRT WHEEL CYL |
2 |
1103- |
|
A |
|
| 111 |
I1-09440 002-0 |
|
NUT; FLANGE, SHOE HOLD |
NULL |
1103- |
|
A |
|
| 35 |
I5-09030 026-0 |
|
BOLT; FRT WHEEL CYL |
8 |
1110- |
|
A |
(B) M8X22 |
| 25 |
I1-47622 021-1 |
|
SCREW; ADJ, FRT WHEEL CYL |
2 |
1110- |
|
A |
RH THREAD |
| 74 |
I1-47631 071-0 |
|
CONNECTOR; FRT BRK |
1 |
1103-1109 |
|
A |
|
| 1 |
I1-47120 624-0 |
|
SHOE; BRK, FRT |
4 |
1103- |
|
A |
|
| 74 |
I1-47631 070-0 |
|
CONNECTOR; FRT BRK |
1 |
1110- |
|
A |
|
| 2 |
I1-47125 801-0 |
|
LINING; FRT BRK SHOE, STANDARD |
4 |
1103- |
|
A |
|
| 120 |
I1-47629 072-0 |
|
SPRING; LK, ADJ, FRT WHEEL CYL |
4 |
1103- |
|
A |
|
| 74 |
I1-47631 071-0 |
|
CONNECTOR; FRT BRK |
1 |
1110- |
|
A |
|
| 67 |
I1-47150 376-0 |
|
PLATE; BACK, FRT BRK |
1 |
1103- |
|
A |
|
| 25 |
I1-47622 020-1 |
|
SCREW; ADJ, FRT WHEEL CYL |
2 |
1103-1109 |
|
A |
LH THREAD |
| 101 |
I9-47461 158-0 |
|
PROTECTOR; OIL PIPE, FRT BRK |
2 |
1103- |
|
A |
|
| 35 |
I1-09000 365-0 |
|
BOLT; FRT WHEEL CYL |
4 |
1103- |
|
A |
(A) M14X30 |
| 76 |
I1-47414 242-0 |
|
PIPE; OIL, BACKWARD, FRT BRK |
1 |
1103- |
|
A |
|
| 7 |
I1-09732 029-0 |
|
RIVET; LINING, FRT BRK |
56 |
1103- |
|
A |
|
| 3 |
I1-47125 802-0 |
|
LINING; FRT BRK SHOE, OVER SIZE |
4 |
1103- |
|
A |
|
| 90 |
I5-09030 036-1 |
|
BOLT; CONNECTOR |
2 |
1103- |
|
A |
|
| 16 |
I8-98050 476-0 |
|
SCREW; BLEEDER, FRT BRK |
4 |
1103- |
|
A |
|
| 17 |
I8-98050 479-0 |
|
CAP; BLEEDER, FRT WHEEL CYL |
4 |
1103- |
|
A |
|
| 114 |
I9-09874 040-0 |
|
PIN; SPLIT, SHOE HOLD |
4 |
1103- |
|
A |
|
| 25 |
I1-47622 021-1 |
|
SCREW; ADJ, FRT WHEEL CYL |
2 |
1103-1109 |
|
A |
RH THREAD |
| 35 |
I5-09030 026-0 |
|
BOLT; FRT WHEEL CYL |
8 |
1103-1109 |
|
A |
(B) M8X22 |
| 15 |
I1-47600 938-0 |
|
CYLINDER; WHEEL FRT BRK |
2 |
1103- |
|
A |
|
| 75 |
I1-47414 238-0 |
|
PIPE; OIL, FWD, FRT BRK |
1 |
1103- |
|
A |
|
| 92 |
I9-09956 640-A |
|
GROMMET; ADJ, HOLE |
4 |
1110- |
|
A |
|
| 86 |
I0-91510 614-0 |
|
WASHER; LK, FRT WHEEL CYL |
4 |
1103- |
|
A |
ID=14.2 |
