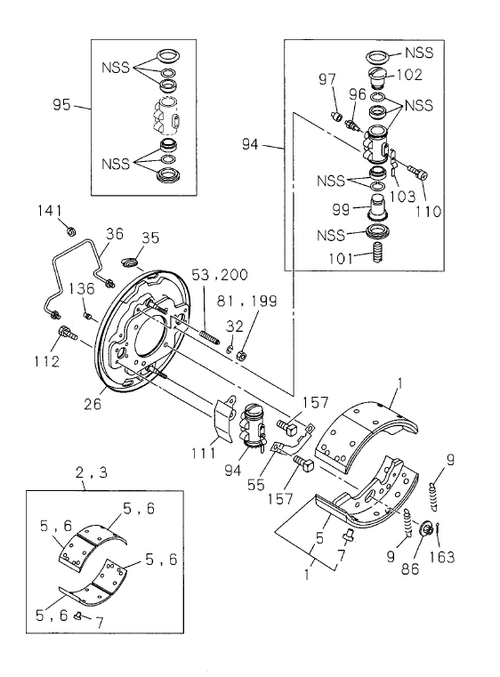

| 86 |
I1-09440 003-0 |
|
NUT; FLANGE |
4 |
1103- |
|
A |
|
| 53 |
I1-47162 050-0 |
|
BOLT; LOCK PLATE |
2 |
1103- |
|
A |
|
| 6 |
I1-47125 804-0 |
|
LINING; RR BRK SHOE, OVER SIZE |
8 |
1103- |
|
A |
|
| 112 |
I1-47159 232-0 |
|
BOLT; WHEEL CYL SETTING |
16 |
1103-1109 |
|
A |
M12 |
| 94 |
I1-47600 957-0 |
|
CYLINDER; WHEEL, RR BRK |
1 |
1103- |
|
A |
BACKWARD |
| 136 |
I9-09956 640-A |
|
GROMMET |
4 |
1110- |
|
A |
|
| 163 |
I9-09874 040-0 |
|
PIN; SPLIT, SHOE HOLD |
4 |
1103- |
|
A |
|
| 200 |
I1-47162 050-0 |
|
BOLT |
2 |
1103- |
|
A |
|
| 2 |
I6-88310 551-0 |
|
LINING SET; RR BRK, STANDARD |
2 |
1103- |
|
A |
|
| 35 |
I1-09333 033-0 |
|
GROMMET; CHECK HOLE |
4 |
1103- |
|
A |
|
| 110 |
I8-94128 727-0 |
|
SCREW; LOCK SPRING, RR WHEEL CYL |
4 |
1103- |
|
A |
|
| 94 |
I1-47600 956-0 |
|
CYLINDER; WHEEL, RR BRK |
1 |
1103- |
|
A |
FORWARD |
| 94 |
I1-47600 959-0 |
|
CYLINDER; WHEEL, RR BRK |
1 |
1103- |
|
A |
BACKWARD |
| 136 |
I9-09956 640-A |
|
GROMMET |
4 |
1103-1109 |
|
A |
|
| 26 |
I1-47150 468-0 |
|
PLATE; BACK, RR BRK |
1 |
1103- |
|
A |
|
| 141 |
I9-47461 158-0 |
|
PROTECTOR; RR BRK PIPE |
2 |
1103- |
|
A |
|
| 1 |
I1-47120 626-0 |
|
SHOE; BRK, RR |
4 |
1103- |
|
A |
|
| 101 |
I1-47622 033-0 |
|
SCREW; ADJ, RR WHEEL CYL |
2 |
1103- |
|
A |
M22 LH THREAD |
| 102 |
I1-47624 311-0 |
|
PISTON; REAR WHEEL CYL |
4 |
1103- |
|
A |
|
| 95 |
I1-87830 770-0 |
|
CUP SET; RR WHEEL CYL |
4 |
1103- |
|
A |
|
| 97 |
I1-47619 009-0 |
|
CAP; BLEEDER RR WHEEL CYL |
2 |
1103- |
|
A |
IDN |
| 2 |
I1-88310 551-1 |
|
LINING SET; RR BRK, STANDARD |
2 |
1103- |
|
A |
|
| 55 |
I1-47139 064-0 |
|
PLATE; LK, RR WHEEL CYL |
4 |
1103- |
|
A |
|
| 199 |
I1-09400 100-0 |
|
NUT |
2 |
1103- |
|
A |
|
| 32 |
I0-91510 512-0 |
|
WASHER; LK |
4 |
1103- |
|
A |
19=12.2 |
| 111 |
I1-47159 103-0 |
|
COVER; WHEEL CYL |
4 |
1103- |
|
A |
|
| 26 |
I1-47150 467-0 |
|
PLATE; BACK, RR BRK |
1 |
1103- |
|
A |
|
| 157 |
I1-09060 015-0 |
|
BOLT; RR BRK SET |
12 |
1103- |
|
A |
M14X45 SQUARE HEAD |
| 9 |
I1-09583 271-0 |
|
SPRING; RETURN, BRK SHOE |
4 |
1103- |
|
A |
|
| 81 |
I1-09400 100-0 |
|
NUT |
2 |
1103- |
|
A |
|
| 112 |
I1-47159 232-0 |
|
BOLT; WHEEL CYL SETTING |
16 |
1110- |
|
A |
M12 |
| 94 |
I1-47600 958-0 |
|
CYLINDER; WHEEL, RR BRK |
1 |
1103- |
|
A |
FORWARD |
| 3 |
I1-88310 552-1 |
|
LINING SET; RR BRK, OVER SIZE |
2 |
1110- |
|
A |
|
| 101 |
I1-47622 034-0 |
|
SCREW; ADJ, RR WHEEL CYL |
2 |
1103- |
|
A |
M22 RH THREAD |
| 96 |
I1-47615 020-0 |
|
SCREW; BLEEDER, RR BRK |
2 |
1103- |
|
A |
|
| 99 |
I1-47624 310-0 |
|
PISTON; RR WHEEL CYL |
2 |
1103- |
|
A |
|
| 99 |
I1-47624 309-0 |
|
PISTON; RR WHEEL CYL |
2 |
1103- |
|
A |
|
| 7 |
I1-09732 029-0 |
|
RIVET; LINING, RR BRK |
96 |
1103- |
|
A |
|
| 5 |
I1-47125 803-0 |
|
LINING; RR BRK SHOE, STANDARD |
8 |
1103- |
|
A |
|
| 103 |
I1-47629 072-0 |
|
SPRING; LK, RR WHEEL CYL, ADJ |
4 |
1103- |
|
A |
|
| 36 |
I1-47421 815-0 |
|
PIPE; OIL, RR BRK |
2 |
1103- |
|
A |
|
