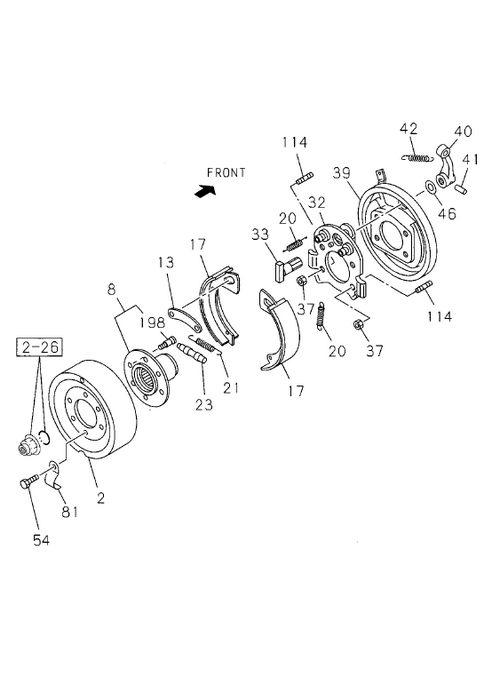

| 23 |
I9-46240 008-0 |
|
SCREW; ADJ, PARK ING BRK SHOE |
1 |
1103- |
|
A |
|
| 32 |
I1-46213 023-0 |
|
PLATE; SUPPORT, PARKING BRK |
1 |
1103- |
|
A |
|
| 81 |
I1-46219 018-0 |
|
COVER; CHECK HOLE, PARKING BRK |
2 |
1103- |
|
A |
|

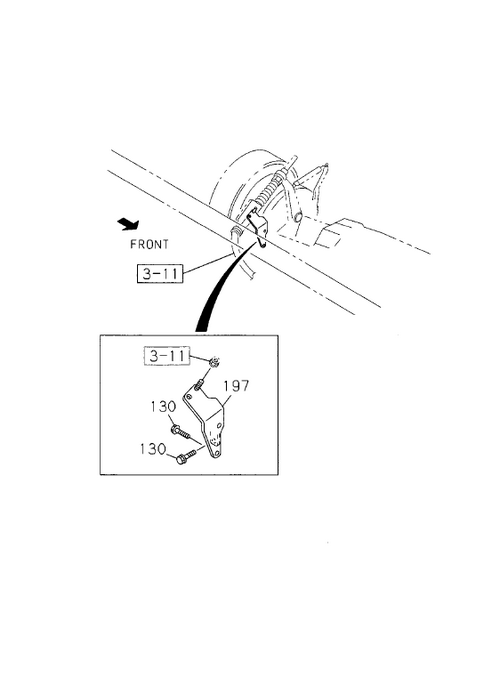

| 197 |
I8-98170 963-1 |
|
BRACKET; CENTER BRAKE CABLE |
1 |
1103- |
|
A |
|
| 46 |
I9-09855 367-0 |
|
WASHER; LEVER |
1 |
1103- |
|
A |
|
| 40 |
I1-46252 057-0 |
|
LEVER; CM/SHF, PARKING BRK |
1 |
1103- |
|
A |
|
| 130 |
I0-28151 025-0 |
|
BOLT; BRKT |
3 |
1103- |
|
A |
M10X25 FLANGE |
| 21 |
I1-09583 268-0 |
|
SPRING; RETURN, PARKING BRK SHOE |
1 |
1103- |
|
A |
|
| 8 |
I8-98171 007-0 |
|
FLANGE; PARKING BRK |
1 |
1103- |
|
A |
|
| 41 |
I9-09878 594-0 |
|
PIN; KNOCK, LEVER |
1 |
1103- |
|
A |
|
| 2 |
I1-46211 020-0 |
|
DRUM; PARK ING BRK |
1 |
1103- |
|
A |
|
| 42 |
I9-09942 592-0 |
|
SPRING; RETURN, LEVER |
1 |
1103- |
|
A |
|
| 39 |
I1-46213 115-0 |
|
COVER; DUST, PARKING BRK |
1 |
1103- |
|
A |
|
| 17 |
I1-46220 029-0 |
|
SHOE; PARKING BRK |
2 |
1103- |
|
A |
|
| 114 |
I8-97365 445-0 |
|
STUD; SUPPORT PLATE |
4 |
1103- |
|
A |
M14X22.5 L=42.5 |
| 13 |
I9-46239 003-0 |
|
BRACE; PARKING BRK |
1 |
1103- |
|
A |
|
| 33 |
I1-46251 070-0 |
|
SHAFT; CAM, PARKING BRK |
1 |
1103- |
|
A |
|
| 37 |
I8-97365 444-0 |
|
NUT; SUPPORT PLATE |
4 |
1103- |
|
A |
M14 FLANGE |
| 198 |
I8-98014 003-0 |
|
BOLT; KNURL |
4 |
1103- |
|
A |
M14X43 |
| 20 |
I9-09942 567-1 |
|
SPRING; RETURN, SECONDARY, PARKING BRK |
2 |
1103- |
|
A |
|
| 54 |
I0-50740 820-0 |
|
BOLT; COVER |
2 |
1103- |
|
A |
M8X20 W/LK WASHER |
