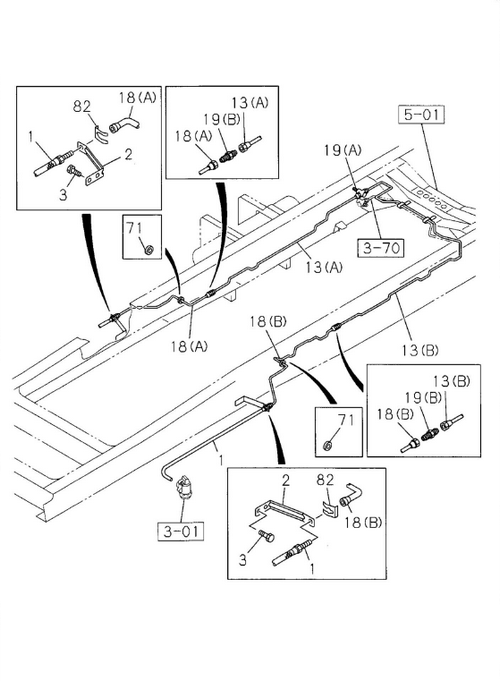

3-52 | BRAKE PIPING; OIL, FRONT
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98011 946-1 | BRACKET; FLEX HOSE, FRT BRK | 2 | 1103- | A | |||
| 13 | I8-98113 684-A | PIPE; OIL, UNION TO UNION | 1 | 1103- | A | (B) L=1891 | ||
| 13 | I8-98067 417-A | PIPE; OIL, UNION TO UNION | 1 | 1103- | A | (A) L=967 | ||
| 24 | I1-09400 029-0 | NUT; UNION, OIL PIPE | 1 | 1103- | A | M10 H=8 | ||
| 132 | I8-98178 437-A | PIPE; OIL, BRK, HYD UNIT | 1 | 1103- | A | L=1460 | ||
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1103- | A | ID=24 OD=30 T=17 | ||
| 18 | I8-98065 376-A | PIPE; 0IL, UNION HOSE | 1 | 1103- | A | (B) L=1016 | ||
| 132 | I8-98178 437-A | PIPE; OIL, BRK, HYD UNIT | 1 | 1103- | A | L=1460 | ||
| 18 | I8-98067 426-A | PIPE; 0IL, UNION HOSE | 1 | 1103- | A | (A) L=567 | ||
| 3 | I0-28650 825-0 | BOLT; BRKT, FLEX HOSE, FRT BRK | 4 | 1103- | A | M8X25 FLANGE IDN | ||
| 19 | I0-92107 005-0 | UNION; OIL PIPE | 2 | 1103- | A | (B) M10 STRAIGHT | ||
| 18 | I8-98067 426-A | PIPE; 0IL, UNION HOSE | 1 | 1103- | A | (A) L=567 | ||
| 13 | I8-98113 684-A | PIPE; OIL, UNION TO UNION | 1 | 1103- | A | (B) L=1891 | ||
| 82 | I8-97360 054-0 | PLATE; FLEX HOSE | 2 | 1103- | A | |||
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1103- | A | ID=24 OD=30 T=17 | ||
| 1 | I8-98172 789-0 | HOSE; FLEX, FRT BRK | 2 | 1103- | A | L=480 | ||
| 13 | I8-98067 417-A | PIPE; OIL, UNION TO UNION | 1 | 1103- | A | (A) L=967 | ||
| 18 | I8-98065 376-A | PIPE; 0IL, UNION HOSE | 1 | 1103- | A | (B) L=1016 | ||
| 19 | I8-98113 738-0 | UNION; OIL PIPE | 1 | 1103- | A | (A) |
