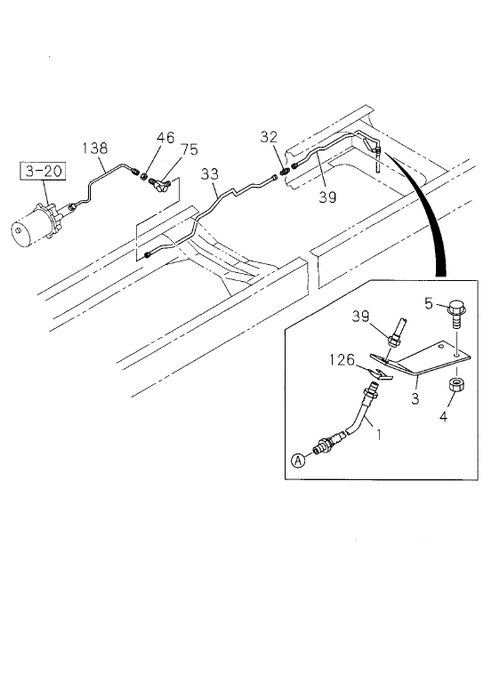

3-55 | BRAKE PIPING; OIL,REAR
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 126 | I8-97360 054-0 | CLIP; FLEX HOSE | 1 | 1103- | A | |||
| 138 | I8-98178 439-A | PIPE; HYDRAUL IC UNIT | 1 | 1103- | A | L=494 | ||

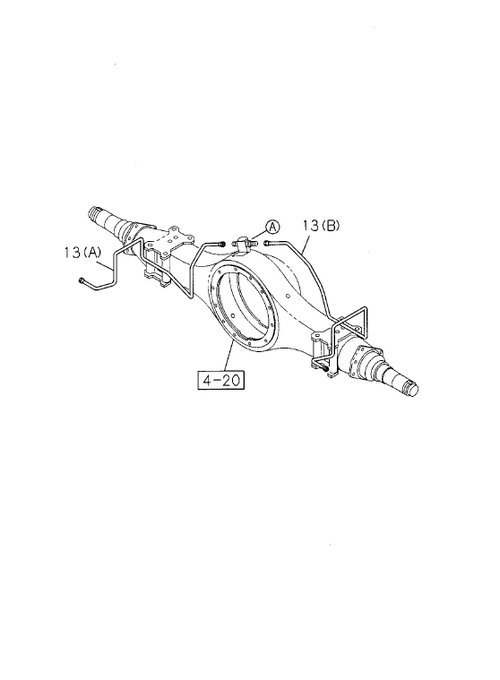

| 13 | I1-47427 106-A | PIPE; BRK, RR AXLE | 1 | 1103- | A | (B) L=847 | ||
| 39 | I8-98175 941-A | PIPE; 0IL, UNION HOSE TO RR FLEX | 1 | 1103- | A | L=2100 | ||
| 32 | I0-92107 005-0 | UNION; OIL PIPE | 1 | 1103- | A | M10 STRAIGHT | ||
| 5 | I0-28650 830-0 | BOLT; BRKT, FLEX HOSE, RR BRK | 2 | 1103- | A | M8X30 FLANGE | ||
| 3 | I8-98175 942-0 | BRACKET; FLEX HOSE, RR BRK | 1 | 1103- | A | |||
| 46 | I1-09400 029-0 | NUT; UNION, OIL | 1 | 1103- | A | M10 H=8 | ||
| 138 | I8-98178 439-A | PIPE; HYDRAUL IC UNIT | 1 | 1103- | A | L=494 | ||
| 1 | I8-98175 918-0 | HOSE; FLEX, RR BRK | 1 | 1103- | A | L=520 | ||
| 13 | I1-47427 105-A | PIPE; BRK, RR AXLE | 1 | 1103- | A | (A) L=675 | ||
| 4 | I0-91180 108-0 | NUT; BRKT, FLEX HOSE, RR BRK | 2 | 1103- | A | M8 FLANGE | ||
| 39 | I8-98175 941-A | PIPE; 0IL, UNION HOSE TO RR FLEX | 1 | 1103- | A | L=2100 | ||
| 75 | I8-98018 438-0 | UNION; OIL PIPE | 1 | 1103- | A | |||
| 33 | I8-98071 250-0 | PIPE; 0IL, UNION TO UNION | 1 | 1103- | A | L=2930 | ||
| 13 | I1-47427 106-A | PIPE; BRK, RR AXLE | 1 | 1103- | A | (B) L=847 | ||
| 13 | I1-47427 105-A | PIPE; BRK, RR AXLE | 1 | 1103- | A | (A) L=675 |
