3-58 | FIXING PARTS; OIL PIPING
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

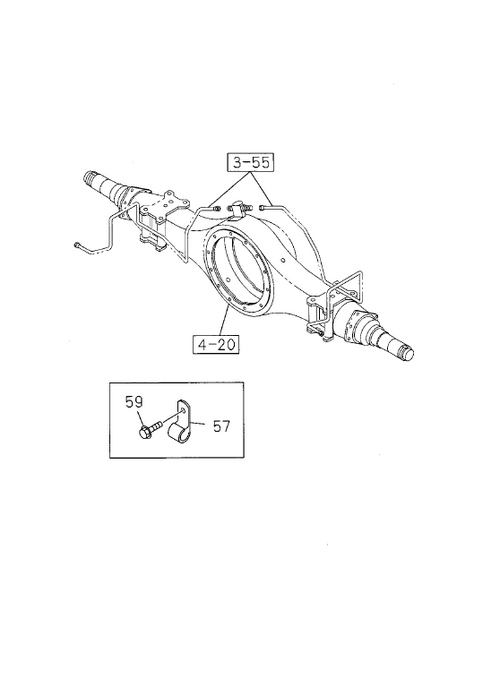

| 59 | I0-28050 810-0 | BOLT; BRK PIPE, RR AXLE | 4 | 1103- | A | M8X10 FLANGE | ||
| 1 | I8-98040 714-0 | CLIP; OIL PIPE TO BODY | 4 | 1103- | A | (B) | ||
| 82 | I1-09709 303-0 | CLIP; OIL PIPE | 2 | 1103- | A | (A) ID=4.76 & 4.76 | ||
| 107 | I0-91180 108-0 | NUT; CLIP, OIL PIPE | 4 | 1103- | A | M8 FLANGE | ||
| 82 | I1-09709 304-0 | CLIP; OIL PIPE | 4 | 1103- | A | (A) ID=4.76 & 6.35 | ||
| 1 | I8-98012 254-1 | CLIP; OIL PIPE TO BODY | 3 | 1103- | A | (A) | ||
| 82 | I8-94316 410-0 | CLIP; OIL PIPE | 1 | 1103- | A | (B) ID=4.8X2 | ||
| 106 | I0-28650 825-0 | BOLT; CLIP, OIL PIPE | 4 | 1103- | A | M8X25 FLANGE IDN | ||
| 58 | I8-98012 254-1 | CLIP; OIL PIPE | 5 | 1103- | A | |||
| 1 | I8-98012 254-1 | CLIP; OIL PIPE TO BODY | 4 | 1103- | A | (A) | ||
| 57 | I0-95234 635-0 | CLIP; BRK PIPE, RR AXLE | 4 | 1103- | A | ID=7 L=20 | ||
| 112 | I8-98012 254-1 | CLIP; OIL PIPE | 8 | 1103- | A | |||
| 82 | I1-09709 305-0 | CLIP; OIL PIPE | 1 | 1103- | A | (A) ID=4.76 & 10.0 |
