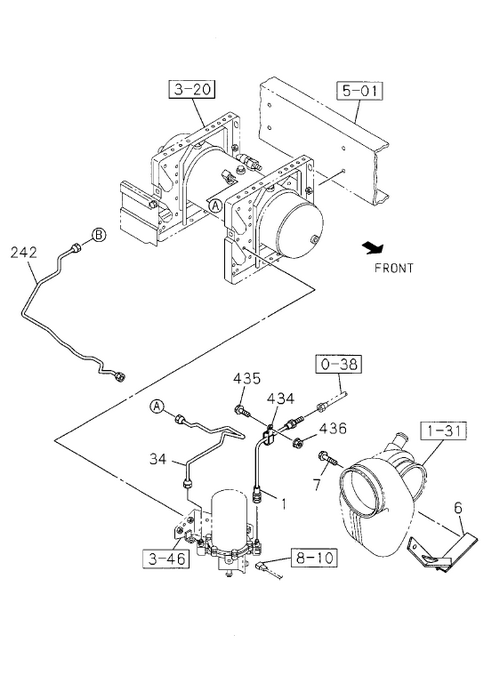

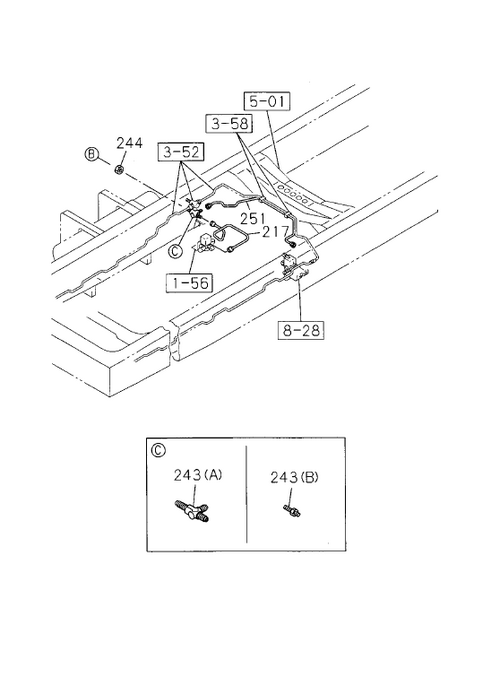

3-70 | BRAKE PIPING; AIR, AIR MASTER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 7 | I0-28650 825-0 | BOLT; BRKT, FLEX HOSE, AIR TANK | 2 | 1103- | A | M8X25 FLANGE IDN | ||
| 34 | I1-49115 480-0 | PIPE; AIR | 1 | 1103- | A | L=659 SERVICED BY L=660 | ||
| 242 | I1-47428 809-0 | PIPE; AIR, AIR TANK TO UNION | 1 | 1103- | A | L=557 SERVICED BY L=600 | ||
| 251 | I8-98179 119-A | PIPE; AIR, UNION | 1 | 1110- | A | PTO CONTROL<SV6> L=941 SERVICED BY L=1000 | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 1 | 1103- | A | M8 FLANGE | ||
| 217 | I8-98120 102-A | PIPE; VAC, UNION TO MAG VLV | 1 | 1103- | A | EXC. PTO CONTROL<SV6> L=289 | ||
| 6 | I8-98066 733-1 | BRACKET; FLEX HOSE, AIR TANK | 1 | 1103- | A | |||
| 434 | I1-09700 945-0 | CLIP | 1 | 1103- | A | ID=35 L=33 | ||
| 251 | I8-98179 119-A | PIPE; AIR, UNION | 1 | 1103-1109 | A | PTO CONTROL<SV6> L=941 SERVICED BY L=1000 | ||
| 243 | I0-92138 906-0 | UNION; AIR PIPE | 1 | 1103- | A | PTO CONTROL<SV6> (A) M12 3WAY | ||
| 217 | I8-98067 433-0 | PIPE; VAC, UNION TO MAG VLV | 1 | 1103- | A | PTO CONTROL<SV6> L=265 | ||
| 435 | I0-28650 825-0 | BOLT; CLIP | 1 | 1103- | A | IA8X25 FLANGE IDN | ||
| 244 | I9-09840 280-0 | NUT; UNION, AIR | 1 | 1103- | A | M12 | ||
| 1 | I8-98066 976-1 | HOSE; FLEX, AIR TANK | 1 | 1103- | A | |||
| 217 | I8-98120 102-A | PIPE; VAC, UNION TO MAG VLV | 1 | 1103- | A | EXC. PTO CONTROL<SV6> L=289 | ||
| 243 | I0-92113 306-0 | UNION; AIR PIPE | 1 | 1103- | A | EXC. PTO CONTROL<SV6> (B) M12 L=66.5 |
