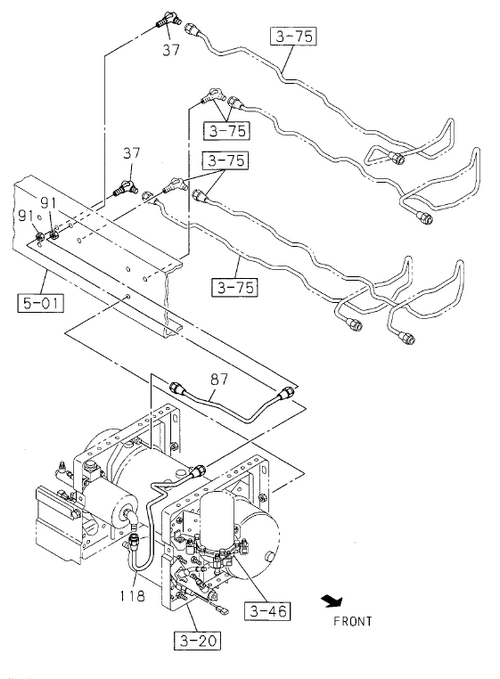

3-77 | BRAKE PIPING; AIR,REAR
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 118 | I1-47428 871-0 | PIPE; AIR, UNION MASTER TO AIR | 1 | 1103- | A | L=725 SERVICED BY L=730 | ||
| 87 | I8-98178 459-A | PIPE; AIR, AIR TANK TO UNION | 1 | 1103- | A | L=391 | ||
| 87 | I8-98178 459-A | A | PIPE; AIR, AIR TANK TO UNION | 1 | 1103- | A | L=391 | |
| 178 | I8-98017 052-1 | A | BRACKET; UNION | 1 | 1103- | A | ||
| 178 | I8-98017 052-1 | BRACKET; UNION | 1 | 1103- | A | |||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 1103- | A | |||
| 91 | I0-91111 516-0 | NUT; PIPE UNION | 2 | 1103- | A | M16 IDN | ||
| 50 | I0-91180 108-0 | NUT; UNION BRKT | 2 | 1103- | A | M8 FLANGE | ||
| 37 | I0-92135 210-0 | UNION; AIR PIPE | 2 | 1103- | A | M16 ELBOW |
