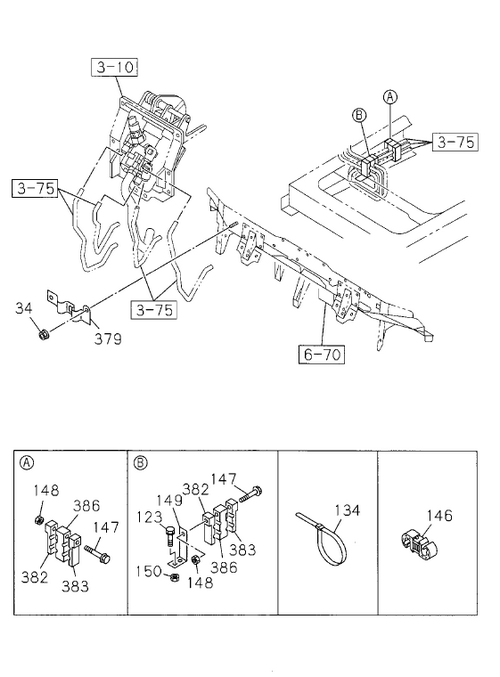

3-78 | FIXING PARTS; AIR PIPING
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 383 | I1-09709 241-0 | CLIP; LWR | 3 | 1103- | A | ID=10 & 10 | ||
| 382 | I1-09709 241-0 | CLIP; UPR | 3 | 1103- | A | ID=10 & 10 | ||
| 4 | I8-94316 410-0 | CLIP; AIR PIPE | 1 | 1103- | A | (C) ID=4.8X2 | ||
| 4 | I1-09701 304-0 | CLIP; AIR PIPE | 3 | 1103- | A | (B) ID=4.76X4 | ||
| 148 | I0-91180 108-0 | NUT; PIPE CLIP | 3 | 1103- | A | M8 FLANGE | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 1103- | A | |||
| 149 | I8-98356 579-0 | BRACKET; PIPE CLIP | 1 | 1803- | A | |||
| 224 | I1-09709 274-1 | CLIP; AIR PIPE | 1 | 1103- | A | ID=6.35 & 10.0 | ||
| 34 | I0-91180 106-0 | NUT; BRKT | 2 | 1103- | A | M6 FLANGE | ||
| 4 | I1-09709 304-0 | CLIP; AIR PIPE | 1 | 1103- | A | (A) ID=4.76 & 6.35 | ||
| 4 | I1-09709 273-1 | CLIP; AIR PIPE | 1 | 1103- | A | (A) ID=6.35 & 6.35 | ||
| 4 | I1-09709 305-0 | CLIP; AIR PIPE | 1 | 1103- | A | (A) ID=4.76 & 10.0 | ||
| 146 | I1-09709 277-1 | CLIP; AIR PIPE | 2 | 1103- | A | ID=10 & 10 | ||
| 386 | I1-09709 242-0 | CLIP; CENTER | 3 | 1103- | A | ID=10 | ||
| 4 | I1-09709 277-1 | CLIP; AIR PIPE | 2 | 1103- | A | (A) ID=10 & 10 | ||
| 149 | I1-47476 792-0 | BRACKET; PIPE CLIP | 1 | 1103- | A | |||
| 134 | I1-09707 183-0 | CLIP; AIR PIPE | 1 | 1103- | A | L=350 | ||
| 4 | I1-09709 306-0 | CLIP; AIR PIPE | 1 | 1103- | A | (A) ID=4.76 & 12 | ||
| 150 | I0-91180 108-0 | NUT; CLIP BRKT | 2 | 1103- | A | M8 FLANGE | ||
| 147 | I0-28050 870-0 | BOLT; PIPE CLIP | 3 | 1103- | A | M8X70 FLANGE | ||
| 123 | I0-28650 825-0 | BOLT; PIPE CLIP | 2 | 1103- | A | M8X25 FLANGE ION |
