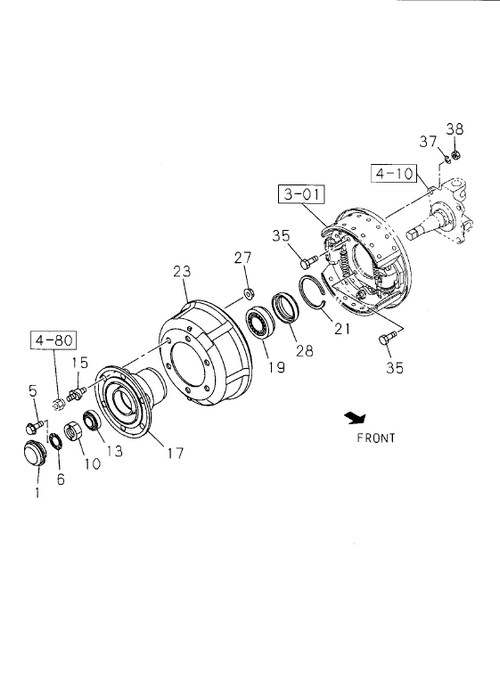

4-11 | FRONT HUB AND DRUM OR ROTOR
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 66 | I6-87412 285-0 | PIN WHEEL SET FR RH | 2 | 1412- | A | |||
| 28 | I6-09625 568-0 | SEAL; OIL, FRT HUB | 2 | 1103- | A | |||
| 21 | I1-09587 001-0 | RING; SNAP, HUB | 2 | 1103- | A | OD=117 | ||
| 66 | I6-87412 286-0 | PIN WHEEL SET FR LH | 2 | 1412- | A | |||
| 38 | I7-05014 012-A | NUT; BACK PLATE | 8 | 1103-1109 | A | M14 | ||
| 6 | I1-09841 003-0 | -BWASHER; LK, FRT HUB | 2 | 1103- | A | ID=39 | ||
| 37 | I0-91510 814-0 | WASHER; LK, BACK PLATE | 8 | 1103- | A | 1D=14.2 | ||
| 38 | I7-05014 012-A | NUT; BACK PLATE | 8 | 1110- | A | M14 | ||
| 19 | I1-09812 206-A | BEARING; HUB INNER, FRT AXLE | 2 | 1103- | A | (IADG) | ||
| 10 | I1-09840 019-1 | NUT; FRT HUB BRG | 2 | 1103- | A | M39 | ||
| 5 | I0-28650 616-0 | BOLT; LK WASHER | 4 | 1103- | A | M6X16 FLANGE | ||
| 35 | I0-20951 445-0 | BOLT; DRUM COVER | 8 | 1103- | A | M14X45 | ||
| 27 | I1-09440 065-0 | NUT; WHEEL PIN , FRT AXLE | 2 | 1103- | A | M22 FLANGE | ||
| 19 | I1-09812 206-0 | BEARING; HUB INNER, FRT AXLE | 2 | 1103- | A | |||
| 13 | I1-09812 207-A | BEARING; HUB OUTER, FRT AXLE | 2 | 1103- | A | (IADG) | ||
| 28 | I1-09625 568-0 | SEAL; OIL, FRT HUB | 2 | 1103- | A | |||
| 17 | I1-42312 104-A | HUB; FRT AXLE | 2 | 1103- | A | |||
| 15 | I1-42331 112-1 | PIN; WHEEL, FRT AXLE | 6 | 1103- | A | M24X37.5,M22X51.5 RH THREAD | ||
| 15 | I1-42332 112-1 | PIN; WHEEL, FRT AXLE | 6 | 1103- | A | M24X37.5 LH THREAD,M22X51.5 RH THREAD | ||
| 13 | I1-09812 207-0 | BEARING; HUB OUTER, FRT AXLE | 2 | 1103- | A | |||
| 17 | I1-42312 104-A | HUB; FRT AXLE | 2 | 1103- | A | |||
| 23 | I1-42315 359-A | DRUM; BRK, FRT | 2 | 1103- | A | |||
| 23 | I1-42315 359-A | DRUM; BRK, FRT | 2 | 1103- | A | |||
| 1 | I1-42313 032-0 | CAP; HUB, FRT A AXLE | 2 | 1103- | A |
