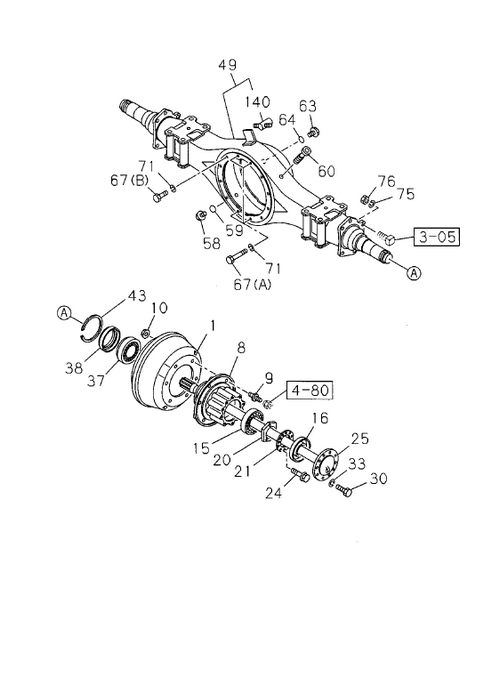

4-20 | REAR AXLE CASE AND SHAFT
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I1-42331 106-2 | PIN; WHEEL, RR AXLE | 6 | 1103- | A | M20X34.5 , M22X43.5 RH THREAD | ||
| 21 | I9-09854 122-0 | WASHER; LK, BRG | 2 | 1103- | A | ID=64 | ||
| 20 | I9-09843 721-2 | NUT; BRG, RR HUB | 2 | 1103- | A | M64 | ||
| 9 | I1-42332 106-2 | PIN; WHEEL, RR AXLE | 6 | 1103- | A | M20X34.5 LH THREAD, M22X43.5 RH THREAD | ||
| 63 | I1-09604 022-0 | PLUG; OIL FILLER, AXLE CASE | 1 | 1103- | A | M24X17 FLANGE | ||
| 43 | I9-09950 201-0 | RING; SNAP, HUB SEAL, RR AXLE | 2 | 1103- | A | |||
| 67 | I0-10956 260-0 | BOLT; FINAL DRIVE SETTING | 4 | 1103- | A | |||
| 64 | I1-09623 179-0 | GASKET; OIL FILLER, AXLE CASE | 1 | 1103-1109 | A | ID=26.8 | ||
| 15 | I8-98156 814-0 | BEARING; HUB OUTER, RR AXLE | 2 | 1110- | A | |||
| 37 | I1-09812 154-0 | BEARING; HUB INNER, RR AXLE | 2 | 1103- | A | |||
| 33 | I0-91510 812-0 | WASHER; AXLE SHAFT | 20 | 1103-- | A | ID=12.2 | ||
| 71 | I0-91510 812-0 | WASHER; LK, FINAL DRIVE SETTING | 12 | 1103- | A | ID=12.2 | ||
| 10 | I1-09440 065-0 | NUT; WHEEL PIN, RR AXLE | 2 | 1103- | A | M22 FLANGE | ||
| 76 | I7-05014 012-A | NUT; RR BRK ASM SETTING | 12 | 1103-1109 | A | M14 AXLE | ||
| 25 | I8-97380 682-0 | SHAFT; AXLE, RR | 2 | 1103- | A | L=925 | ||
| 15 | I8-98156 814-A | BEARING; HUB OUTER, RR AXLE | 2 | 1110- | A | (IADG) | ||
| 76 | I7-05014 012-A | NUT; RR BRK ASM SETTING | 12 | 1110- | A | M14 AXLE | ||
| 37 | I1-09812 154-A | BEARING; HUB INNER, RR AXLE | 2 | 1103- | A | (IADG) | ||
| 60 | I1-09893 003-0 | BREATHER; RR AXLE CASE | 1 | 1103- | A | |||
| 30 | I9-09804 239-1 | BOLT; HUB TO AXLE SHAFT | 20 | 1103- | A | M12X45 | ||
| 16 | I6-09625 331-0 | SEAL; OIL, RR HUB, OUTER | 2 | 1103- | A | TKK | ||
| 24 | I0-28650 616-0 | BOLT; LK WASHER | 6 | 1103- | A | M6X16 FLANGE | ||
| 1 | I1-42315 361-A | DRUM; BRK, RR | 2 | 1103- | A | |||
| 140 | I1-09656 239-3 | CONNECTOR; AXLE CASE | 1 | 1103- | A | |||
| 67 | I0-20951 235-0 | BOLT; FINAL DRIVE SETTING | 8 | 1103- | A | |||
| 8 | I1-42311 009-A | HUB; RR AXLE | 2 | 1103- | A | |||
| 16 | I1-09625 331-2 | SEAL; OIL, RR HUB, OUTER | 2 | 1103- | A | TKK | ||
| 64 | I1-09623 179-0 | GASKET; OIL FILLER, AXLE CASE | 1 | 1110- | A | ID=26.8 | ||
| 1 | I1-42315 361-A | DRUM; BRK, RR | 2 | 1103- | A | |||
| 187 | I6-87412 287-0 | PIN WHEEL SET RR RH | 2 | 1412- | A | |||
| 49 | I8-98173 586-0 | CASE; RR AXLE | 1 | 1103- | A | |||
| 8 | I1-42311 009-A | HUB; RR AXLE | 2 | 1103- | A | |||
| 58 | I1-09604 023-0 | PLUG; DRAIN, AXLE CASE | 1 | 1103- | A | M24X17 FLANGE | ||
| 75 | I0-91510 814-0 | WASHER; LK, RR BRK ASM SETTING | 12 | 1103- | A | ID=14.2 | ||
| 38 | I1-09625 569-0 | SEAL; OIL, RR HUB, INNER | 2 | 1103- | A | TKK | ||
| 38 | I6-09625 569-0 | SEAL; OIL, RR HUB, INNER | 2 | 1103- | A | TKK | ||
| 59 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 1103-1109 | A | ID=26.8 | ||
| 59 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 1110- | A | ID=26.8 | ||
| 187 | I6-87412 288-0 | PIN WHEEL SET RR LH | 2 | 1412- | A |
