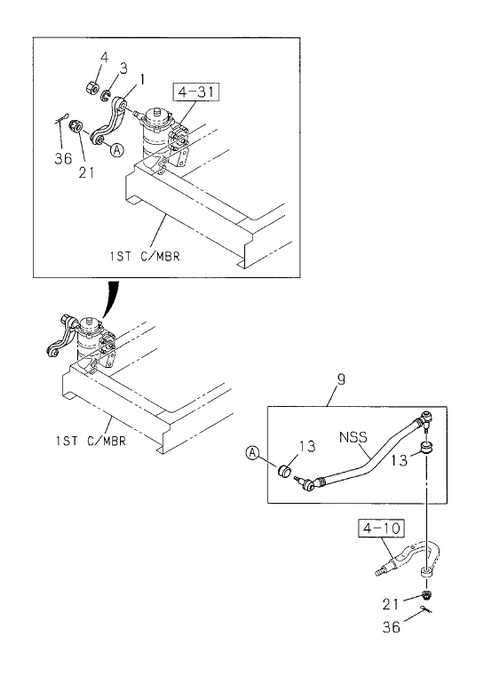

4-33 | STEERING LINKAGE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I0-81124 025-0 | PIN; SPLI T, DRAG | 2 | 1103- | A | OD=3.7 L=25 | ||
| 21 | I1-09442 021-1 | NUT; LK, JOINT BALL | 2 | 1103-1109 | A | M16 SLOTTED | ||
| 1 | I8-98053 721-0 | ARM; PITMAN, STRG | 1 | 1103- | A | |||
| 21 | I1-09442 021-1 | NUT; LK, JOINT BALL | 2 | 1110- | A | M16 SLOTTED | ||
| 13 | I1-85574 063-0 | BOOT; DRAG LINK | 2 | 1110- | A | |||
| 13 | I1-85574 063-0 | BOOT; DRAG LINK | 2 | 1103-1109 | A | |||
| 9 | I1-44380 321-0 | LINK; DRAG | 1 | 1103- | A | |||
| 3 | I1-09500 055-0 | WASHER; LK, PITMAN ARM | 1 | 1103- | A | ID=30.5 | ||
| 4 | I1-09400 166-0 | NUT; PITMAN ARM | 1 | 1103- | A | M30 |
