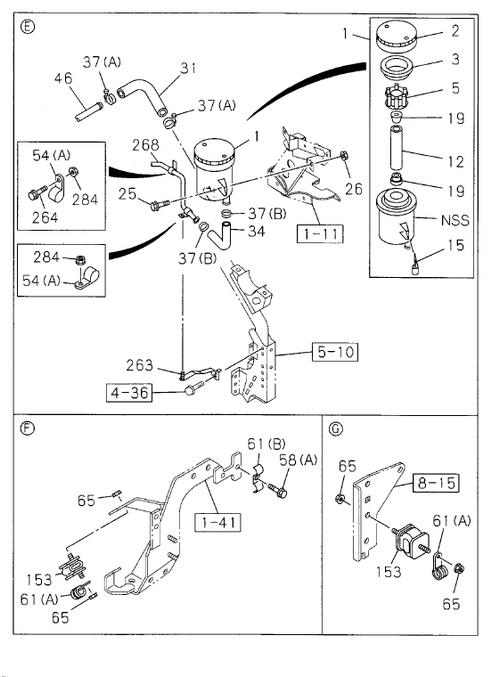

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 153 | I8-94158 156-1 | RUBBER; CUSHION, POWER STRG PIPE | 3 | 1103- | A | PUMP ALSO INCLUDED IN GASKET SET( ENGINE) . | ||
| 268 | I8-98077 739-A | A | PIPE; 01L, FLEX HOSE TO FLEX HOSE | 1 | 1103- | A | ||
| 268 | I8-98077 739-A | PIPE; 01L, FLEX HOSE TO FLEX HOSE | 1 | 1103- | A | |||
| 37 | I9-09915 005-1 | C | CLIP; HOSE, P/S | 2 | 1103-1109 | A | (B) ID=32 | |
| 263 | I8-98130 274-0 | BRACKET; P/S PIPE | 1 | 1103- | A | |||
| 41 | I9-09915 005-1 | C | CLIP; HOSE, P/S | 2 | 1103-1109 | A | ID=32 | |
| 54 | I0-95235 836-0 | CLIP; OIL PIPE | 2 | 1103- | A | (A) ID=19 L=20 | ||
| 44 | I8-98077 661-A | PIPE; OIL, P/S UNIT TO NIPPLE | 1 | 1103- | A | |||
| 26 | I0-91180 108-0 | NUT; OIL TANK TO BRKT | 2 | 1103- | A | M8 FLANGE | ||
| 54 | I9-09915 005-1 | CLIP; OIL PIPE | 2 | 1110- | A | (C) ID=32 | ||
| 65 | I0-91180 108-0 | NUT; BRKT | 6 | 1103- | A | M8 FLANGE | ||
| 34 | I8-98021 827-A | HOSE; P/S OIL TANK, OUTLET | 1 | 1103- | A | |||
| 54 | I9-09915 005-1 | C | CLIP; OIL PIPE | 2 | 1103-1109 | A | (C) ID=32 | |
| 2 | I8-98166 876-0 | CAP; OIL TANK, P/S | 1 | 1103- | A | |||
| 46 | I8-98214 944-A | PIPE; OIL, P/S UNIT TO OIL TANK | 1 | 1103- | A | L=2394 | ||
| 61 | I0-95235 536-0 | CLIP; OIL PIPE | 3 | 1103- | A | (A) ID=16 L=20 | ||
| 46 | I8-98214 944-A | A | PIPE; OIL, P/S UNIT TO OIL TANK | 1 | 1103- | A | L=2394 | |
| 58 | I0-28050 816-0 | BOLT; CL IP | 1 | 1103- | A | (A) M8X16 FLANGE | ||
| 12 | I1-21235 011-0 | F I LTER;MICROBON, OIL | 1 | 1103- | A | |||
| 3 | I1-21249 003-1 | GASKET; OIL TANK, P/S | 1 | 1103- | A | |||
| 163 | I0-28050 816-0 | BOLT; OIL PIPE | 2 | 1103- | A | M8X16 FLANGE | ||
| 54 | I1-09701 284-0 | CLIP; OIL PIPE | 4 | 1103- | A | (B) | ||
| 371 | I8-98072 089-1 | PIPE; OIL, INLET | 1 | 1103- | A | |||
| 37 | I9-09915 005-1 | CLIP; HOSE, P/S | 2 | 1110- | A | (B) ID=32 | ||
| 280 | I8-98053 040-A | HOSE; P/S OIL PUMP, INL | 1 | 1103- | A | |||
| 66 | I0-28050 816-0 | BOLT; BRKT, OIL PIPE | 2 | 1103- | A | M8X16 FLANGE | ||
| 284 | I0-91180 108-0 | NUT; PIPE | 2 | 1103- | A | M8 FLANGE | ||
| 58 | I0-28050 845-0 | BOLT; CL IP | 2 | 1103- | A | (B) M8X45 FLANGE | ||
| 41 | I9-09915 005-1 | CLIP; HOSE, P/S | 2 | 1110- | A | ID=32 | ||
| 15 | I1-21249 016-0 | PLATE; FILTER, OIL TANK | 2 | 1103- | A | |||
| 280 | I8-98053 040-A | A | HOSE; P/S OIL PUMP, INL | 1 | 1103- | A | ||
| 31 | I8-98077 740-A | A | HOSE; P/S OIL TANK, INL | 1 | 1103- | A | ||
| 25 | I0-28650 825-0 | BOLT; | 2 | TANK | BR | A | M8X25 FLANGE IDN | |
| 102 | I8-98080 186-2 | PIPE; SUCTION, P/S | 1 | 1103- | A | |||
| 34 | I8-98021 827-A | A | HOSE; P/S OIL TANK, OUTLET | 1 | 1103- | A | ||
| 31 | I8-98077 740-A | HOSE; P/S OIL TANK, INL | 1 | 1103- | A | |||
| 264 | I0-28650 820-0 | BOLT; PIPE BRKT | 1 | 1103- | A | M8X20 FLANGE I ON | ||
| 61 | I1-09700 668-0 | CLIP; OIL PIPE | 1 | 1103- | A | (B) ID=16 & 13 L=21.5 & 21.5 | ||
| 44 | I8-98077 661-A | A | PIPE; OIL, P/S UNIT TO NIPPLE | 1 | 1103- | A | ||
| 5 | I1-21235 007-1 | STRAINER; OIL TANK, P/S | 1 | 1103- | A | |||
| 157 | I8-97386 295-0 | GASKET; P/S PUMP | 1 | 1103- | A | ID=105.6 | ||
| 63 | I8-97375 107-0 | BRACKET; CLIP, P/S | 1 | 1103- | A | |||
| 1 | I8-98166 928-0 | TANK ASM; OIL, P/S | 1 | 1103- | A | |||
| 37 | I1-09704 082-0 | CLIP; HOSE, P/S | 2 | 1103- | A | (A) I D=26 | ||
| 19 | I1-21249 004-0 | SEAT; OIL TANK | 2 | 1103- | A |
