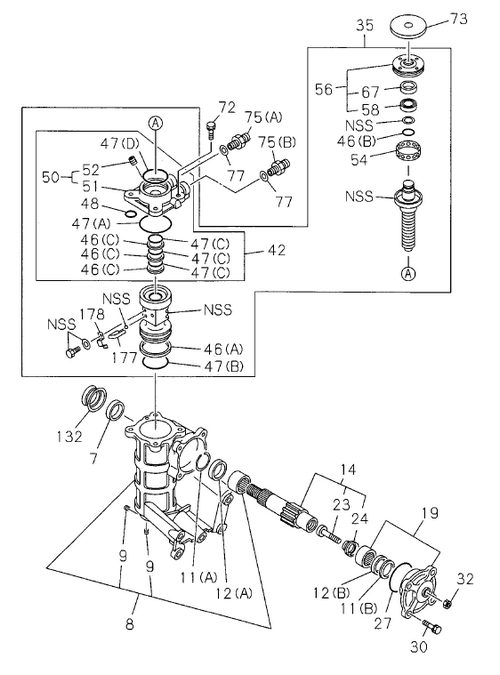

| 46 |
I8-98081 685-0 |
|
SEAL; RING,HSG STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(B) |
| 2 |
I1-85574 090-A |
|

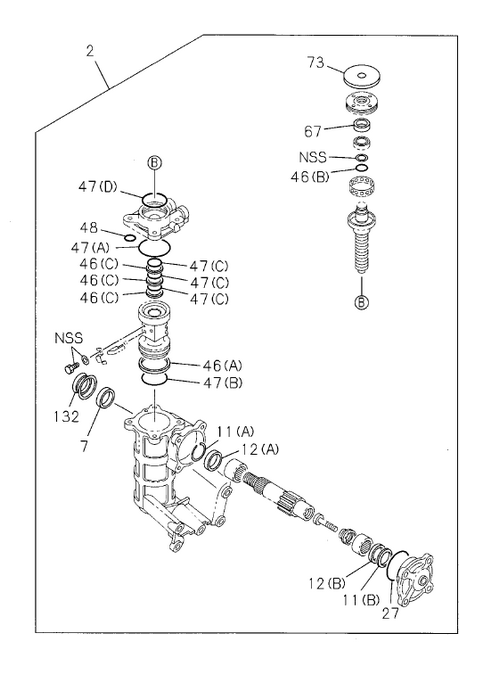

REPAIR KIT; STRG UNIT, 2 YEAR |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 19 |
I1-44260 027-0 |
|
COVER; SIDE STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 46 |
I1-44519 155-0 |
|
SEAL; RING,HSG STRG UNIT |
3 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(C) |
| 11 |
I1-44519 158-0 |
|
RING; BACKUP, STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(A) |
| 47 |
I1-44519 165-0 |
|
GASKET; HSG,STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(D) |
| 8 |
I1-44240 157-0 |
|
BOX ASM; STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 23 |
I8-97014 842-0 |
|
SCREW; ADJ, SECTOR SHAFT, STRG UNIT |
1 |
1110- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 47 |
I1-44519 153-0 |
|
GASKET; HSG,STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(A) |
| 11 |
I8-97014 825-0 |
|
RING; BACKUP, STRG UNIT |
1 |
1103-1109 |
|
A |
SUB ASSY FROM 1-44000-961-1
(B) |
| 178 |
I1-44159 064-0 |
|
CLIP; BALL TUBE STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 35 |
I8-98095 566-0 |
|
HOUSING & SCREW ASM; STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 7 |
I1-44519 157-1 |
|
SEAL; SECTOR SHAFT, STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 27 |
I1-44519 161-0 |
|
GASKET; SIDE COVER, STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 56 |
I1-44250 007-0 |
|
PLUG & SEAL ASM; STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 32 |
I7-05012 010-A |
|
NUT; ADJ SCREW, STRG UNIT |
1 |
1110- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 72 |
I1-44519 146-0 |
|
BOLT; HSG FIX STRG UNIT |
1 |
1110- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 47 |
I1-44519 154-0 |
|
GASKET; HSG,STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(B) |
| 14 |
I1-44320 012-0 |
|
SHAFT; SECTOR, STRG UN I T |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 32 |
I7-05012 010-A |
|
NUT; ADJ SCREW, STRG UNIT |
1 |
1103-1109 |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 51 |
I1-44561 017-0 |
|
HOUSING; VALVE STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 177 |
I1-44159 060-0 |
|
TUBE; BALL BRG STRG UN 1 T |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 75 |
I1-44259 034-1 |
|
CONNECTOR; HSG STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(A) 820X1.5 |
| 24 |
I8-97014 841-0 |
|
RETAINER; STRG UNIT |
1 |
1103-1109 |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 132 |
I1-44159 119-0 |
|
COVER; DUST, STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 42 |
I1-44560 069-0 |
|
HOUSING & SEAL ASM; STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 52 |
I8-97014 820-0 |
|
PLUG; HSG STRG UNIT |
1 |
1103-1109 |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 54 |
I1-44241 127-0 |
|
CASE; BEARING STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 46 |
I1-44159 161-0 |
|
SEAL; RING,HSG STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 50 |
I1-44560 068-0 |
|
HOUSING ASM; VALVE STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 75 |
I1-44259 035-1 |
|
CONNECTOR; HSG STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(B) 122X1 .5 |
| 52 |
I8-97014 820-0 |
|
PLUG; HSG STRG UNIT |
1 |
1110- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 67 |
I1-44259 057-0 |
|
SEAL; OIL, PLUG, STRG UN I T |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 23 |
I8-97014 842-0 |
|
SCREW; ADJ, SECTOR SHAFT, STRG UNIT |
1 |
1103-1109 |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 48 |
I1-44519 262-0 |
|
GASKET; |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 73 |
I1-44519 303-0 |
|
COVER; DUST, STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 58 |
I1-44259 058-0 |
|
BEARING; HSG STRG UN I T |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 30 |
I1-44569 103-0 |
|
BOLT; COVER STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 47 |
I1-44519 156-0 |
|
GASKET; HSG,STRG UNIT |
3 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(C) |
| 12 |
I1-44519 159-1 |
|
GASKET; SHAFT, STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(A) |
| 9 |
I8-97014 820-0 |
|
PLUG; FILLER, STRG UNIT |
1 |
1110- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 72 |
I1-44519 146-0 |
|
BOLT; HSG FIX STRG UNIT |
1 |
1103-1109 |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 11 |
I8-97014 825-0 |
|
RING; BACKUP, STRG UNIT |
1 |
1110- |
|
A |
SUB ASSY FROM 1-44000-961-1
(B) |
| 2 |
I6-85574 090-0 |
|
REPAIR KIT; STRG UNIT,2 YEAR |
2 |
1103- |
|
A |
|
| 9 |
I8-97014 820-0 |
|
PLUG; FILLER, STRG UNIT |
1 |
1103-1109 |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 12 |
I1-44519 162-1 |
|
GASKET; SHAFT, STRG UNIT |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1
(B) |
| 24 |
I8-97014 841-0 |
|
RETAINER; STRG UNIT |
1 |
1110- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 2 |
I1-85574 090-A |
|
REPAIR KIT; STRG UNIT, 2 YEAR |
1 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
| 77 |
I9-89970 787-0 |
|
GASKET; CONNECTOR, STRG UNIT |
2 |
1103- |
|
A |
SUB ASSY FROM 1-44000-961-1 |
