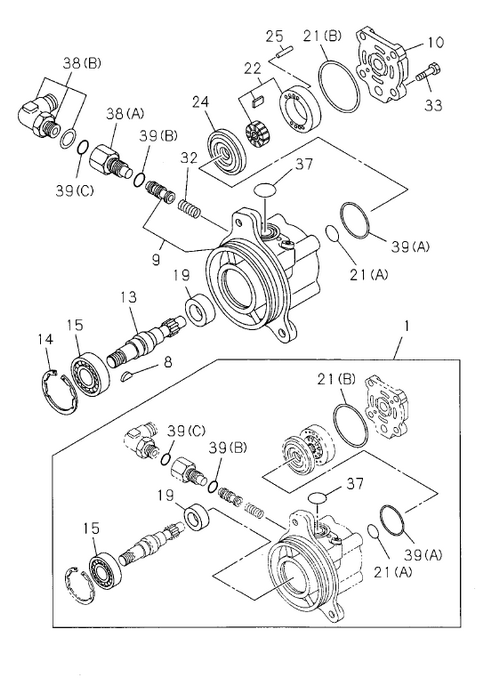

4-42 | POWER STEERING OIL PUMP
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I9-00090 211-0 | BEARING; BALL, OIL PUMP | 1 | 1110- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 1 | I1-85574 073-0 | REPAIR KIT; OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 39 | I1-19519 259-0 | GASKET; OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 (A) | ||
| 10 | I1-19511 160-0 | BODY ASM; RR, OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 24 | I8-97182 103-0 | PLATE ASM; THRUST | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 15 | I9-00090 211-0 | BEARING; BALL, OIL PUMP | 1 | 1103-1109 | A | SUB ASSY FROM 1-19500-636-1 | ||
| 33 | I1-19519 346-1 | BOLT; COVER | NULL | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 13 | I1-19521 038-0 | SHAFT KIT; RET | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 22 | I1-19519 341-0 | CARTRIDGE ASM; OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 39 | I1-19519 308-0 | GASKET; OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 (C) | ||
| 39 | I9-48429 028-0 | GASKET; OIL PUMP | 1 | 1103- | A | (B) SEE FIG-NO 4-55 FOR COMPONENT. | ||
| 9 | I1-19511 158-1 | BODY ASM; FRT, OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 14 | I1-19519 257-0 | RING; RET, OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 19 | I1-19519 256-0 | SEAL; OIL, OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 38 | I1-19519 343-1 | CONNECTOR; | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 (A) | ||
| 21 | I1-19519 345-0 | GASKET; FRT COVER TO BODY | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 (B) | ||
| 38 | I8-98072 517-0 | CONNECTOR; | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 (B) | ||
| 25 | I1-33739 271-0 | PIN; HSG, P/S | NULL | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 32 | I8-94475 376-0 | SPRING; OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 8 | I9-19519 089-0 | KEY; SHAFT, OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 | ||
| 21 | I8-97182 099-0 | GASKET; FRT COVER TO BODY | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 (A) | ||
| 37 | I1-33739 070-0 | GASKET; PIPE CONN, OIL PUMP | 1 | 1103- | A | SUB ASSY FROM 1-19500-636-1 |
