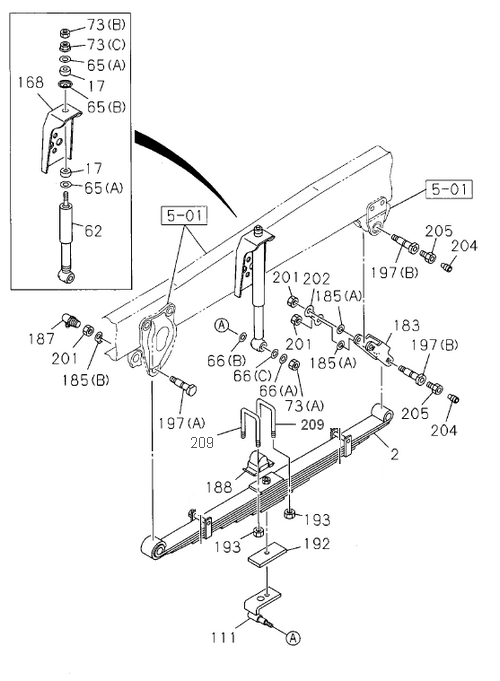

| 197 |
I6-98060 335-0 |
|
PIN; FRT SPR, FRT |
2 |
1103- |
|
A |
(A) |
| 188 |
I1-51172 112-0 |
|
RUBBER; CLAMP, U-BOLT, FRT |
2 |
1103- |
|
A |
|
| 65 |
I8-98010 405-0 |
|
WASHER; S/ABS |
4 |
1103- |
|
A |
(A) ID=10.5 OD=40 T=3.2 |
| 197 |
I6-98060 333-0 |
|
PIN; FRT SPR, RR |
4 |
1103- |
|
A |
(B) |
| 209 |
I1-51171 133-A |
|
U-BOLT; FRT SPRING |
4 |
1103- |
|
A |
L=150 |
| 73 |
I7-05110 010-A |
|
NUT; BRKT, SHOCK |
2 |
1103- |
|
A |
(C) M10 FLANGE S/ABS, F RT SUS P |
| 73 |
I0-91110 512-0 |
|
NUT; BRKT, SHOCK |
2 |
1103-1109 |
|
A |
(A) M12 |
| 17 |
I9-51631 603-0 |
|
BUSHING; RUBBER, S/ABS |
4 |
1110- |
|
A |
|
| 111 |
I1-51681 586-4 |
|
SUPPORTER; S/ABS, |
1 |
1103- |
|
A |
|
| 2 |
I7-65020 313-A |
|
SPRING ASM; LEAF, FRT |
1 |
1110- |
|
A |
|
| 197 |
I8-98060 333-0 |
|
PIN; FRT SPR, RR |
4 |
1103- |
|
A |
(B) |
| 62 |
I8-98060 332-A |
|
ABSORBER ASM; SHOCK, FRT |
2 |
1103- |
|
A |
(IADG) |
| 66 |
I1-09503 171-0 |
|
WASHER; LK, S/ABS SETTING |
2 |
1103- |
|
A |
(C) ID=12.5 |
| 193 |
I8-97360 121-0 |
|
NUT; U BOLT |
8 |
1103- |
|
A |
M16 |
| 192 |
I1-51177 149-0 |
|
PIECE; DIST |
NULL |
1103- |
|
A |
T=4.5 |
| 202 |
I8-98010 648-0 |
|
PLATE; LK, SPR PIN |
2 |
1103- |
|
A |
|
| 185 |
I8-98010 411-0 |
|
WASHER; LK, PIN |
2 |
1103- |
|
A |
(B) 11)=23 |
| 2 |
I6-65020 313-0 |
|
SPRING ASM; LEAF, FRT |
1 |
1110- |
|
A |
|
| 185 |
I8-98010 404-0 |
|
WASHER; LK, PIN |
4 |
1103- |
|
A |
(A) ID=25.5 |
| 2 |
I6-65020 313-0 |
|
SPRING ASM; LEAF, FRT |
1 |
1103- |
|
A |
|
| 111 |
I1-51681 587-4 |
|
SUPPORTER; S/ABS, |
1 |
1103- |
|
A |
|
| 73 |
I7-05110 010-A |
|
NUT; BRKT, SHOCK |
2 |
1103- |
|
A |
(C) M10 FLANGE S/ABS, F RT SUS P |
| 17 |
I9-51631 603-0 |
|
BUSHING; RUBBER, S/ABS |
4 |
1103-1109 |
|
A |
|
| 204 |
I0-90301 410-0 |
|
NIPPLE; GREASE, RR |
4 |
1103- |
|
A |
PT1/8 STRAIGHT GREASE NIPPLE |
| 73 |
I0-91111 510-0 |
|
NUT; BRKT, SHOCK |
2 |
1103- |
|
A |
(B) M10 |
| 201 |
I0-91111 522-0 |
|
NUT; PIN LK |
6 |
1103- |
|
A |
|
| 2 |
I7-65020 313-A |
|
SPRING ASM; LEAF, FRT |
1 |
1103-1109 |
|
A |
|
| 62 |
I8-98060 332-0 |
|
ABSORBER ASM; SHOCK, FRT |
2 |
1103- |
|
A |
|
| 197 |
I8-98374 282-0 |
|
PIN; FRT SPR, FRT |
2 |
1103- |
|
A |
(A) |
| 187 |
I0-90301 610-0 |
|
NIPPLE; GREASE, FRT |
2 |
1103- |
|
A |
PT1/8 ELBOW |
| 183 |
I1-51162 037-0 |
|
SHACKLE; FRT SUSP |
2 |
1103- |
|
A |
|
| 73 |
I7-05012 010-A |
|
NUT; BRKT, SHOCK |
2 |
1110- |
|
A |
(A) M12 |
| 168 |
I8-98060 258-0 |
|
BRACKET; S/ABS, FRT SUSP |
2 |
1103- |
|
A |
|
| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
4 |
1103- |
|
A |
|
| 65 |
I1-51631 023-0 |
|
WASHER; S/ABS |
2 |
1103- |
|
A |
(B) |
| 17 |
I6-51631 603-0 |
|
BUSHING; RUBBER, S/ABS |
4 |
1110- |
|
A |
|
| 2 |
I7-65020 313-A |
|
SPRING ASM; LEAF, FRT |
1 |
1103- |
|
A |
|
| 66 |
I0-91610 516-0 |
|
WASHER; LK, S/ABS SETTING |
2 |
1103- |
|
A |
(B) ID=17 OD=30 |
| 66 |
I0-91510 812-0 |
|
WASHER; LK, S/ABS SETTING |
2 |
1103- |
|
A |
(A) ID=12.2 |
