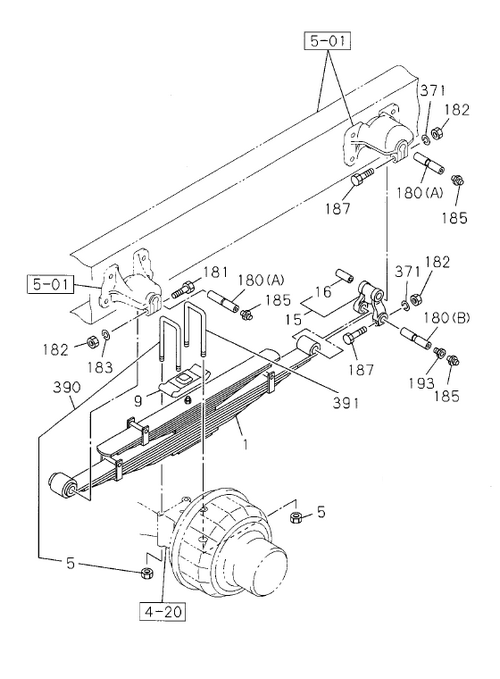

| 187 |
I0-10961 270-0 |
|
BOLT; SPR & SHACKLE |
4 |
1103- |
|
A |
M12X70 GREASE NIPPLE |
| 182 |
I0-91110 512-0 |
|
NUT; PIN, RR SPR |
6 |
1103-1109 |
|
A |
M12 |
| 180 |
I6-51361 016-0 |
|
PIN; RR SPR, FRT |
4 |
1103- |
|
A |
(IADG) (A) DD=25 L=115 PT1/8 |
| 390 |
I1-87870 399-0 |
|
U-BOLT SET; RR SPRING |
4 |
1103- |
|
A |
L=390 |
| 183 |
I8-98179 315-0 |
|
WASHER; LK, PIN, |
2 |
1103- |
|
A |
|
| 181 |
I0-10961 270-0 |
|
BOLT; SPR & SHACKLE |
2 |
1103- |
|
A |
M12X70 |
| 182 |
I7-05012 010-A |
|
NUT; PIN, RR SPR |
6 |
1110- |
|
A |
M12 |
| 16 |
I8-98082 176-0 |
|
BUSHING; SHACKLE, |
2 |
1103- |
|
A |
ID=25 |
| 16 |
I6-98082 176-0 |
|
BUSHING; SHACKLE, |
2 |
1103- |
|
A |
(IADG) ID=25 |
| 193 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
2 |
1103- |
|
A |
SHACKLE |
| 180 |
I1-51361 017-0 |
|
PIN; RR SPR, RR |
2 |
1103- |
|
A |
(B) OD=25 L=115 M12 |
| 15 |
I1-51362 038-2 |
|
SHACKLE; RR SPR |
2 |
1103- |
|
A |
|
| 5 |
I1-09440 039-1 |
|
NUT; U-BOLT, RR SPR |
8 |
1103- |
|
A |
M18 FLANGE |
| 1 |
I7-66020 314-A |
|
SPRING ASM; LEAF, RR |
2 |
1103- |
|
A |
|
| 185 |
I0-90301 410-0 |
|
NIPPLE; GREASE, PIN, RR SPR |
6 |
1103- |
|
A |
PT1/8 STRAIGHT |
| 9 |
I1-51372 059-0 |
|
PAD; U BOLT, RR SPR |
2 |
1103- |
|
A |
|
| 391 |
I1-51371 208-A |
|
U-BOLT; RR SPRING |
4 |
1103- |
|
A |
L=390; W/O NUT |
| 371 |
I8-98179 315-0 |
|
WASHER; LK, SHACKLE |
4 |
1103- |
|
A |
RR SPRING |
| 180 |
I1-51361 016-0 |
|
PIN; RR SPR, FRT |
4 |
1103- |
|
A |
(A) DD=25 L=115 PT1/8 |
| 1 |
I6-66020 314-0 |
|
SPRING ASM; LEAF, RR |
2 |
1103- |
|
A |
(IADG) |
| 180 |
I6-51361 017-0 |
|
PIN; RR SPR, RR |
2 |
1103- |
|
A |
(IADG) (B) OD=25 L=115 M12 |
