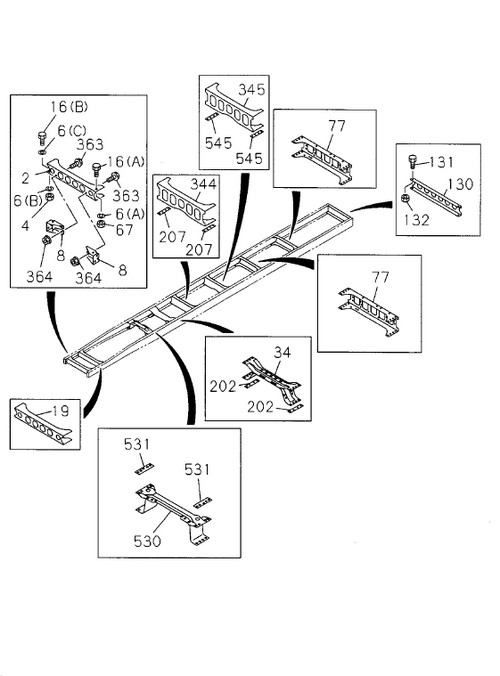

5-01 | FRAME AND OTHER PARTS
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 207 | I8-97609 758-0 | SPACER; 4TH C/MBR | 2 | 1103- | A | |||
| 19 | I8-97695 008-A | MEMBER; CROSS, 2ND | 1 | 1103- | A | |||
| 530 | I8-97695 013-A | MEMBER; CROSS,T/M UPR | 1 | 1305- | A | (A) UPPER | ||
| 34 | I8-97695 012-A | MEMBER; CROSS,3RD LWR | 1 | 1305- | A | (B) LOWER | ||
| 117 | I0-20951 450-0 | BOLT; STOPPER | 16 | 1103- | A | M14X50 | ||
| 6 | I0-91510 814-0 | WASHER; LK, 1ST C/MBR | 2 | 1103- | A | (B) ID=14.2 | ||
| 530 | I8-97695 015-A | MEMBER; CROSS,T/M LWR | 1 | 1305- | A | (B) LOWER | ||
| 11 | I8-97604 129-0 | BRACKET; ENG MTG | 2 | 1103- | A | |||
| 31 | I8-98082 176-0 | BUSHING; FRT SPR, RR | 2 | 1103- | A | ID=25 | ||
| 105 | I1-53354 074-A | BRACKET; RR SPR, RR | 2 | 1103- | A | |||
| 6 | I8-98010 627-1 | WASHER; LK, 1ST C/MBR | 2 | 1103- | A | (C) I D=15 | ||
| 28 | I0-67801 136-0 | RIVET; BRKT,FRT SPR | 1 | 1602- | A | |||
| 46 | I0-20951 450-0 | BOLT; BRKT FIX | 12 | 1103- | A | M14X50 | ||
| 6 | I0-91510 512-0 | WASHER; LK, 1ST C/MBR | 2 | 1103- | A | (A) ID=12.2 | ||
| 4 | I7-05014 012-A | NUT; 1ST C/MBR TO S/MBR | 2 | 1110- | A | M14 | ||
| 530 | I8-97609 814-1 | MEMBER; CROSS, T/M | 1 | 1103- | A | |||
| 39 | I1-53352 154-2 | BRACKET; FRT SPR, RR | 2 | 1103- | A | |||
| 364 | I0-91180 212-0 | NUT; GUSSET | 4 | 1103- | A | M12 FLANGE | ||
| 2 | I8-97695 007-A | MEMBER; CROSS, 1ST | 1 | 1103- | A | |||
| 531 | I8-97637 078-0 | SPACER; C/MBR, T/M | 2 | 1103- | A | |||
| 8 | I8-97609 579-2 | GUSSET; 1ST C/MBR | 1 | 1103- | A | |||
| 101 | I1-53353 090-4 | BRACKET; RR S PR, FRT | 2 | 1103- | A | |||
| 363 | I0-28661 225-0 | BOLT; GUSSET | 4 | 1103- | A | M12X25 FLANGE | ||
| 131 | I0-50741 025-0 | BOLT; END C/MBR | 4 | 1110- | A | M10X25 W/LK WASHER | ||
| 16 | I0-20851 230-0 | BOLT; 1ST C/MBR TO S/MBR | 2 | 1103- | A | (A) M12X30 | ||
| 202 | I8-97609 756-1 | SPACER; 3RD C/MBR | 2 | 1103- | A | |||
| 34 | I8-97695 011-A | MEMBER; CROSS,3RD UPR | 1 | 1305- | A | (A) UPPER | ||
| 132 | I0-91110 510-0 | NUT; END C/MBR | 4 | 1103- | A | M10 | ||
| 77 | I8-97695 003-A | MEMBER; CROSS,TRUNNION RR | 2 | 1305- | A | |||
| 77 | I8-97695 003-A | MEMBER; CROSS, TRUNNION RR | 2 | 1103- | A | |||
| 530 | I8-97695 014-A | MEMBER; CROSS,T/M LWR | 1 | 1305- | A | (B) LOWER | ||
| 106 | I0-20951 450-0 | BOLT; BRKT | 10 | 1103- | A | M14X50 | ||
| 25 | I8-98010 627-1 | WASHER; PL, BRKT | 16 | 1103- | A | ID=15 | ||
| 545 | I8-97609 758-0 | SPACER; 5TH C/MBR | 2 | 1103- | A | |||
| 103 | I1-53356 059-1 | STOPPER; SUB SPR | 4 | 1103- | A | |||
| 13 | I0-28661 235-0 | BOLT; BRKT, ENG MTG | 8 | 1103- | A | M12X35 FLANGE | ||
| 34 | I8-97609 501-2 | MEMBER; CROSS, 3RD | 1 | 1103- | A | |||
| 67 | I7-05012 010-A | NUT; C/MBR | 2 | 1110- | A | M12 | ||
| 26 | I7-05014 012-A | NUT; BRKT, SPR | 20 | 1110- | A | M14 | ||
| 24 | I8-98059 203-0 | BRACKET; FRT SPR, FRT | 1 | 1103- | A | |||
| 19 | I8-97695 008-A | MEMBER; CROSS,2ND | 1 | 1305- | A | |||
| 131 | I0-50741 025-0 | BOLT; END C/MBR | 4 | 1103-1109 | A | M10X25 W/LK WASHER | ||
| 1 | I8-97522 532-A | FRAME; ASM | 1 | 1103- | A | FRR90-Q (5320) | ||
| 67 | I0-91110 512-0 | NUT; C/MBR | 2 | 1103-1109 | A | M12 | ||
| 530 | I8-97695 023-A | MEMBER; CROSS,T/M | 1 | 1305- | A | |||
| 530 | I8-97695 024-A | MEMBER; CROSS,T/M | 1 | 1305- | A | |||
| 130 | I8-97695 009-A | MEMBER; CROSS, END | 1 | 1103- | A | |||
| 2 | I8-97695 007-A | MEMBER; CROSS,1ST | 1 | 1305- | A | |||
| 345 | I8-97695 010-A | MEMBER; CROSS, 5TH | 1 | 1103- | A | |||
| 8 | I8-97609 578-1 | GUSSET; 1ST C/MBR | 1 | 1103- | A | |||
| 138 | I0-91510 614-0 | WASHER; LK, BRKT | 10 | 1103- | A | ID=14.2 | ||
| 118 | I7-05014 012-A | NUT; STOPPER | 16 | 1103-1109 | A | M14 | ||
| 98 | I0-91510 614-0 | WASHER; LK, STOPPER | 16 | 1103- | A | ID=14.2 | ||
| 344 | I8-97695 010-A | MEMBER; CROSS,4TH | 1 | 1305- | A | |||
| 23 | I0-20951 450-0 | BOLT; BRKT, SPR | 8 | 1103- | A | M14X50 | ||
| 82 | I7-05014 012-A | NUT; BRKT | 10 | 1103-1109 | A | M14 | ||
| 26 | I7-05014 012-A | NUT; BRKT, SPR | 20 | 1103-1109 | A | M14 | ||
| 24 | I8-98059 201-0 | BRACKET; FRT SPR, FRT | 1 | 1103- | A | |||
| 16 | I0-20851 440-0 | BOLT; 1ST C/MBR TO S/MBR | 2 | 1103- | A | (B) M14X40 | ||
| 27 | I0-91510 614-0 | WASHER; LK, BRKT, FRT SPR | 12 | 1103- | A | ID=14.2 | ||
| 4 | I7-05014 012-A | NUT; 1ST C/MBR TO S/MBR | 2 | 1103-1109 | A | M14 | ||
| 105 | I1-53354 074-A | BRACKET; RR SPR, RR | 1 | 1103- | A | |||
| 344 | I8-97695 010-A | MEMBER; CROSS, 4TH | 1 | 1103- | A | |||
| 82 | I7-05014 012-A | NUT; BRKT | 10 | 1110- | A | M14 | ||
| 18 | I0-91180 212-0 | NUT; BRKT, ENG MTG | 8 | 1103- | A | M12 FLANGE | ||
| 130 | I8-97695 009-A | MEMBER; CROSS,END | 1 | 1305- | A | |||
| 118 | I7-05014 012-A | NUT; STOPPER | 16 | 1110- | A | M14 | ||
| 101 | I1-53353 090-4 | BRACKET; RR S PR, FRT | 1 | 1103- | A |
