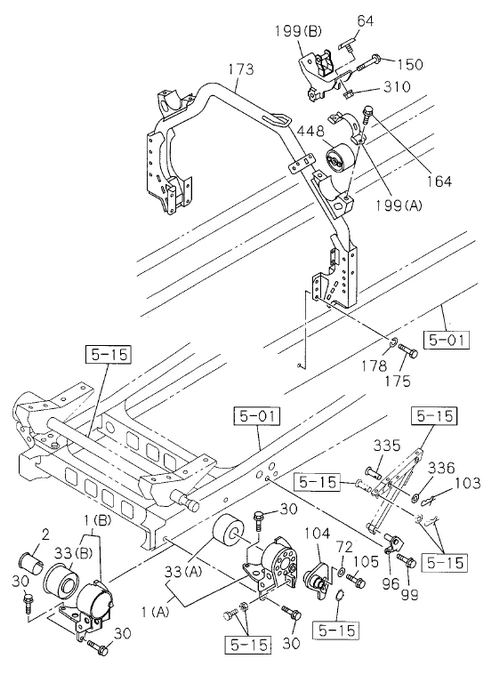

5-10 | CAB MOUNTING; FRAME SIDE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 96 | I1-62500 628-0 | BRACKET; CAB STAY | 1 | 1103- | A | |||
| 2 | I8-98010 767-A | BUSHING; TORSION BAR | 2 | 1103- | A | CAB SUSPENSION RIGID | ||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 1103- | A | M14X35 FLANGE | ||
| 448 | I8-98013 934-A | A | BUSHING; CAB MTG | 2 | 1103- | A | CAB SUSPENSION RIGID | |
| 199 | I8-98044 556-1 | BRACKET; CAB RR MTG | 2 | 1103- | A | (A) | ||
| 103 | I8-98062 280-0 | PIN; SPLIT, CAB STAY | 1 | 1103- | A | |||
| 72 | I0-91614 714-0 | WASHER; PL, BRKT TO FRAME | 1 | 1103- | A | ID=15 OD=36 | ||
| 178 | I0-91510 612-0 | WASHER; LK, MEMBER | 8 | 1103- | A | ID=12.2 | ||
| 1 | I8-98010 750-2 | BRACKET; CAB MTG | 1 | 1103- | R | A | CAB SUSPENSION RIGID (B) | |
| 335 | I1-09744 107-0 | PIN; ADJ, STAY LOCK | 1 | 1103- | A | OD=10 L=48 | ||
| 1 | I8-98010 747-2 | BRACKET; CAB MTG | 1 | 1103- | L | A | CAB SUSPENSION SEMI FLOATING (A) | |
| 199 | I8-98023 692-0 | BRACKET; CAB RR MTG | 1 | 1103- | L | A | (B) | |
| 310 | I0-91180 108-0 | NUT; CUSHION | 4 | 1103- | A | M8 FLANGE | ||
| 33 | I8-98013 932-2 | BUSHING; RUBBER, CAB MTG BRKT, FRT | 2 | 1103- | A | CAB SUSPENSION SEMI FLOATING (A) | ||
| 150 | I0-10956 400-0 | BOLT; CAB MTG RR | 2 | 1103- | A | M14X100 | ||
| 33 | I8-98013 933-1 | BUSHING; RUBBER, CAB MTG BRKT, FRT | 2 | 1103- | A | CAB SUSPENSION RIGID (B) | ||
| 2 | I8-98010 767-A | A | BUSHING; TORSION BAR | 2 | 1103- | A | CAB SUSPENSION RIGID | |
| 448 | I8-98010 759-2 | BUSHING; CAB MTG | 2 | 1103- | A | CAB SUSPENSION SEMI FLOATING | ||
| 99 | I0-28661 030-0 | BOLT; BRKT | 2 | 1103- | A | M10X30 FLANGE | ||
| 1 | I8-98056 501-2 | BRACKET; CAB MTG | 1 | 1103- | L | A | CAB SUSPENSION RIGID (B) | |
| 448 | I8-98013 934-A | BUSHING; CAB MTG | 2 | 1103- | A | CAB SUSPENSION RIGID | ||
| 64 | I8-97113 340-0 | RUBBER; CUSHION | 4 | 1103- | A | |||
| 175 | I0-20951 235-0 | BOLT; MEMBER TO FRAME | 8 | 1103- | A | M12X35 | ||
| 173 | I8-98010 756-5 | MEMBER; CAB MTG RR | 1 | 1103- | A | |||
| 164 | I0-28651 225-0 | BOLT; CUSHION RUBBER, CAB MTG | 4 | 1103- | A | M12X25 FLANGE | ||
| 199 | I8-98099 068-0 | BRACKET; CAB RR MTG | 1 | 1103- | R | A | (B) | |
| 1 | I8-98010 746-2 | BRACKET; CAB MTG | 1 | 1103- | R | A | CAB SUSPENSION SEMI FLOATING (A) | |
| 30 | I0-28861 445-0 | BOLT; CAB FRT FOOT | 10 | 1103- | A | M14X45 FLANGE | ||
| 336 | I1-09985 183-0 | WASHER; PL, STAY LOCK | 1 | 1103- | A | ID=10.5 T=2.0 | ||
| 104 | I8-98330 224-0 | BRACKET; CAB FRAME, CAB FRT MTG | 1 | 1103- | A |
