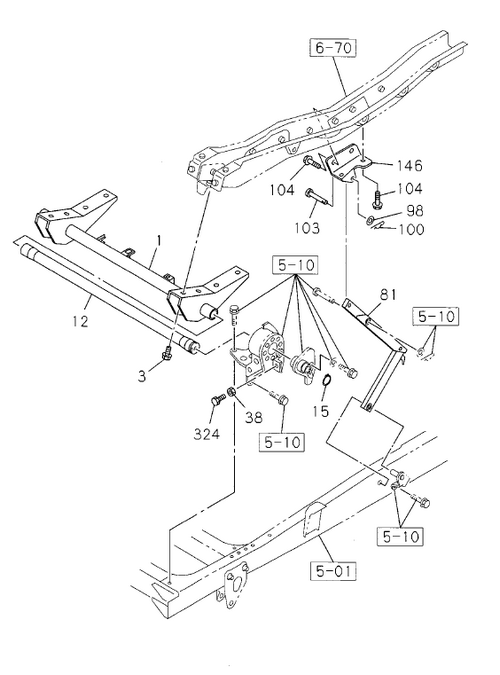

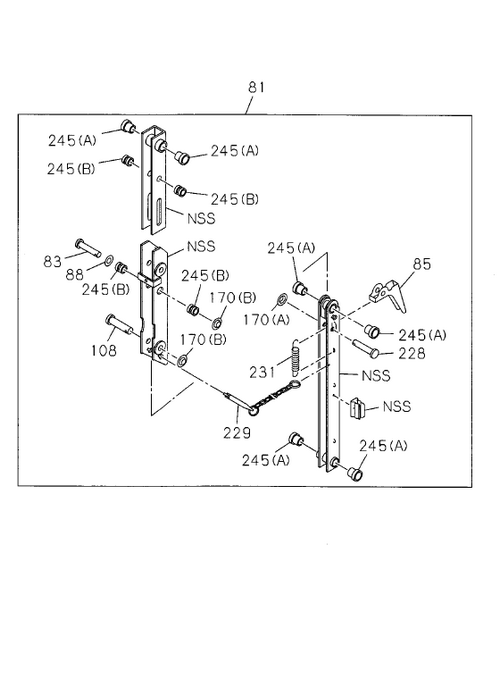

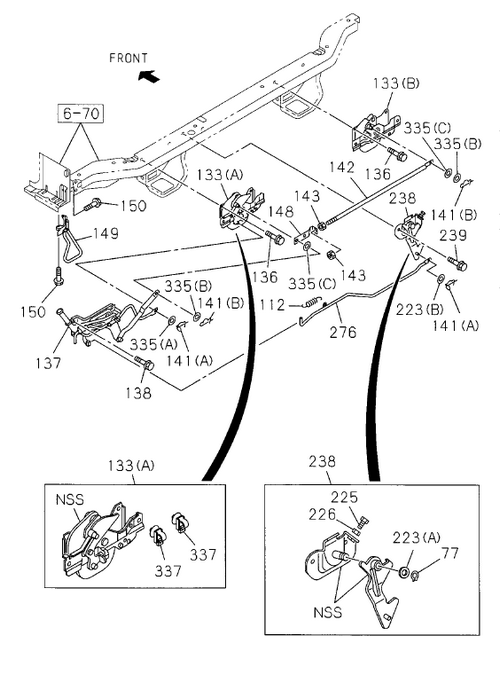

5-15 | CAB MOUNTING; CAB SIDE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 223 | I0-91610 516-0 | WASHER; PL, SAFETY | 1 | 1103- | A | (A) ID=17 OD=30 | ||
| 229 | I1-62500 517-1 | PIN ASM; SAFETY | 1 | 1103- | A | |||
| 98 | I1-09985 183-0 | WASHER; CAB STAY | 1 | 1103- | A | ID=10.5 T=2.0 | ||
| 15 | I8-97129 615-0 | RING; SNAP, TORSION BAR | 1 | 1103- | A | T=1.90 BLUE | ||
| 150 | I0-28650 820-0 | BOLT; TILT HANDLE | 3 | 1103- | A | M8X20 FLANGE ION | ||
| 170 | I8-97022 565-0 | 1103-NUT | 1 | 1103- | A | (A) ID=7.9 PUSH NUT | ||
| 324 | I8-98004 319-1 | BOLT; ADJUST | 1 | 1103- | A | IN 14X55 | ||
| 3 | I8-98090 287-1 | BOLT; LEVER | 8 | 1103- | A | M12X42 FLANGE | ||
| 223 | I0-91610 508-0 | WASHER; PL, SAFETY | 1 | 1103- | A | (B) ID=8.4 OD=16 | ||
| 81 | I8-98278 114-0 | STAY ASM; CAB TILT | 1 | 1408- | A | |||
| 136 | I0-28650 820-0 | BOLT; CAB LK | 8 | 1103- | A | M8X20 FLANGE IDN | ||
| 226 | I0-91110 508-0 | NUT; SAFETY LK | 1 | 1103- | A | M8 IDN | ||
| 141 | I8-98039 045-1 | PIN; SNAP, CAB LOCK ROD | 2 | 1103- | A | (A) L=25.3 | ||
| 228 | I1-09744 086-2 | PIN; SAFETY LOCK SPRING, CAB STAY | 1 | 1103- | A | |||
| 133 | I8-98101 514-2 | LOCK ASM; CAB | 1 | 1103- | A | (A) | ||
| 225 | I0-28050 830-0 | BOLT; SAFETY LK | 1 | 1103- | A | M8X30 FLANGE | ||
| 81 | I8-98278 114-0 | STAY ASM; CAB TILT | 1 | 1103- | A | |||
| 238 | I8-98048 899-1 | LOCK ASM; SAFETY, CAB TILT | 1 | 1103- | A | |||
| 335 | I0-91610 612-0 | WASHER; CAB LOCK ROD | 2 | 1103- | A | (B) 1D=12.5 0D=26 | ||
| 245 | I1-62500 588-0 | BUSHING; CAB STAY | 4 | 1103- | A | (B) | ||
| 108 | I1-09744 106-0 | PIN; ADJ, CAB STAY | 1 | 1103- | A | 0D=10 L=42 | ||
| 245 | I1-62500 587-0 | BUSHING; CAB STAY | 6 | 1103- | A | (A) | ||
| 149 | I7-22380 370-A | HANDLE; TILT | 1 | 1103- | A | |||
| 12 | I8-98010 945-1 | BAR; TORSION ON UPR | 1 | 1103- | A | |||
| 276 | I8-98048 830-1 | ROD ASM; CAB LOCK, HOOK TO HOOK | 1 | 1103- | AI | |||
| 141 | I8-98062 280-0 | PIN; SNAP, CAB LOCK ROD | 2 | 1103- | A | (B) | ||
| 1 | I8-98010 752-7 | LEVER; TORSION BAR | 1 | 1103- | A | |||
| 335 | I0-91610 508-0 | WASHER; CAB LOCK ROD | 1 | 1103- | A | (A) ID=8.4 0D=16 | ||
| 239 | I0-28650 820-0 | BOLT; SAFETY LK | 2 | 1103- | A | M8X20 FLANGE IDN | ||
| 77 | I0-91800 616-0 | R1NG; SNAP | 1 | 1103- | A | ID=14.7 | ||
| 85 | I1-62500 503-0 | LEVER; LOCK, CAB STAY | 1 | 1103- | A | |||
| 170 | I8-97022 566-0 | 1103-NUT | 2 | 1103- | A | (B) ID=9.9 PUSH NUT | ||
| 103 | I1-09744 108-1 | PIN; JOINT, CAB STAY | 1 | 1103- | A | |||
| 100 | I8-98039 426-1 | PIN; SNAP, CAB STAY TO CAB | 1 | 1103- | A | L=34 | ||
| 231 | I1-09583 244-0 | SPRING; RETURN, LOCK LEVER, CAB STAY | 1 | 1103- | A | |||
| 137 | I8-97584 470-5 | CONTROL UNIT; CAB LOCK | 1 | 1103- | A | |||
| 38 | I7-05014 012-A | NUT; LK | 1 | 1103-1109 | A | M14 | ||
| 133 | I8-98061 489-2 | LOCK ASM; CAB | 1 | 1103- | A | (B) | ||
| 335 | I8-98060 839-0 | WASHER; CAB LOCK ROD | 2 | 1103- | A | (C) ID=13 OD=22 IDN | ||
| 88 | I1-09985 183-0 | WASHER; PL, CAB STAY PIN | 1 | 1103- | A | ID=10.5 T=2.0 | ||
| 337 | I8-97173 307-0 | CLIP; CAB LOCK | 2 | 1103- | A | L=155 IDN | ||
| 149 | I7-22380 370-A | HANDLE; TILT | 1 | 1305- | A | |||
| 142 | I8-97587 990-0 | ROD; HOOK TO HOOK | 1 | 1103- | A | |||
| 146 | I8-98019 506-0 | BRACKET ASM; CAB STAY U PR | 1 | 1103- | A | |||
| 83 | I1-09744 106-0 | PIN; JOINT, CAB STAY | 1 | 1103- | A | OD=10 L=42 | ||
| 112 | I1-79718 655-0 | SPRING; RETURN, SAFETY ROD | 1 | 1103- | A | |||
| 143 | I0-91110 510-0 | NUT; JAW JOINT, HOOK TO HOOK | 2 | 1103- | A | M10 | ||
| 138 | I0-28650 820-0 | BOLT; CAB LOCK CONT UNIT | 4 | 1103- | A | M8X20 FLANGE ION | ||
| 38 | I7-05014 012-A | NUT; LK | 1 | 1110- | A | M14 | ||
| 104 | I0-28661 030-0 | BOLT; CAB STAY BRKT | 4 | 1103- | A | M10X30 FLANGE | ||
| 148 | I8-97410 736-0 | JOINT; JAW, HOOK TO HOOK | 1 | 1103- | A |
