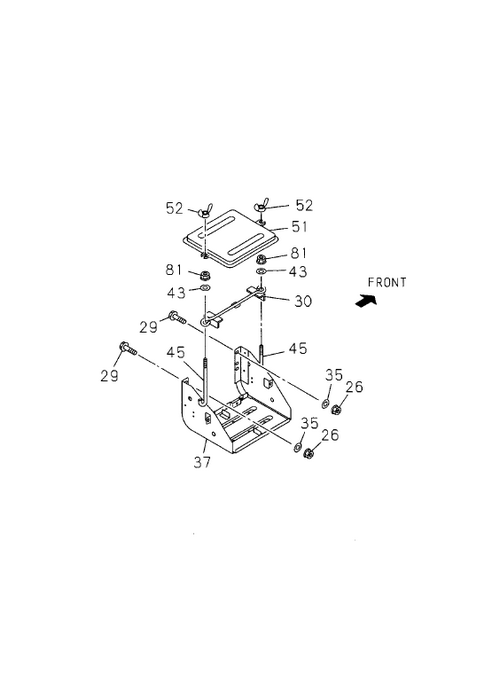

5-20 | BATTERY CARRIER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 45 | I9-53616 615-A | ROD; TENSION BATTERY | 2 | 1103- | A | IDN | ||
| 45 | I9-53616 615-A | ROD; TENSION BATTERY | 2 | 1103- | A | IDN | ||
| 51 | I8-97120 747-A | COVER; BATTERY | 1 | 1103- | A | IDN | ||
| 30 | I5-53615 004-A | PLATE; BATTERY | 1 | 1103-1412 | A | W/O EAR HOLDER; STRAIGHT | ||
| 43 | I0-91614 708-0 | WASHER; PL, CLAMP | 2 | 1103- | A | ID=8.4 OD=22 | ||
| 26 | I7-05110 010-A | NUT; BRKT | 4 | 1103- | A | M10 FLANGE | ||
| 26 | I7-05110 010-A | NUT; BRKT | 4 | 1103- | A | M10 FLANGE | ||
| 37 | I8-97695 343-A | BRACKET; BATTERY | 1 | 1103- | A | BATTERY 80426L<T111> IDN | ||
| 35 | I0-91614 610-0 | WASHER; PL, BATTERY CARRIER | 4 | 1103- | A | ID=10.5 OD=22 | ||
| 30 | I5-53615 004-B | PLATE; BATTERY | 1 | 1501- | A | |||
| 51 | I8-97120 747-A | COVER; BATTERY | 1 | 1103-1109 | A | IDN | ||
| 51 | I7-42400 207-A | COVER; BATTERY | 1 | 1110- | A | IDN | ||
| 81 | I0-91180 108-0 | NUT; BATTERY | 2 | 1103- | A | M8 FLANGE | ||
| 37 | I8-97384 068-2 | BRACKET; BATTERY | 1 | 1103- | A | BATTERY 65D23L<8EJ> IDN | ||
| 29 | I0-28651 035-0 | BOLT; BRKT TO FRAME | 4 | 1103- | A | M10X35 FLANGE IDN | ||
| 52 | I0-91118 408-0 | NUT; WING, COVER FIX | 2 | 1103- | A | M8 WING NUT IDN |
