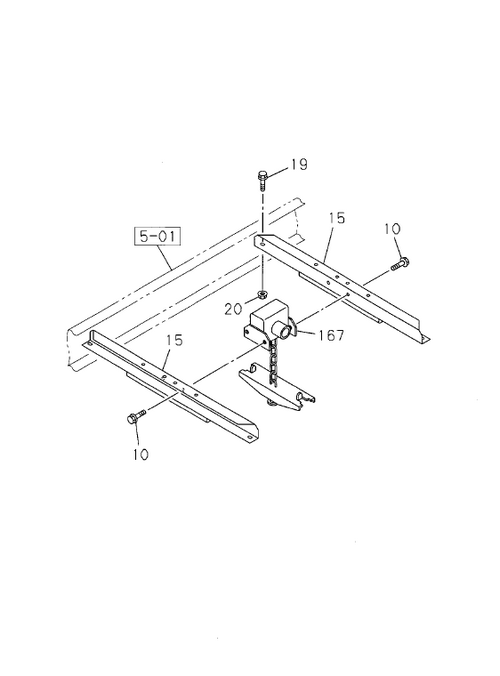

5-30 | SPARE TIRE CARRIER AND COVER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I0-28051 025-0 | BOLT; C/MBR | 4 | 1103- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M10X25 FLANGE | ||
| 15 | I8-98044 388-0 | MEMBER; CROSS, SPARE TIRE | 2 | 1103- | A | PARE WHEEL CARRIER FRAME REAR(P10) | ||
| 20 | I7-05110 010-A | C | NUT; C/MBR | 4 | 1103- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M10 FLANGE | |
| 167 | I8-98036 383-0 | HANGER; TIRE | 1 | 1103- | A | SPARE WHEEL CARRIER FRAME REAR(P10) | ||
| 10 | I0-28650 820-0 | BOLT; TIRE HANGER | 4 | 1103- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M8X20 FLANGE IDN | ||
| 20 | I7-05110 010-A | NUT; C/MBR | 4 | 1103- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M10 FLANGE |
