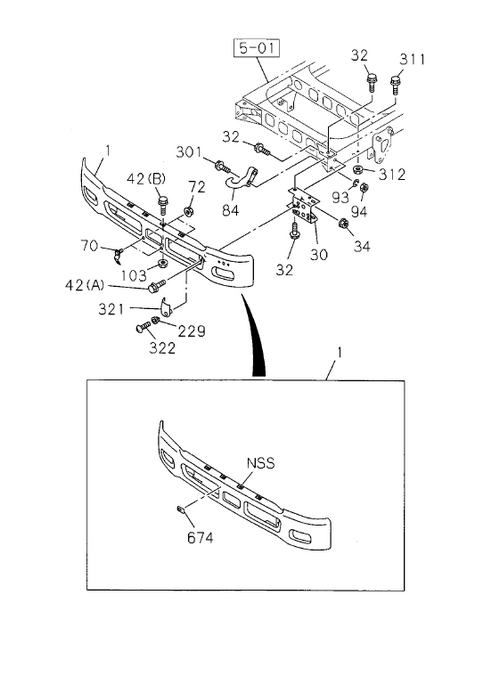

6-01 | FRONT BUMPER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 30 | I8-97611 516-4 | BRACKET; FRT BUMPER | 1 | 1103- | A | |||
| 321 | I8-97616 294-0 | COVER; BUMPER FRT SIDE | 1 | 1103- | A | |||
| 301 | I0-10861 460-0 | BOLT; HOOK TO FRAME | 2 | 1103- | A | M14X60 | ||
| 42 | I8-94324 205-0 | BOLT; BUMPER | 4 | 1103- | A | (A) M10X30 | ||
| 674 | I8-97611 491-1 | BRACKET; BUMPER, | 1 | 1103- | A | |||
| 42 | I8-98098 459-0 | BOLT; BUMPER | 4 | 1103- | A | (B) M6X16 FLANGE | ||
| 312 | I0-91180 214-0 | NUT; BRKT | 2 | 1103- | A | M14 FLANGE | ||
| 94 | I7-05014 012-A | NUT; HOOK | 2 | 1103-1109 | A | M14 | ||
| 103 | I0-91180 106-0 | NUT; BUMPER STEP | 4 | 1103- | A | M6 FLANGE | ||
| 34 | I7-05110 010-A | NUT; BRKT, BUMPER | 2 | 1103- | A | M10 FLANGE | ||
| 94 | I7-05014 012-A | NUT; HOOK | 2 | 1110- | A | M14 | ||
| 311 | I0-28851 445-0 | BOLT; BRKT | 2 | 1103- | A | M14X45 FLANGE | ||
| 229 | I5-09983 007-0 | GROMMET | 2 | 1103- | A | |||
| 32 | I0-28651 035-0 | BOLT; BRKT, BUMPER | 6 | 1103- | A | M10X35 FLANGE IDN | ||
| 30 | I8-97611 515-4 | BRACKET; FRT BUMPER | 1 | 1103- | A | |||
| 321 | I8-97616 293-0 | COVER; BUMPER FRT SIDE | 1 | 1103- | A | |||
| 70 | I8-97611 492-1 | BRACKET; LICENSE PLATE, FRT | 2 | 1103- | A | |||
| 84 | I8-98035 644-1 | HOOK | 1 | 1103- L | A | |||
| 34 | I7-05110 010-A | NUT; BRKT, BUMPER | 2 | 1103- | A | M10 FLANGE | ||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 1103- | A | M5X16 TAPPING | ||
| 1 | I8-97407 725-3 | BUMPER ASM; FRT | 1 | 1103- | A | WHITE | ||
| 72 | I0-91180 106-0 | NUT; BRKT | 2 | 1103- | A | M6 FLANGE | ||
| 93 | I0-91510 814-0 | WASHER; LK, HOOK | 2 | 1103- | A | ID=14.2 |
