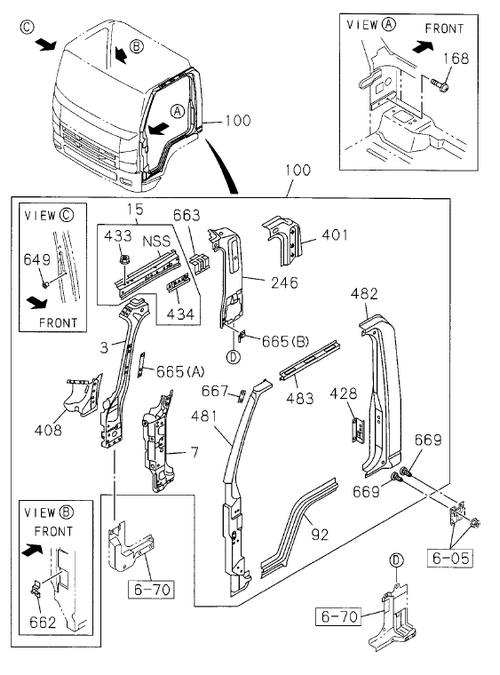

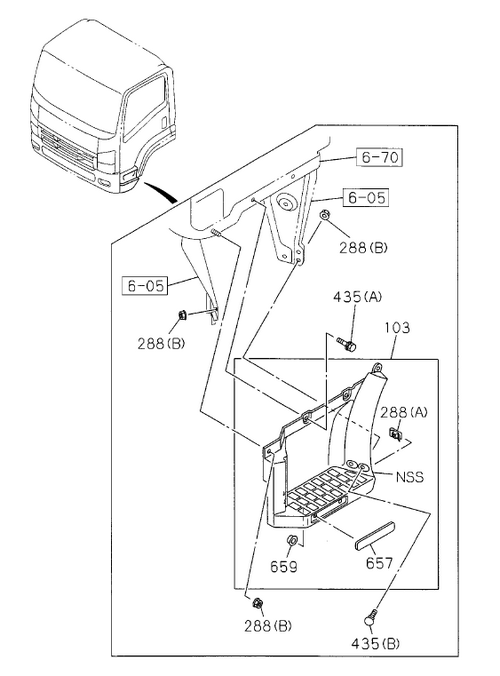

6-20 | SIDE PANEL AND STEP
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 435 | I8-98059 720-0 | BOLT; RR STEP | 4 | 1103- | A | (A) M8X24.5 W/LK&PL WASHER | ||
| 483 | I8-98055 460-0 | PANEL; SIDE CANTRA I L | 1 | 1103- | A | |||
| 408 | I8-97586 194-2 | GUSSET; PILLAR | 1 | 1103- | A | |||
| 481 | I8-98055 471-0 | PANEL; SIDE FRT PILLAR | 1 | 1103- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||
| 246 | I8-97585 301-3 | PANEL; RR PILLAR, INNER | 1 | 1103- | A | |||
| 7 | I8-97585 244-4 | REINFORCEMENT; HINGE | 1 | 1103- | A | |||
| 103 | I8-98037 327-4 | PLATE; STEP | 1 | 1103-2012 | A | |||
| 659 | I8-97811 510-0 | CLIP; SPRING NUT | 4 | 1103- | A | |||
| 435 | I8-98146 670-0 | BOLT; RR STEP | 8 | 1110- | A | (B) M8X18 | ||
| 288 | I8-98040 792-0 | NUT; STEP | 2 | 1103- | A | (A) M8 | ||
| 408 | I8-97586 193-3 | GUSSET; PILLAR | 1 | 1103- | A | |||
| 663 | I8-97585 208-2 | BRACKET; AIR | 1 | 1103- | A | |||
| 665 | I8-97585 314-0 | REINFORECEMENT; GRIP, ASSIST | 2 | 1103- | A | (A) | ||
| 401 | I8-97585 303-2 | PATCH; CLOSING , FRT PILLAR | 1 | 1103- | A | |||
| 401 | I8-98065 791-0 | PATCH; CLOSING , FRT PILLAR | 1 | 1103- | A | |||
| 100 | I8-98185 954-0 | PANEL ASM; BODY SIDE | 1 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 663 | I8-97585 207-2 | BRACKET; AIR | 1 | 1103- | A | |||
| 103 | I8-98037 329-4 | PLATE; STEP | 1 | 1103-2012 | A | |||
| 433 | I9-09114 086-0 | NUT; HEADER SHELF | 4 | 1103- | A | M6 | ||
| 3 | I8-98058 236-1 | PANEL; CLOSING , FRT PILLAR | 1 | 1103- | A | |||
| 481 | I8-98055 453-0 | PANEL; SIDE FRT PILLAR | 1 | 1103- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||
| 92 | I8-98055 461-1 | PANEL; SIDE SILL, CAB | 1 | 1103- | A | |||
| 434 | I8-98039 019-0 | PATCH; ASSIST GRIP | 1 | 1103- | A | |||
| 481 | I8-98092 915-0 | PANEL; SIDE FRT PILLAR | 1 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 3 | I8-98058 237-1 | PANEL; CLOSING , FRT PILLAR | 1 | 1103- | A | |||
| 481 | I8-98093 580-0 | PANEL; SIDE FRT PILLAR | 1 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 483 | I8-98055 458-0 | PANEL; SIDE CANTRA I L | 1 | 1103- | A | |||
| 7 | I8-97585 244-4 | REINFORCEMENT; HINGE | 1 | 1103- | A | |||
| 434 | I8-98039 020-0 | PATCH; ASSIST GRIP | 1 | 1103- | A | |||
| 7 | I8-97585 240-3 | REINFORCEMENT; HINGE | 1 | 1103- | A | |||
| 665 | I8-98012 287-1 | REINFORECEMENT; GRIP, ASSIST | 2 | 1103- | A | (B) | ||
| 428 | I8-97585 261-4 | REINFORCEMENT; DOOR STRIKER | 1 | 1103- | A | |||
| 669 | I8-98013 113-1 | STUD; FENDER | 4 | 1103- | A | M6X18 | ||
| 100 | I8-97586 027-6 | PANEL ASM; BODY SIDE | 1 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 482 | I8-98055 466-1 | PANEL; SIDE RR PILLAR | 1 | 1103- | A | |||
| 657 | I8-97378 910-0 | REFLECTOR; REFLEX | 2 | 1103- | A | |||
| 246 | I8-97586 154-3 | PANEL; RR PILLAR, INNER | 1 | 1103- | A | |||
| 428 | I8-97585 260-4 | REINFORCEMENT; DOOR STRIKER | 1 | 1103- | A | |||
| 662 | I8-97584 611-1 | BRACKET; DUCT | 1 | 1103- | A | |||
| 435 | I8-98146 670-0 | BOLT; RR STEP | 8 | 1103-1109 | A | (B) M8X18 | ||
| 288 | I0-91180 108-0 | NUT; STEP | 10 | 1103- | A | (B) M8 FLANGE | ||
| 92 | I8-98055 462-1 | PANEL; SIDE SILL, CAB | 1 | 1103- | A | |||
| 15 | I8-97585 293-2 | PANEL; CANT RA IL SIDE | 1 | 1103- | A | |||
| 15 | I8-97585 292-2 | PANEL; CANT RA IL SIDE | 1 | 1103- | A | |||
| 482 | I8-98055 467-1 | PANEL; SIDE RR PILLAR | 1 | 1103- | A | |||
| 7 | I8-97585 240-3 | REINFORCEMENT; HINGE | 1 | 1103- | A | |||
| 100 | I8-98103 332-1 | PANEL ASM; BODY SIDE | 1 | 1103- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||
| 168 | I0-38050 612-0 | BODY SIDE | 8 | 1103- | A | M6X12 HEXALOBULAR SOCKET | ||
| 667 | I8-98109 948-0 | BRACKET; MIRROR | NULL | 1103- | A | |||
| 649 | I8-97249 574-0 | NUT; POP | 2 | 1103- | A | 1115 POP NUT | ||
| 103 | I8-98058 318-3 | PLATE; STEP | 1 | 2101- | A | |||
| 100 | I8-97586 028-6 | PANEL ASM; BODY SIDE | 1 | 1103- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||
| 103 | I8-98058 319-3 | PLATE; STEP | 1 | 2101- | A |
