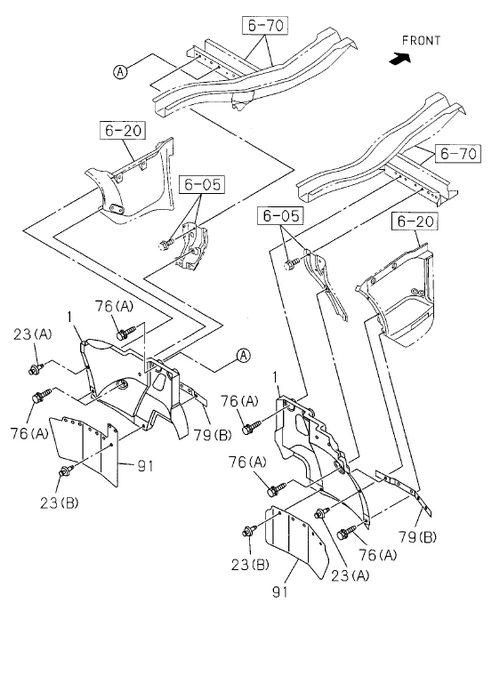

6-47 | IMUD GUARD AND INSULATOR
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98152 646-0 | GUARD; MUD, FRT | 1 | 1103-1711 | A | |||
| 3 | I8-98196 103-0 | GUARD; MUD, RR | 1 | 1103- L | A | |||
| 79 | I1-79931 484-A | RETAINER;' MUD COVER | 1 | 1103- | A | (A) | ||
| 23 | I1-09987 248-1 | FASTENER; MUD COVER | 4 | 1103- | A | ( A) D8X13.5 | ||
| 96 | I1-79931 479-3 | STAY; MUD GUARD | 1 | 1103- | A | |||
| 79 | I1-79931 484-A | RETAINER;' MUD COVER | 1 | 1103- | A | (A) | ||
| 32 | I8-97329 625-0 | NUT; MUD GUARD | 2 | 1103- | A | M8 W/D I SHED WASHER | ||
| 79 | I8-98105 000-A | RETAINER;' MUD COVER | 1 | 1103- | A | (C) | ||
| 91 | I8-98093 464-0 | COVER; MUD, FRT | 1 | 1103- | A | |||
| 254 | I8-98039 918-1 | COVER; MUD, VALANCE | NULL | 1103- | NULL | A | ||
| 1 | I8-97484 004-0 | GUARD; MUD, FRT | 1 | 1103-1711 | A | |||
| 92 | I0-91180 106-0 | NUT; MUD COVER | 6 | 1103- | A | M6 FLANGE | ||
| 3 | I8-98196 103-0 | GUARD; MUD, RR | 1 | 1103- | A | |||
| 139 | I8-98090 077-0 | PANEL; SIDE | 1 | 1103- | A | |||
| 135 | I1-53457 191-0 | BRACKET; SIDE PANEL | 2 | 1103- | A | |||
| 33 | I1-09980 495-0 | BOLT; MUD COVER | 6 | 1103- | A | M6X20 W/LK&PL WASHER | ||
| 139 | I8-98090 078-0 | PANEL; SIDE | 1 | 1103- | A | |||
| 23 | I1-09470 001-0 | FASTENER; MUD COVER | 8 | 1103- | A | (B) | ||
| 192 | I8-98041 156-2 | SEAL; MUD COVER | 1 | 1103- | A | |||
| 2 | I1-79931 482-0 | COVER; MUD, TIRE RR | 2 | 1103- | A | |||
| 76 | I8-94331 747-1 | BOLT; MUD GUARD | 8 | 1103- | A | ( A) M8X25 W/LK&PL WASHER | ||
| 254 | I8-98039 917-2 | COVER; MUD, VALANCE | NULL | 1103- | NULL | A | ||
| 3 | I8-98219 764-0 | GUARD; MUD, RR | 1 | 1103- R | A | |||
| 91 | I8-97672 608-0 | COVER; MUD, FRT | 1 | 2008- | A | |||
| 1 | I8-97484 004-0 | GUARD; MUD, FRT | 1 | 1712- | A | |||
| 680 | I1-79931 477-1 | GUARD; MUD, UPPER | NULL | 1103- | NULL | A | ||
| 79 | I8-98105 000-A | RETAINER;' MUD COVER | 1 | 1103- | A | (C) | ||
| 97 | I0-28651 030-0 | BOLT; STAY TO FRAME | 7 | 1103- | A | M10X30 FLANGE | ||
| 76 | I1-09030 093-0 | BOLT; MUD GUARD | 8 | 1103-1211 | A | (B) M8X25 W/LK&PL WASHER | ||
| 192 | I8-98041 157-2 | SEAL; MUD COVER | 1 | 1103- | A | |||
| 79 | I8-98041 217-1 | RETAINER;' MUD COVER | 2 | 1103- | A | (B) | ||
| 1 | I8-97484 003-0 | GUARD; MUD, FRT | 1 | 1712- | A | |||
| 91 | I8-97672 607-0 | COVER; MUD, FRT | 1 | 2008- | A | |||
| 3 | I8-98219 764-0 | GUARD; MUD, RR | 1 | 1103- R | A | |||
| 76 | I1-09030 095-0 | BOLT; MUD GUARD | 8 | 1212- | A | (B) M8X30 W/LK&PL WASHER | ||
| 140 | I1-09030 095-0 | BOLT; SIDE PANEL | 10 | 1103- | A | M8X30 W/LK&PL WASHER | ||
| 225 | I8-97329 625-0 | NUT; MUD GUARD | 2 | 1103- | A | (B) MEC W/DISHED WASHER | ||
| 225 | I0-91180 108-0 | NUT; MUD GUARD | 2 | 1103- | A | ( A) M8 FLANGE | ||
| 181 | I8-98059 720-0 | BOLT; COVER, SIDE | 12 | 1103- | A | 88X24.5 W/LK&PL WASHER | ||
| 219 | I8-98041 148-1 | FLAP; MUD GUARD | 2 | 1103- | A | |||
| 91 | I8-98093 463-0 | COVER; MUD, FRT | 1 | 1103- | A | |||
| 96 | I8-98066 745-2 | STAY; MUD GUARD | 1 | 1103- | A | |||
| 218 | I1-09987 248-1 | FASTENER; RUBBER | 8 | 1103- | A | D8X13.5 |
