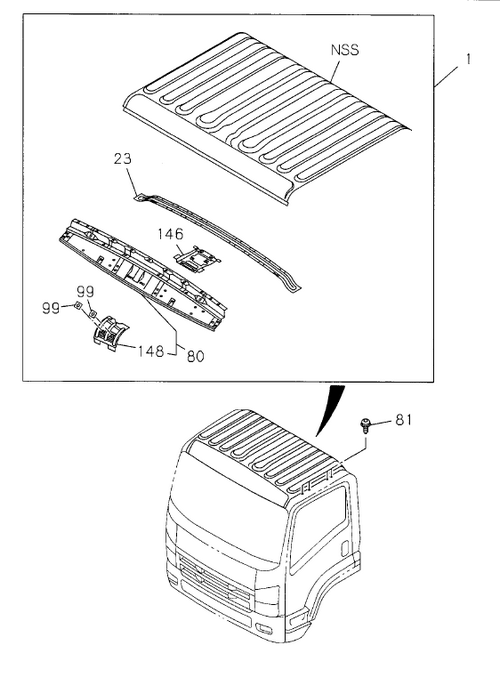

6-60 | ROOF PANEL
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 80 | I8-97584 191-3 | PANEL; HEADER, ROOF | 1 | 1103- | A | |||
| 148 | I8-97411 015-1 | REINFORCEMENT; MIRROR | 1 | 1103- | A | |||
| 146 | I8-98075 827-0 | REINFORCEMENT; ROOM LAMP | 1 | 1103- | A | |||
| 81 | I8-98141 874-0 | BOLT; ROOF | 8 | 1103- | A | M8X15.5 HEX SOCKET | ||
| 99 | I1-61281 380-2 | SEAL; BODY, METAL | 2 | 1103- | A | 30X30 ID=20 T-0.7 | ||
| 23 | I8-98019 310-0 | REINFORCEMENT; ROOF PANEL, FRT | 1 | 1103- | A | |||
| 1 | I8-98158 310-0 | PANEL; ROOF | 1 | 1103- | A |
