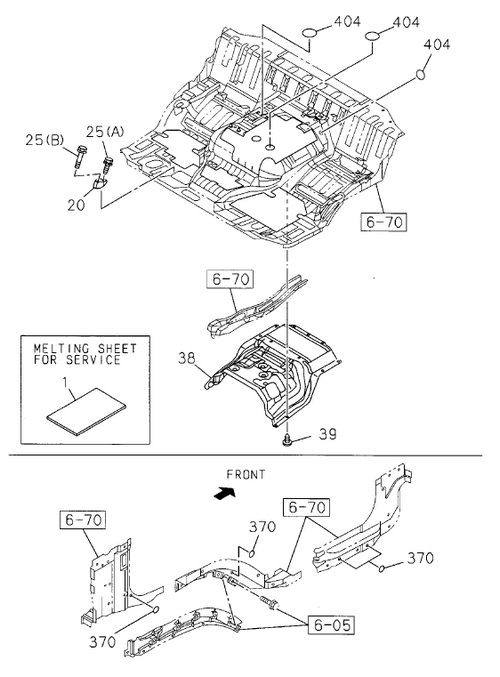

6-76 | FLOOR EQUIPMENT AND SEALING
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 404 | I1-76798 029-0 | SEAL; FLOOR, HOLE | 2 | 1110- | A | OD=25 BLACK | ||
| 38 | I8-98248 305-0 | INSULATOR; ENG COVER | 1 | 1103- | A | |||
| 404 | I1-76798 029-0 | SEAL; FLOOR, HOLE | 12 | 1110- | A | OD=25 BLACK | ||
| 39 | I8-97808 623-0 | CLIP; INSULATOR, COVER | 17 | 1103- | A | ID=6.2 L=11.4 | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR, HOLE | 12 | 1103-1109 | A | OD=25 BLACK | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR, HOLE | 2 | 1103-1109 | A | OD=25 BLACK | ||
| 20 | I1-73907 176-1 | REST; FOOT | 1 | 1103- | A | |||
| 1 | I8-94262 093-0 | SHEET; MELTING, FLOOR | NULL | 1103- | A | NON ASBESTOS 1000)(600 T=1.5; | ||
| 25 | I8-94407 876-1 | SCREW; FOOT REST | 1 | 1103- | A | (B) M6X47 | ||
| 370 | I8-98230 420-0 | SEAL; LOCATION HOLE | 8 | 1103-1211 | A | OD=30 T=1.0 | ||
| 370 | I8-98230 420-0 | SEAL; LOCATION HOLE | 8 | 1212- | A | OD=30 T=0.8 | ||
| 25 | I8-94279 201-0 | SCREW; FOOT REST | 1 | 1103- | A | (A) BOLT M6X19.5 W/LK&PL WASHER |
