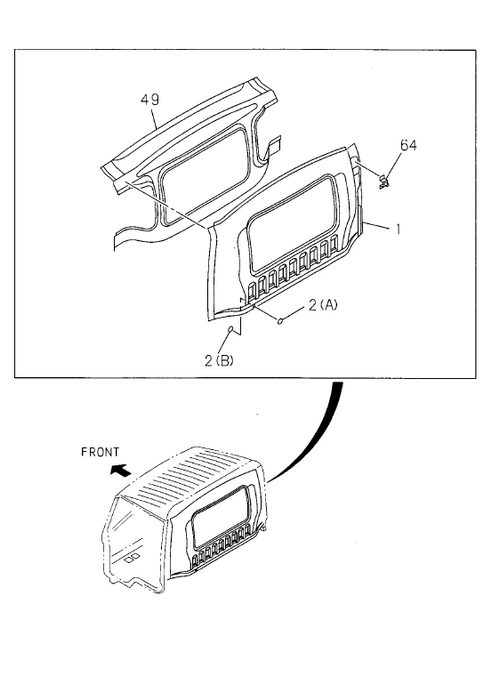

6-80 | BACK PANEL
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | I8-97584 609-3 | PANEL; BACK INNER | 1 | 1103- | A | |||
| 2 | I1-76798 029-0 | GROMMET; LOCATION PANEL | 2 | 1103-1109 | A | (A) OD=25 BLACK | ||
| 64 | I8-97584 611-1 | BRACKET; AIR INTAKE DUCT | 1 | 1103- | A | |||
| 2 | I1-76798 029-0 | GROMMET; LOCATION PANEL | 2 | 1110- | A | (A) OD=25 BLACK | ||
| 2 | I5-76777 035-0 | GROMMET; LOCATION PANEL | 2 | 1103- | A | (B) OD=36 T=0.05 BLACK IDN | ||
| 1 | I8-97584 312-3 | PANEL; BACK OUTER | 1 | 1103- | A | HOLE, BACK |
