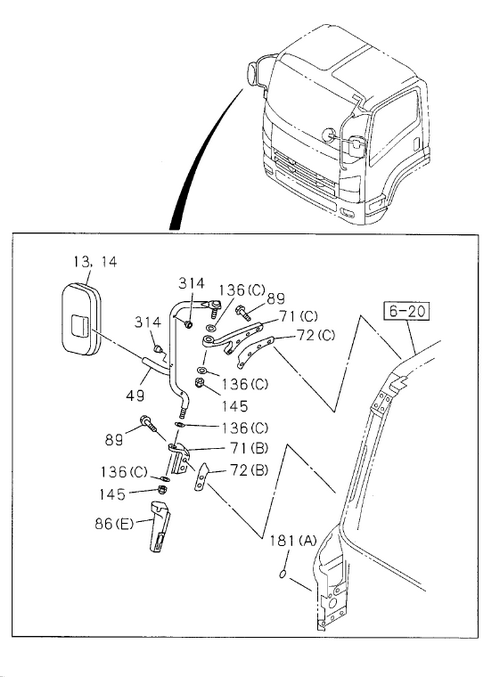

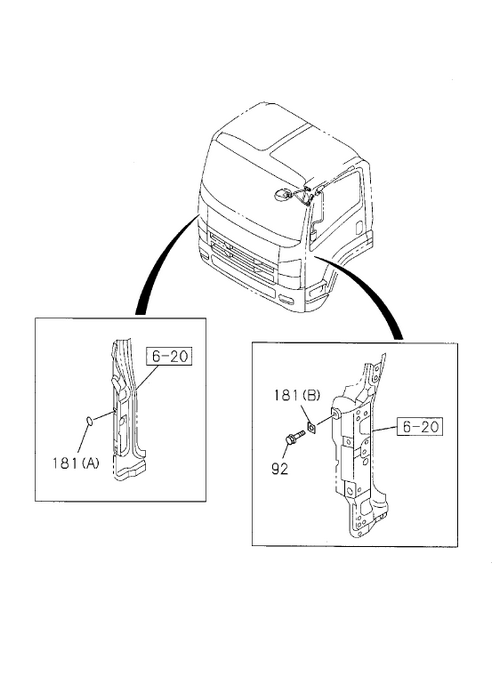

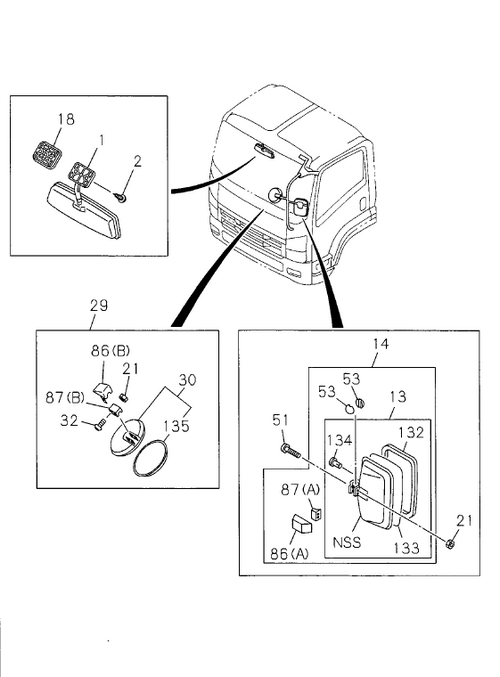

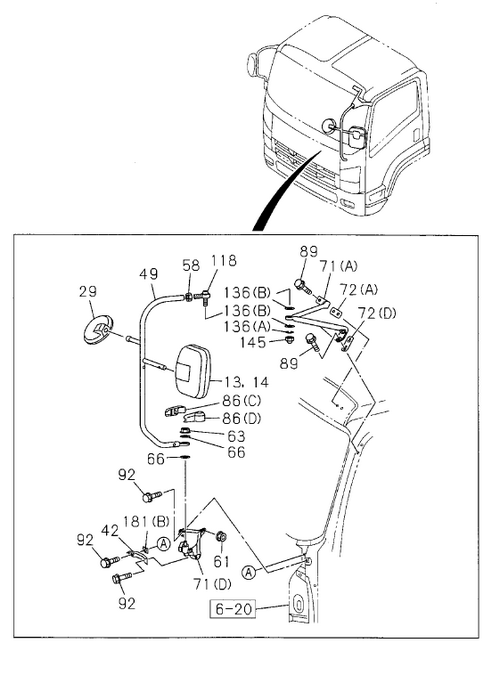

7-20 | MIRROR AND MIRROR STAY
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98097 534-1 | MIRROR; ROOM | 1 | 1103- | A | DARK GRAY | ||
| 61 | I0-91180 108-0 | NUT; STAY, OUTSIDE M I RROR | 1 | 1103- | A | MB FLANGE | ||
| 87 | I1-71737 646-2 | SPACER | 1 | 1103- | A | (B) | ||
| 53 | I1-71736 489-2 | PIVOT; SIDE MIRROR | 4 | 1103-1109 | A | ID=22.2 | ||
| 63 | I8-98174 339-0 | NUT; STAY | 1 | 1103- | A | M14 TOUGH LOCK NUT W/FLANGE | ||
| 71 | I8-98201 957-A | BRACKET; OUTSIDE MIRROR | 1 | 1103- | A | (D) | ||
| 66 | I0-91610 614-0 | WASHER; PL | 1 | 1103- | A | LOWER | ||
| 66 | I8-98201 756-0 | WASHER; PL | 1 | 1103- | A | UPPER | ||
| 72 | I8-98040 353-1 | SHEET | 1 | 1103- | A | (B) | ||
| 14 | I1-71707 152-1 | MIRROR ASM; OUTSIDE | NULL | 1103-1109 | A | PIVOT ID=22.2 | ||
| 71 | I8-98040 543-1 | BRACKET; OUTSIDE MIRROR | 1 | 1103- | A | (B) | ||
| 86 | I8-98040 546-1 | COVER; STAY, OUTSIDE MIRROR | 1 | 1103- | A | ( D) | ||
| 49 | I8-97695 098-A | STAY; MIRROR SIDE | 1 | 1103- | A | |||
| 145 | I8-98336 271-0 | NUT; CAP, SUB STAY | 3 | 1103- | A | M10 | ||
| 136 | I1-09985 184-0 | WASHER; LK, BRKT, M I RROR STAY | 2 | 1103- | A | (B) ID=10.5 OD=26 1=2.6 | ||
| 314 | I8-94314 317-0 | BUFFER; STOPPER | 2 | 1103- | A | |||
| 72 | I8-98040 351-0 | SHEET | 1 | 1103- | A | ( C) | ||
| 42 | I8-98070 643-0 | ATTACHMENT; OUTSIDE MIRROR | 1 | 1103- | A | |||
| 66 | I8-98201 756-0 | WASHER; PL | 1 | 1103- | A | UPPER | ||
| 118 | I8-97516 042-0 | JOINT ASM; BALL | 1 | 1103- | A | |||
| 132 | I1-71737 933-0 | RING; MIRROR | 1 | 1103- | A | |||
| 181 | I1-76798 029-0 | SEAL; BRKT | 1 | 1103-1109 | A | (A) OD=25 BLACK | ||
| 89 | I8-98067 249-2 | SCREW; BRKT, OUTS I DE MIRROR | 10 | 1103- | A | M8X26 W/PL WASHER | ||
| 92 | I8-98076 109-0 | BOLT; STAY BRKT, M I RROR | 4 | 1103- | A | M8X16 FLANGE | ||
| 133 | I1-71737 926-0 | LENS; M I RROR OUTSIDE | 1 | 1103- | A | |||
| 13 | I1-71737 917-3 | MIRROR ASM; OUTSIDE RR VIEW | 1 | 1103-1109 | A | |||
| 32 | I1-71737 797-0 | SCREW; UNDER MIRROR | 2 | 1103- | A | M5X40 W/PL WASHER | ||
| 21 | I0-91110 505-0 | NUT; MIRROR | 4 | 1110- | A | M5 | ||
| 132 | I1-71737 934-0 | RING; MIRROR | 1 | 1103- | A | |||
| 21 | I0-91110 505-0 | NUT; MIRROR | 4 | 1103-1109 | A | M5 | ||
| 18 | I8-97408 241-0 | CLIP; MIRROR | 1 | 1103- | A | DARK GRAY | ||
| 181 | I1-76798 029-0 | SEAL; BRKT | 1 | 1110- | A | (A) OD=25 BLACK | ||
| 49 | I8-97695 050-A | STAY; MIRROR SIDE | 1 | 1103- | A | |||
| 49 | I8-97695 050-A | STAY; MIRROR SIDE | 1 | 1103- | A | |||
| 145 | I1-09984 134-0 | NUT; CAP, SUB STAY | 3 | 1103- | A | M10 | ||
| 86 | I8-98040 541-1 | COVER; STAY, OUTSIDE MIRROR | 1 | 1103- | A | (E) | ||
| 71 | I8-98040 021-0 | BRACKET; OUTSIDE MIRROR | 1 | 1103- | A | (C) | ||
| 53 | I1-71736 489-2 | PIVOT; SIDE MIRROR | 4 | 1110- | A | ID=22.2 | ||
| 133 | I1-71737 927-0 | LENS; M I RROR OUTSIDE | 1 | 1103- | A | |||
| 51 | I1-09981 541-0 | SCREW; MIRROR | 4 | 1103- | A | |||
| 86 | I1-71737 649-1 | COVER; STAY, OUTSIDE MIRROR | 1 | 1110- | A | (B) BLACK | ||
| 21 | I0-91110 505-0 | NUT; MIRROR | 2 | 1110- | A | M5 | ||
| 87 | I1-71737 704-0 | SPACER | 2 | 1103- | A | (A) | ||
| 86 | I8-98040 545-1 | COVER; STAY, OUTSIDE MIRROR | 1 | 1103- | A | (C) | ||
| 181 | I8-97856 616-0 | SEAL; BRKT | 1 | 1110- | A | (B) 25X25 | ||
| 181 | I8-97856 616-0 | SEAL; BRKT | 1 | 1103-1109 | A | (B) 25X25 | ||
| 136 | I1-09985 345-0 | WASHER; LK, BRKT, M I RROR STAY | 1 | 1103-1109 | A | (A) ID=10 | ||
| 72 | I8-98040 537-1 | SHEET | 1 | 1103- | A | (A) | ||
| 71 | I8-98201 957-A | BRACKET; OUTSIDE MIRROR | 1 | 1103- | A | (D) | ||
| 13 | I1-71737 917-3 | MIRROR ASM; OUTSIDE RR VIEW | 1 | 1110- | A | |||
| 30 | I1-71798 422-A | MIRROR; UNDER | 1 | 1103- | A | |||
| 134 | I1-71737 936-0 | CL IP; MI RROR LENS | 2 | 1103- | A | |||
| 49 | I8-97695 098-A | STAY; MIRROR SIDE | 1 | 1103- | A | |||
| 136 | I1-09985 204-0 | WASHER; LK, BRKT, M I RROR STAY | 4 | 1103- | A | (C) ID=10.5 OD=26 1=2.6 | ||
| 71 | I8-98040 022-1 | BRACKET; OUTSIDE MIRROR | 1 | 1103- | A | ( A) | ||
| 135 | I1-71798 838-0 | LENS; M I RROR S I DE UNDER | 1 | 1103- | A | |||
| 72 | I8-98040 535-0 | SHEET | 1 | 1103- | A | (D) | ||
| 2 | I8-98033 674-0 | SCREW; MIRROR TO BODY | 2 | 1103- | A | M6X26 | ||
| 13 | I1-71737 918-3 | MIRROR ASM; OUTSIDE RR VIEW | 1 | 1103- | A | |||
| 86 | I1-71737 649-1 | COVER; STAY, OUTSIDE MIRROR | 1 | 1103-1109 | A | (B) BLACK | ||
| 58 | I8-98061 883-0 | NUT; MIRROR STAY | 1 | 1103- | A | |||
| 136 | I1-09985 345-0 | WASHER; LK, BRKT, M I RROR STAY | 1 | 1110- | A | (A) ID=10 | ||
| 86 | I1-71737 760-1 | COVER; STAY, OUTSIDE MIRROR | 2 | 1103- | A | (A) BLACK | ||
| 14 | I1-71737 922-1 | MIRROR ASM; OUTSIDE | 1 | 1103-1109 | A | PIVOT ID=22.2 | ||
| 14 | I1-71707 152-1 | MIRROR ASM; OUTSIDE | NULL | 1110- | A | PIVOT ID=22.2 | ||
| 21 | I0-91110 505-0 | NUT; MIRROR | 2 | 1103-1109 | A | M5 |
