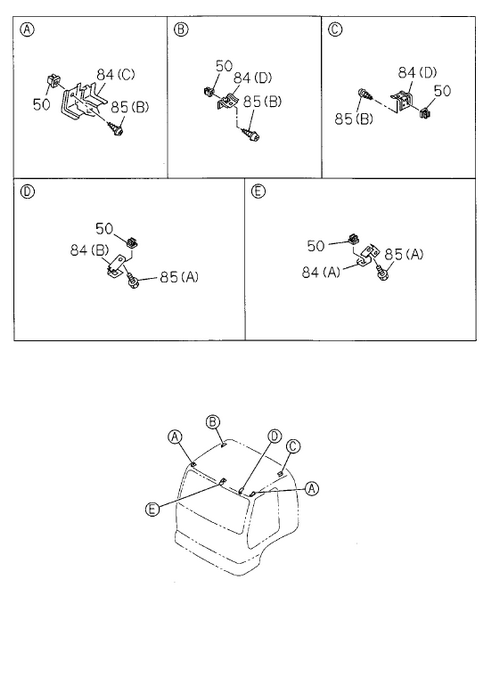

7-70 | SEPARATER AND BED
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 84 | I8-98049 290-1 | BRACKET; CURTAIN | 1 | 1103- | A | (A) | ||
| 50 | I8-94279 078-A | C | GROMMET; SCREW, CURTAIN RAIL | 4 | 1103-1109 | A | D=8.5X8.5 L=7.5 IDN | |
| 85 | I5-09981 093-0 | C | SCREW; BRKT | 4 | 1103-1109 | A | (B) M5X20 | |
| 84 | I8-98042 152-0 | BRACKET; CURTAIN | 2 | 1103- | A | (D) | ||
| 84 | I8-98074 740-0 | BRACKET; CURTAIN | 1 | 1103- | A | (B) | ||
| 85 | I8-97108 669-0 | SCREW; BRKT | 2 | 1103- | A | (A) M6X12 FLANGE | ||
| 84 | I8-98028 326-1 | BRACKET; CURTAIN | 2 | 1103- | A | (C) | ||
| 85 | I5-09981 093-0 | SCREW; BRKT | 4 | 1110- | A | (B) M5X20 | ||
| 50 | I8-94279 078-A | GROMMET; SCREW, CURTAIN RAIL | 4 | 1110- | A | D=8.5X8.5 L=7.5 IDN |
