8-01 | LAMP; FRONT AND FRONT SIDE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

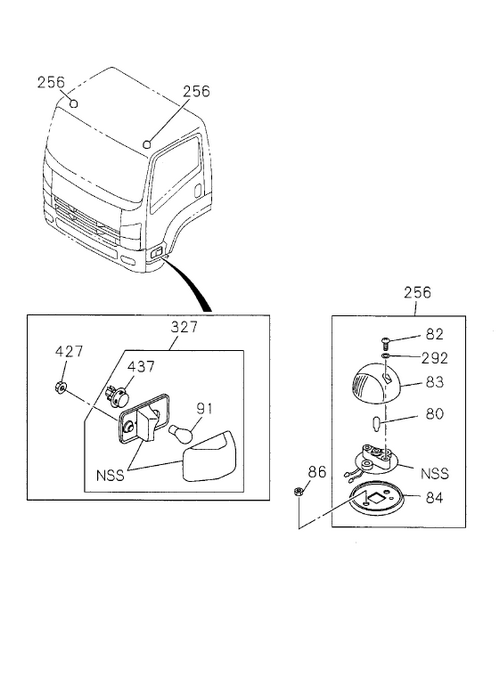

| 292 | I1-82219 012-0 | WASHER; MARKER LAMP | 4 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||

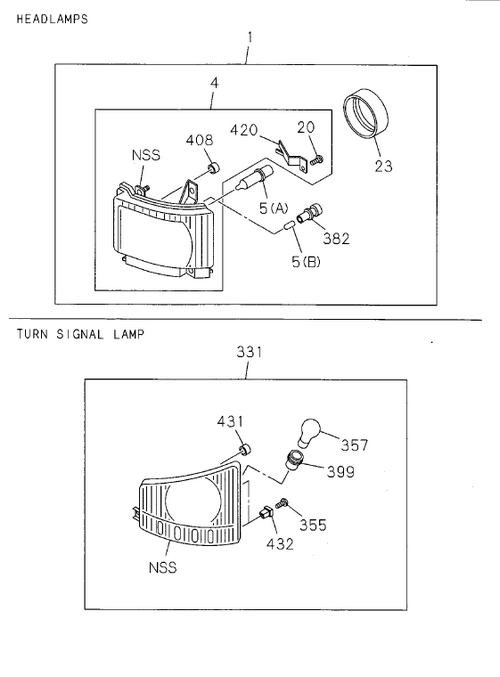

| 4 | I8-98226 182-0 | HEADLAMP UNIT | 1 | 1103- | A | |||
| 382 | I8-98225 685-0 | PLUG; SOCKET HEADLAMP | 2 | 1103- | A | |||
| 5 | I6-82194 063-1 | BULB; HEADLAMP | 2 | 1103- | A | (A) 24V 75/70W | ||
| 432 | I8-98051 431-0 | FASTENER; TURN SIGNAL, LAMP | 4 | 1103- | A | |||
| 80 | I8-94135 397-0 | BULB; MARKER LAMP | 2 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> 24V 5W | ||
| 4 | I8-98226 183-0 | HEADLAMP UNIT | 1 | 1103- | A | |||
| 256 | I8-98097 467-3 | LAMP; MARKER | 1 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 431 | I8-97378 874-0 | CAP; TURN SIGNAL, LAMP | 2 | 1103- | A | |||

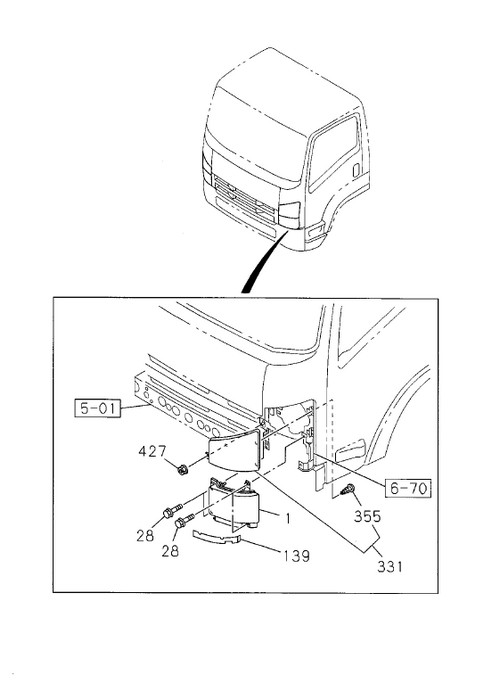

| 1 | I8-98241 325-A | LAMP ASM; HEAD | 1 | 1304- | A | IDN | ||
| 1 | I6-98098 480-0 | LAMP ASM; HEAD | 1 | 1103- | A | |||
| 357 | I8-97323 806-A | BULB; TURN SIGNAL | 2 | 1103- | A | 24V 21W AMBER | ||
| 83 | I8-98057 958-0 | LENS; MARKER LAMP | 2 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 382 | I8-98225 685-0 | PLUG; SOCKET HEADLAMP | 2 | 1103- | A | |||
| 5 | I1-82194 042-0 | BULB; HEADLAMP | 2 | 1103- | A | (B) 24V 5W | ||
| 331 | I8-98155 459-A | LAMP; TURN SIGNAL | 1 | 1103- | A | |||
| 84 | I1-82216 021-1 | GASKET; MARKER LAMP | 2 | 1110- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 256 | I8-98097 466-3 | LAMP; MARKER | 1 | 1103- | A | LAMPS TWO ROOF MARKER | ||
| 327 | I8-97410 181-A | LAMP ASM; SIDE TURN SIGNAL | 1 | 1103- | A | |||
| 331 | I8-98155 459-A | LAMP; TURN SIGNAL | 1 | 1103- | A | |||
| 20 | I8-97378 871-0 | SCREW; HEADLAMP | 6 | 1103- | A | |||
| 437 | I8-98051 390-0 | SOCKET; SIDE TURN | 2 | 1103- | A | |||
| 327 | I8-97410 181-A | LAMP ASM; SIDE TURN SIGNAL | 1 | 1103- | A | |||
| 1 | I8-98241 326-A | LAMP ASM; HEAD | 1 | 1304- | A | IDN | ||
| 4 | I8-98226 183-0 | HEADLAMP UNIT | 1 | 1302- | A | IDN | ||
| 139 | I8-98054 342-0 | COVER; HEADLAMP | 2 | 1103- | A | |||
| 256 | I8-98097 467-3 | LAMP; MARKER | 1 | 1103- | A | LAMPS TWO ROOF MARKER | ||
| 23 | I8-97232 491-0 | COVER; BULB, HEADLAMP | 2 | 1103- | A | |||
| 1 | I8-98241 326-A | LAMP ASM; HEAD | 1 | 1302- | A | IDN | ||
| 256 | I8-98097 466-3 | LAMP; MARKER | 1 | 1103- | A | LAMPS TWO ROOF MARKER | ||
| 1 | I8-98241 325-A | LAMP ASM; HEAD | 1 | 1302- | A | IDN | ||
| 82 | I1-82219 011-0 | SCREW; MARKER LAMP | 4 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 1 | I8-98241 326-A | LAMP ASM; HEAD | 1 | 1103- | A | |||
| 91 | I8-98051 495-0 | BULB; SIDE TURN SIGNAL | 2 | 1103- | A | 24V 21W | ||
| 327 | I8-97410 180-A | LAMP ASM; SIDE TURN SIGNAL | 1 | 1103- | A | |||
| 327 | I8-97410 180-A | LAMP ASM; SIDE TURN SIGNAL | 1 | 1103- | A | |||
| 420 | I8-98218 601-0 | SPRING; BULB,HEADLAMP | 2 | 1302- | A | IDN | ||
| 28 | I8-98164 723-0 | BOLT; HEADLAMP | 8 | 1103- | A | M6X23.5 W/LK&PL WASHER | ||
| 256 | I8-98097 466-3 | LAMP; MARKER | 1 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 408 | I8-97378 874-0 | CAP; BREATHER, HEADLAMP | 2 | 1103- | A | |||
| 5 | I1-82194 063-0 | BULB; HEADLAMP | 2 | 1103- | A | (A) 24V 75/70W | ||
| 84 | I1-82216 021-1 | GASKET; MARKER LAMP | 2 | 1103-1109 | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 399 | I8-98051 387-0 | SOCKET; TURN SIGNAL | 2 | 1103- | A | |||
| 357 | I8-97323 806-A | BULB; TURN SIGNAL | 2 | 1103- | A | 24V 21W AMBER | ||
| 331 | I8-98155 458-A | LAMP; TURN SIGNAL | 1 | 1103- | A | |||
| 420 | I8-97378 875-0 | SPRING; BULB HEADLAMP | 2 | 1103- | NULL | |||
| 256 | I8-98097 467-3 | LAMP; MARKER | 1 | 1103- | A | LAMPS TWO ROOF MARKER | ||
| 86 | I0-91180 106-0 | NUT; MARKER LAMP | 4 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> M6 FLANGE | ||
| 355 | I8-98051 428-0 | SCREW; TURN SIGNAL | 4 | 1103- | A | |||
| 4 | I8-98226 182-0 | HEADLAMP UNIT | 1 | 1302- | A | IDN | ||
| 331 | I8-98155 458-A | LAMP; TURN SIGNAL | 1 | 1103- | A | |||
| 1 | I6-98098 479-0 | LAMP ASM; HEAD | 1 | 1103- | A | |||
| 427 | I0-91180 106-0 | NUT; TURN SIGNAL LAMP | 4 | 1103- | A | M6 FLANGE | ||
| 1 | I8-98241 325-A | LAMP ASM; HEAD | 1 | 1103- | A |
