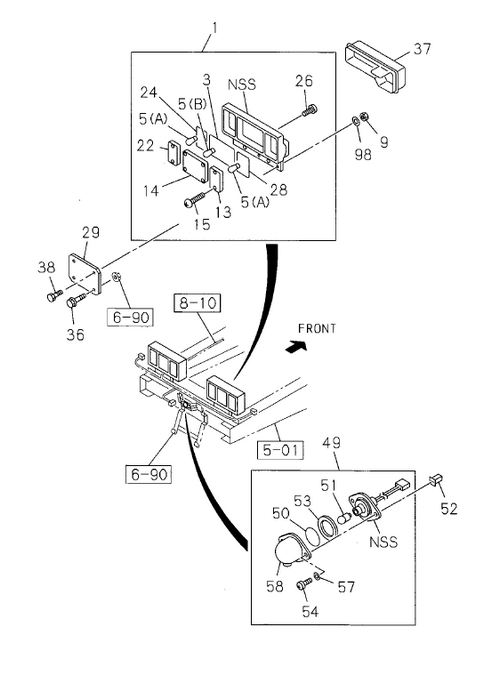

8-03 | LAMP; REAR AND REAR SIDE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 57 | I1-82129 008-0 | WASHER; PL, LICENSE PLATE LAMP | 2 | 1103- | A | |||
| 49 | I1-82120 024-1 | LAMP; LICENSE PLATE | 1 | 1103- | A | 24V 10w | ||
| 13 | I8-94174 639-A | LENS; TURN SIGNAL | 1 | 1103- | A | |||
| 1 | I7-41210 322-A | LAMP ASM; RR COMB | 1 | 1103- | A | |||
| 50 | I1-82235 006-0 | LENS; LICENSE PLATE LAMP | 1 | 1103- | A | |||
| 37 | I8-97520 137-A | COVER; RR COMB LAMP | 1 | 1103- | A | IDN | ||
| 13 | I8-94174 638-A | LENS; TURN SIGNAL | 1 | 1103- | A | |||
| 38 | I0-50640 630-0 | BOLT; LAMP, RR COMB | 4 | 1103- | A | M6X30 w/LiGpL WASHER | ||
| 98 | I0-91610 706-0 | WASHER | 4 | 1103- | A | ID=6.4 OD=18 | ||
| 24 | I8-94257 506-A | GASKET; BACK LAMP | 2 | 1103- | A | |||
| 37 | I8-97520 138-A | COVER; RR COMB LAMP | 1 | 1103- | A | IDN | ||
| 36 | I0-28650 825-0 | BOLT; BRKT, RR COMB | 2 | 1103- | A | M8X25 FLANGE IDN | ||
| 1 | I7-41210 323-A | LAMP ASM; RR COMB | 1 | 1103- | A | IDN | ||
| 5 | I1-82194 109-A | BULB; RR COMB LAMP | 2 | 1103- | A | (B) 24V 21/5W | ||
| 26 | I0-71240 412-0 | SCREW; BACK HORN | 1 | 1103- | A | M4X12 TAPPING | ||
| 9 | I0-91110 506-0 | NUT; LAMP, RR COMB | 4 | 1103- | A | M6 | ||
| 14 | I8-94178 624-A | -B1103- LENS; TAIL & STOP, RR COMB LAMP | 1 | 1103- | A | |||
| 53 | I1-82126 005-0 | GASKET; LICENSE LAMP | 1 | 1103- | A | |||
| 54 | I1-82129 007-0 | SCREW; LICENSE PLATE LAMP | 2 | 1103- | A | M5X20 | ||
| 5 | I1-82194 108-A | BULB; RR COMB LAMP | 4 | 1103- | A | (A) 24V 21W | ||
| 51 | I1-82194 037-0 | BULB; LICENSE PLATE LAMP | 1 | 1103- | A | 24V 10w | ||
| 28 | I8-94257 507-0 | GASKET; TURN, LAMP | 2 | 1103- | A | |||
| 26 | I9-07076 414-A | SCREW; BACK HORN | 1 | 1103- | A | M4X14 TAPPING | ||
| 29 | I1-82237 050-1 | BRACKET; LAMP, RR COMB | 2 | 1103- | A | |||
| 52 | I8-94275 946-0 | GROMMET; SCREW, LICENSE PLATE LAMP | 2 | 1103- | A | D=7.8X7.8 L=18 M5 BLACK | ||
| 14 | I8-94178 625-A | -B1103- LENS; TAIL & STOP, RR COMB LAMP | 1 | 1103- | A | |||
| 15 | I0-71190 420-A | SCREW; RR COMB LAMP | 16 | 1103- | A | M4X20 TAPPING STAINLESS | ||
| 3 | I8-94257 505-A | GASKET; RR COMB LAMP | 2 | 1103- | A | |||
| 58 | I1-82129 005-0 | COVER; LICENSE PLATE LAMP | 1 | 1103- | A | |||
| 22 | I8-94257 512-A | -B1103- LENS; BACKUP, RR COMB LAMP | 2 | 1103- | A |
