8-10 | WIRING HARNESS AND FUSE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | 2 | 1103- | A | 60A YELLOW | ||
| 27 | I8-98054 258-0 | FUSE UNIT | 2 | 1103- | A | 15A BLUE | ||
| 534 | I8-97365 449-0 | BOLT | 3 | 1103- | A | M10X55 FLANGE | ||
| 668 | I8-98273 295-0 | BRACKET; HARNESS | 1 | 1103- | A | ( E ) | ||
| 668 | I8-98273 295-0 | BRACKET; HARNESS | 1 | 1103- | A | ( E ) | ||
| 174 | I8-98079 191-0 | FUSE; SLOW BLOW | 1 | 1103- | A | 30A PINK | ||
| 668 | I8-98001 095-0 | BRACKET; HARNESS | 1 | 1103- | A | ( D) | ||
| 486 | I1-82675 898-0 | HARNESS; ALL SPEED ACCEL | 1 | 1103- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 388 | I8-94422 639-1 | DIODE; RELAY BOX | 1 | 1103- | A | BLACK 2P-1.5A IDN | ||
| 698 | I0-91180 108-0 | NUT; COVER, RELAY BOX | 2 | 1103- | A | M8 FLANGE | ||
| 184 | I8-98030 766-0 | COVER; RELAY & FUSE BOX | 1 | 1103- | A | (A) | ||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | 2 | 1103- | A | 60A YELLOW | ||

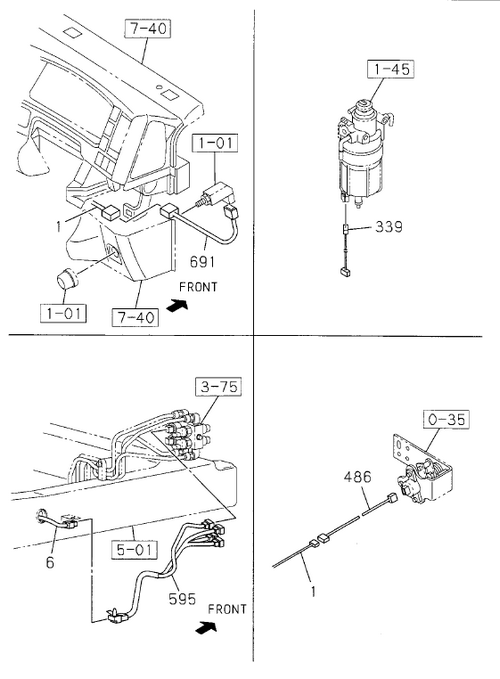

| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 1103- | A | |||
| 431 | I1-82699 601-0 | CONNECTOR; JOINT | 1 | 1103- | A | ( D) BROWN 10P | ||
| 27 | I8-98054 257-0 | FUSE UNIT | 1 | 1103- | A | 10A RED | ||
| 5 | I8-98054 259-0 | FUSE; FACIA HARNESS | NULL | 1103- | A | 20A YELLOW | ||
| 204 | I8-98182 446-A | HARNESS; CABLE, FLOOR | 1 | 1103- | A | |||
| 431 | I1-82699 598-0 | CONNECTOR; JOINT | 4 | 1103- | A | (C) BLUE 10P | ||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 1103- | A | |||
| 431 | I1-82698 579-0 | CONNECTOR; JOINT | 2 | 1103- | A | (A) GREEN 10P | ||
| 5 | I8-98062 982-0 | FUSE; FACIA HARNESS | 1 | 1103- | A | 25A WHITE | ||
| 720 | I1-82699 688-0 | ATTACHMENT; CONNECTOR | 3 | 1103- | A | CONNECTOR | ||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 1103-1109 | A | (B) | ||
| 276 | I8-98034 039-1 | COVER; BOX, FRAME HARNESS | NULL | 1103- | NULL | |||
| 694 | I8-98063 269-1 | BOX ASM; CONNECTOR | 1 | 1103- | A | |||
| 9 | I8-98182 514-A | HARNESS; FRAME, RR | 1 | 1103- | A | |||
| 12 | I8-98041 948-A | HARNESS; ROOF | 1 | 1103- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||

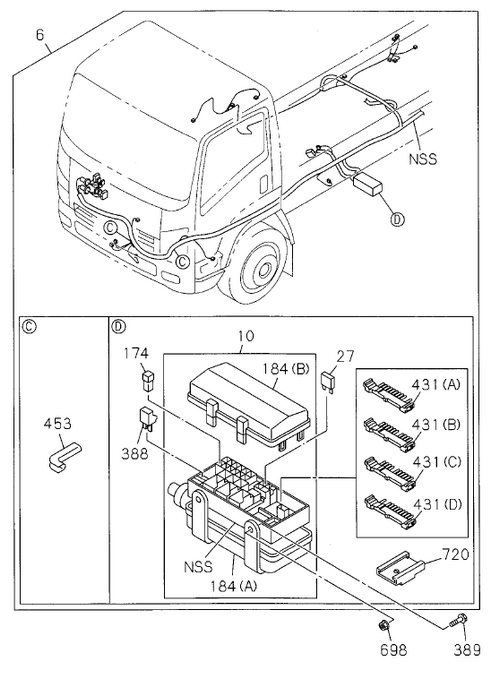

| 10 | I8-98030 762-0 | BOX; FUSE, HARNESS | 1 | 1103- | A | |||
| 668 | I8-98095 653-2 | BRACKET; HARNESS | 1 | 1103- | A | (C) | ||

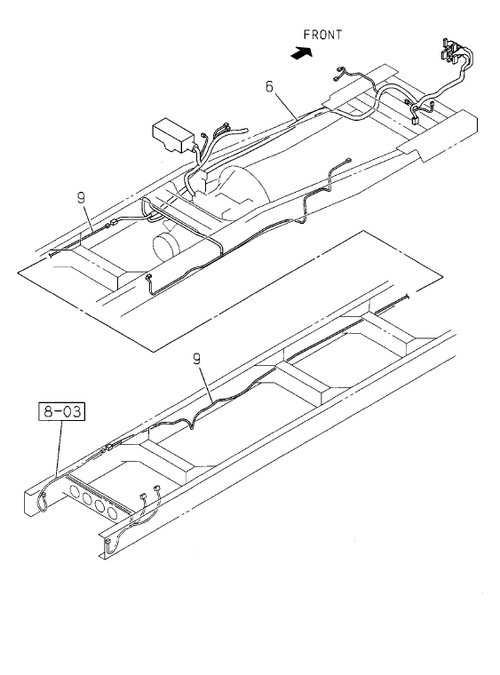

| 6 | I7-42060 302-A | HARNESS; FRAME | 1 | 1103- | A | IDN | ||
| 12 | I8-98084 247-0 | HARNESS; ROOF | 1 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> | ||

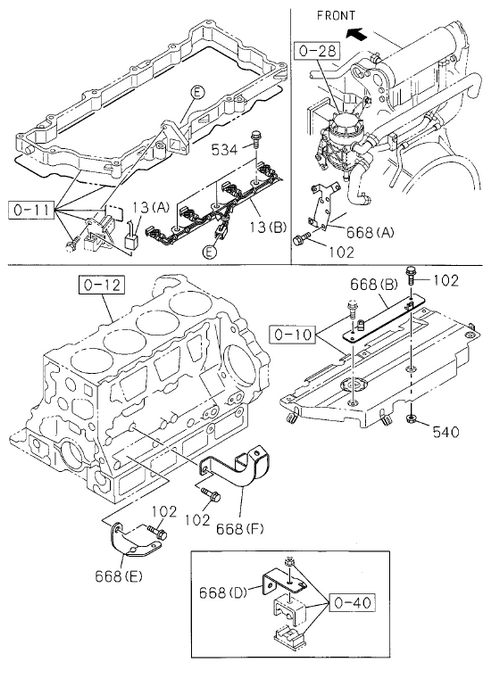

| 13 | I8-98077 326-5 | HARNESS; ENG | 1 | 1103- | A | (A) | ||
| 28 | I8-98081 722-0 | SCREW; FUSE BOX | 1 | 1103- | A | M5X12 TAPPING W/TORQUES | ||
| 595 | I8-97621 003-A | HARNESS; WARNING , BRK | 1 | 1103- | A | |||
| 668 | I8-98011 484-0 | BRACKET; HARNESS | 1 | 1103- | A | ( F) | ||
| 668 | I8-98022 106-2 | BRACKET; HARNESS | 1 | 1103- | A | (B) | ||
| 5 | I8-98054 258-0 | FUSE; FACIA HARNESS | NULL | 1103- | A | 15A BLUE | ||
| 6 | I8-97695 233-A | HARNESS; FRAME | 1 | 1408- | A | |||
| 2 | I8-94422 639-1 | DIODE; CABLE HARNESS | 2 | 1103- | A | (B) BLACK 2P-1 .5A IDN | ||

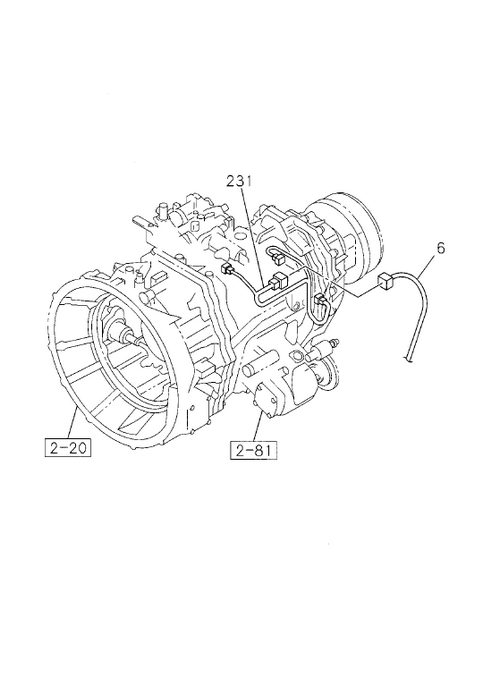

| 231 | I8-98170 740-A | HARNESS; TRANS | 1 | 1103- | A | |||
| 668 | I8-98095 653-2 | BRACKET; HARNESS | 1 | 1103- | A | (C) | ||
| 102 | I0-28050 625-0 | BOLT; BRKT, HARNESS CONNECTOR | 1 | 1103- | A | M6X25 FLANGE | ||

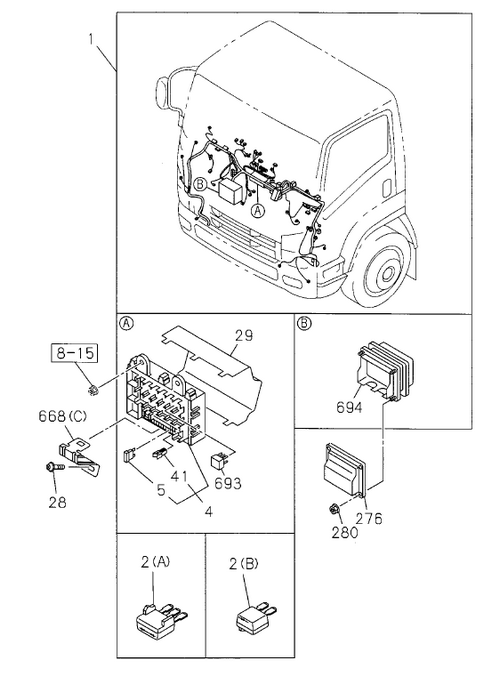

| 1 | I8-97695 379-A | HARNESS; CAB | NULL | 1402- | A | |||

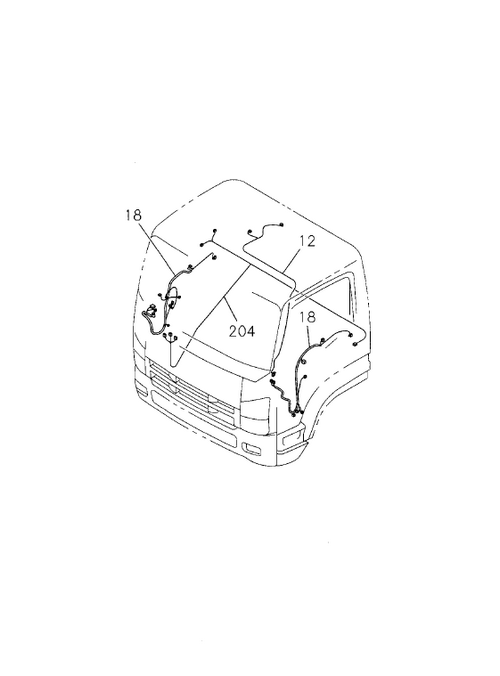

| 18 | I8-98076 304-A | HARNESS; DOOR | 1 | 1103- | A | DRIVER | ||
| 102 | I0-28151 016-0 | BOLT; BRKT, HARNESS CONNECTOR | 3 | 1103- | A | M10X16 FLANGE | ||
| 102 | I0-28050 816-0 | BOLT; BRKT, HARNESS CONNECTOR | 3 | 1103- | A | M8X16 FLANGE | ||
| 5 | I8-98054 257-0 | FUSE; FACIA HARNESS | NULL | 1103- | A | 10A RED | ||
| 280 | I0-91180 106-0 | NUT; BOX ASM FIX | 4 | 1103- | A | M6 FLANGE | ||
| 18 | I8-98076 305-A | HARNESS; DOOR | 1 | 1103- | A | PASSENGER | ||
| 9 | I8-97695 217-A | HARNESS; FRAME, RR | 1 | 1408- | A | |||
| 18 | I8-98076 304-A | HARNESS; DOOR | 1 | 1103- | A | DRIVER | ||
| 389 | I1-09030 073-0 | BOLT; COVER, RELAY BOX | 3 | 1103- | A | M8X35 W/LK&PL WASHER | ||
| 339 | I8-98118 331-A | HARNESS; EXT FUEL | 1 | 1103- | A | |||
| 700 | I1-11369 157-0 | TUBE; DISTANCE | 1 | 1103- | A | CONNECTOR | ||
| 339 | I8-98118 331-A | HARNESS; EXT FUEL | 1 | 1103- | A | |||
| 231 | I8-98170 740-A | HARNESS; TRANS | 1 | 1103- | A | |||
| 18 | I8-98076 305-A | HARNESS; DOOR | 1 | 1103- | A | PASSENGER | ||
| 540 | I0-91180 106-0 | NUT; BRKT FIX | 1 | 1103- | A | M6 FLANGE | ||
| 453 | I1-82699 709-0 | PROTECTOR; HARNESS | 2 | 1103- | A | |||
| 1 | I7-42040 311-A | HARNESS; CAB | 1 | 1103- | A | IDN | ||
| 29 | I8-98056 968-0 | COVER; FUSE BOX | 1 | 1103- | A | |||
| 13 | I8-98171 638-0 | HARNESS; ENG | 1 | 1103- | A | (B) | ||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 1902- | A | |||
| 13 | I8-98077 326-5 | HARNESS; ENG | 1 | 1103- | A | (A) | ||
| 174 | I8-98079 193-0 | FUSE; SLOW BLOW | 3 | 1103- | A | 50A RED | ||
| 204 | I8-98182 446-A | HARNESS; CABLE, FLOOR | 1 | 1103- | A | |||
| 201 | I8-98182 516-A | HARNESS; AIR TANK TANK | 1 | 1103- | A | |||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 1902- | A | |||
| 41 | I8-98054 260-0 | PULLER; FUSE | 1 | 1103- | A | |||
| 2 | I8-94416 438-1 | DIODE; CABLE HARNESS | 1 | 1103- | A | (A) BLACK 3P-1.5A | ||
| 4 | I8-98065 666-0 | BOX ASM; FUSE, HARNESS | 1 | 1103- | A | |||
| 201 | I8-98182 516-A | HARNESS; AIR TANK TANK | 1 | 1103- | A | |||
| 486 | I1-82675 898-0 | HARNESS; ALL SPEED ACCEL | 1 | 1103- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 595 | I8-97621 003-A | HARNESS; WARNING , BRK | 1 | 1103- | A | |||
| 668 | I8-98024 765-0 | BRACKET; HARNESS | 1 | 1103- | A | (A) | ||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 1110- | A | (B) | ||
| 9 | I8-98182 514-A | HARNESS; FRAME, RR | 1 | 1103- | A | |||
| 12 | I8-98041 948-A | HARNESS; ROOF | 1 | 1103- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||
| 174 | I8-98079 192-0 | FUSE; SLOW BLOW | 1 | 1103- | A | 40A GREEN | ||
| 431 | I1-82699 599-0 | CONNECTOR; JOINT | 4 | 1103- | A | (B) GREEN 10P | ||
| 693 | I8-97173 035-1 | RELAY; FUSE BOX | NULL | 1103- | A | 24V 10A MATSUSH I TA IDN | ||

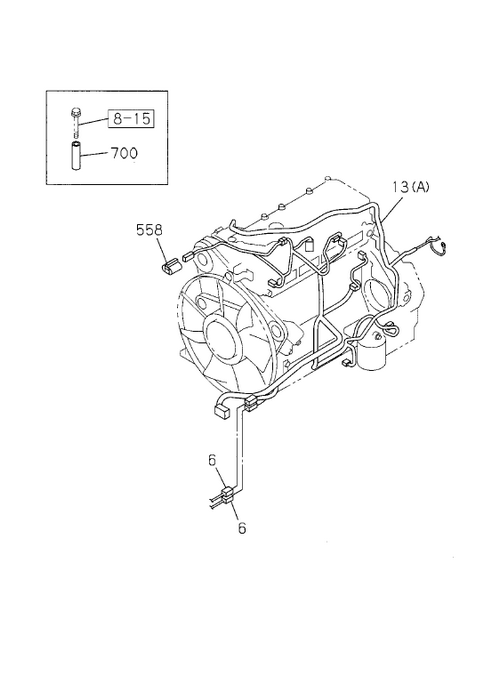

| 558 | I1-82690 668-0 | CONNECTOR; HARNESS | 1 | 1103- | A |
