8-15 | FIXING PARTS; WIRING HARNESS
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

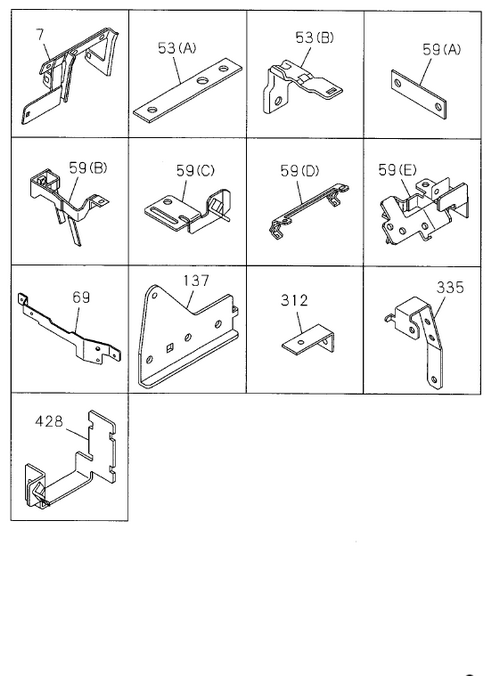

| 59 | I8-97616 305-0 | BRACKET; FRAME HARNESS | 1 | 1103- | A | (C) | ||
| 428 | I8-98116 461-0 | BRACKET | 1 | 1103- | A | |||
| 225 | I1-09707 162-1 | CLIP; AIR TANK HARNESS | 1 | 1103- | A | L=180 | ||
| 335 | I8-97619 097-1 | BRACKET; CONNECTOR | 1 | 1103- | A | |||

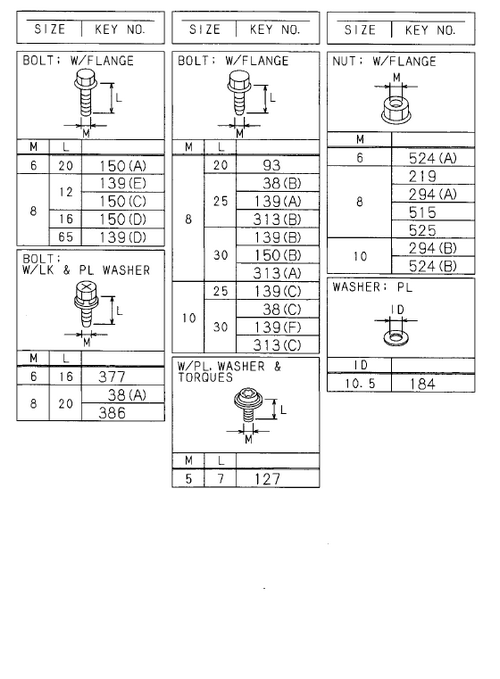

| 38 | I0-28651 030-0 | BOLT; CLIP, HARNESS | 1 | 1103- | A | (C) M10X30 FLANGE | ||
| 223 | I1-09987 221-0 | CLIP; AIR TANK HARNESS | 3 | 1103- | A | (B) ID=5-12 L=14.5 | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 1103- | A | M5X7 W/PL WASHER&TORQUES | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 1103- | A | LAMPS TWO ROOF MARKER<TEC> L=20 | ||

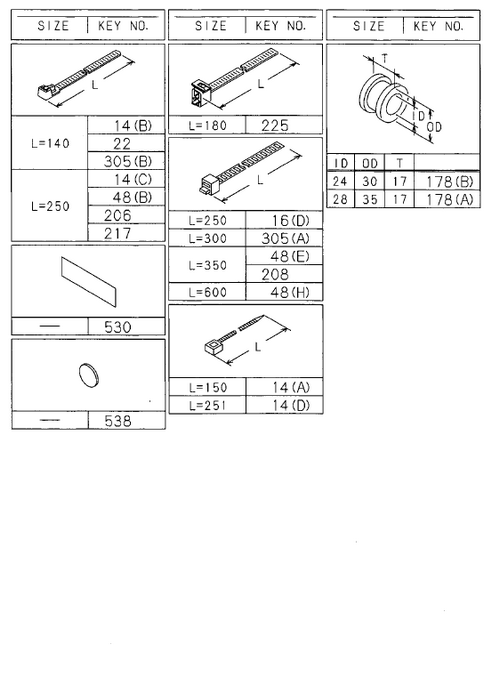

| 178 | I9-09956 092-A | GROMMET; HARNESS | 1 | 1103- | A | (B) ID=24 OD=30 T=17 | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 1103- | A A | M8 FLANGE | ||

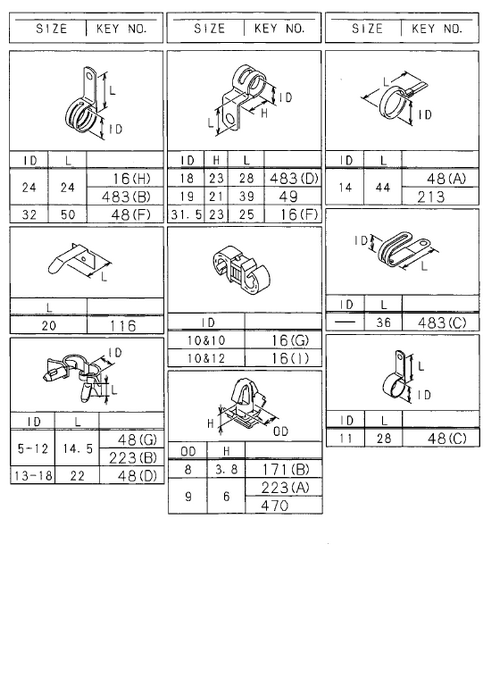

| 16 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1103- | A | (A) ID=16 IDN | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 1103- | A | M6X16 w/LK&PL WASHER | ||
| 48 | I1-09707 107-1 | CLIP; FRAME HARNESS | 1 | 1103- | A | (H) L=600 | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 1103- | A | (E) M8X12 FLANGE | ||
| 139 | I0-28650 825-0 | BOLT; BRKT | 1 | 1103- | A | (A) M8X25 FLANGE IDN | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1110- | A | OD=25 BLACK | ||
| 16 | I1-09709 278-1 | CLIP; HARNESS | 1 | 1103- | A | ( I ) ID=10 & 12 | ||
| 16 | I1-09701 017-0 | CLIP; HARNESS | 1 | 1103- | A | (F) L=25 ID=31.5 H=23 | ||
| 48 | I1-09707 183-0 | CLIP; FRAME HARNESS | 1 | 1103- | A | (E) L=350 | ||
| 217 | I5-09707 030-1 | CLIP; RR BODY HARNESS | 2 | 1103- | A | L=250 IDN | ||
| 22 | I5-09707 031-1 | CLIP; ENG HARNESS | 2 | 1103- | A | L=140 IDN | ||
| 48 | I9-09917 544-0 | CLIP; FRAME HARNESS | 1 | 1103- | A | (C) ID=11 L=28 | ||
| 16 | I1-09707 126-0 | CLIP; HARNESS | 2 | 1103- | A | (D) L=250 | ||
| 178 | I9-09956 092-A | GROMMET; HARNESS | 1 | 1103- | A | (B) ID=24 OD=30 T=17 | ||
| 59 | I8-97619 535-0 | BRACKET; FRAME HARNESS | 1 | 1103- | A | ( E) | ||
| 49 | I1-09700 972-1 | CLIP; GEN HARNESS | 1 | 1103- | A | ID=19 L=39 14=21 | ||
| 213 | I9-09917 427-0 | CLIP; END CROSS HARNESS | 3 | 1103- | A | ID=14 L=44 | ||
| 386 | I8-97086 825-0 | BOLT; GRAND HARNESS | 2 | 1103- | A | M8X20 W/LK&PL WASHER IDN | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 3 | 1103- | A | EXC . LAMPS TWO ROOF MARKER<TEC> L=20 | ||
| 139 | I0-28650 830-0 | BOLT; BRKT | 2 | 1103- | A | (B) M8X30 FLANGE | ||
| 313 | I0-28650 825-0 | BOLT; BRKT | 1 | 1103- | A | (B) M8X25 FLANGE ION | ||
| 38 | I0-28650 825-0 | BOLT; CLIP, HARNESS | 2 | 1103- | A | (B) M8X25 FLANGE IDN | ||
| 69 | I8-97614 738-0 | BRACKET; CLIP | 1 | 1103- | A | |||
| 219 | I0-91180 108-0 | NUT | 2 | 1103- | A | M8 FLANGE | ||
| 16 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1103- | A | (A) ID=16 IDN | ||
| 48 | I5-09707 030-1 | CLIP; FRAME HARNESS | 2 | 1103- | A | (B) L=250 IDN | ||
| 312 | I1-47475 304-0 | BRACKET; CLIP HARNESS | 1 | 1103- | A | L=55 | ||
| 59 | I8-98099 963-0 | BRACKET; FRAME HARNESS | 1 | 1103- | A | (B) | ||
| 48 | I1-09709 292-0 | CLIP; FRAME HARNESS | 1 | 1103- | A | (D) ID=13-18 L=22 | ||
| 171 | I1-09709 309-0 | CLIP; STARTER HARNESS | 1 | 1103- | A | (B) OD=8 H=3.8 | ||
| 150 | I0-28050 816-0 | BOLT; CLIP | 2 | 1103- | A | (D) M8X16 FLANGE | ||
| 16 | I8-97229 357-0 | CLIP; HARNESS | 2 | 1103- | A | (E) L=40.6 | ||
| 150 | I0-28050 620-0 | BOLT; CLIP | 1 | 1103- | A | ( A) M6X20 FLANGE | ||
| 139 | I0-28650 830-0 | BOLT; BRKT | 1 | 1103- | A | (B) M8X30 FLANGE | ||
| 294 | I7-05110 010-A | NUT | 2 | 1103- | A | (B) M10 FLANGE | ||
| 59 | I8-97619 533-0 | BRACKET; FRAME HARNESS | 1 | 1103- | A | ( D) | ||
| 14 | I5-09707 030-1 | CLIP; BAND, HARNESS | 2 | 1103- | A | (C) L=250 IDN | ||
| 483 | I8-94225 185-0 | CLIP; ENG HARNESS | 1 | 1103-1109 | A | ( A) ID=12 B=13 ID=6.5 | ||

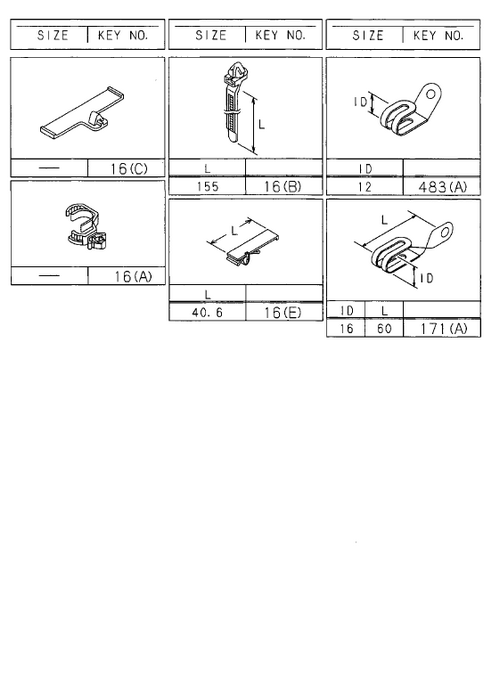

| 16 | I8-98052 679-0 | CLIP; HARNESS | 2 | 1103- | A | (C) | ||
| 150 | I0-28650 830-0 | BOLT; CLIP | 1 | 1103- | A | (B) M8X30 FLANGE | ||
| 294 | I7-05110 010-A | NUT | 2 | 1103- | A | (B) M10 FLANGE | ||
| 14 | I5-09707 031-1 | CLIP; BAND, HARNESS | 5 | 1103- | A | (B) L=140 IDN | ||
| 38 | I8-97086 825-0 | BOLT; CLIP, HARNESS | 3 | 1103- | A | (A) M8X20 W/L1GPL WASHER IDN | ||
| 48 | I9-09917 427-0 | CLIP; FRAME HARNESS | 19 | 1103- | A | (A) ID=14 L=44 | ||
| 139 | I0-28651 030-0 | BOLT; BRKT | 2 | 1103- | A | ( F) M10X30 FLANGE | ||
| 524 | I0-91180 110-0 | NUT; HARNESS | 1 | 1103- | A | (B) M10 FLANGE | ||
| 178 | I9-09956 256-2 | GROMMET; HARNESS | 4 | 1103- | A | (A) ID=28 OD=35 T=17 | ||
| 7 | I8-98049 798-1 | BRACKET;CONNECTOR | 1 | 1103- | A | |||
| 53 | I1-47479 380-0 | BRACKET; HARNESS | 1 | 1103- | A | (A) | ||
| 483 | I1-09701 001-1 | CLIP; ENG HARNESS | 1 | 1103- | A | (B) ID=24 L=24 | ||
| 515 | I0-91180 108-0 | NUT; BRKT | 1 | 1103- | A | M8 FLANGE | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS, L I CENSE LAMP | 1 | 1103- | A | OD=9 H=6 | ||
| 483 | I8-94224 891-1 | CLIP; ENG HARNESS | 3 | 1103- | A | ( C) L=36 | ||
| 184 | I1-09503 265-0 | WASHER; PL, STARTER EARTH | 1 | 1103- | A | ID=10.5 | ||
| 14 | I8-97619 917-0 | CLIP; BAND, HARNESS | 1 | 1103- | A | (D) L=251 | ||
| 16 | I8-97173 307-0 | CLIP; HARNESS | 18 | 1103- | A | (B) L=155 IDN | ||
| 16 | I1-09701 001-1 | CLIP; HARNESS | 2 | 1103- | A | (H) ID=24 L=24 | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1103-1109 | A | OD=25 BLACK | ||
| 93 | I0-28650 820-0 | BOLT; ECM HARNESS | 2 | 1103- | A | M8X20 FLANGE IDN | ||
| 48 | I1-09701 055-1 | CLIP; FRAME HARNESS | 1 | 1103- | A | (F) ID=32 L=50 | ||
| 294 | I7-05110 010-A | NUT | 1 | 1103- | A | (B) M10 FLANGE | ||
| 294 | I7-05110 010-A | NUT | 1 | 1103- | A | (B) M10 FLANGE | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 4 | 1103- | A | (A) M6 FLANGE | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 11 | 1103- | A | 180X40 | ||
| 313 | I0-28651 030-0 | BOLT; BRKT | 1 | 1103- | A | (C) MIOX30 FLANGE | ||
| 294 | I0-91180 108-0 | NUT | 4 | 1103- | A | (A) M8 FLANGE | ||
| 206 | I5-09707 030-1 | CLIP; FUEL TANK HARNESS | 3 | 1103- | A | L=250 IDN | ||
| 483 | I1-09700 860-0 | CLIP; ENG HARNESS | 1 | 1103- | A | (D) ID=18 H=23 L=28 | ||
| 294 | I0-91180 108-0 | NUT | 1 | 1103- | A A | (A) M8 FLANGE | ||
| 305 | I1-09707 001-1 | CLIP; ENG HARNESS | 1 | 1103- | A | (A) L=300 | ||
| 483 | I8-94225 185-0 | CLIP; ENG HARNESS | 1 | 1110- | A | ( A) ID=12 B=13 ID=6.5 | ||
| 48 | I1-09987 221-0 | CLIP; FRAME HARNESS | 3 | 1103- | A | (G) ID=5-12 L=14.5 | ||
| 171 | I8-97101 436-0 | CLIP; STARTER HARNESS | 1 | 1103- | A | (A) | ||
| 16 | I1-09709 277-1 | CLIP; HARNESS | 4 | 1103- | A | (G) ID=10 & 10 | ||
| 208 | I1-09707 183-0 | CLIP; HARNESS, MAG VLV | NULL | 1103- | A | L=350 | ||
| 150 | I0-28050 812-A | BOLT; CLIP | 1 | 1103- | A | ( C) M8X12 FLANGE | ||
| 313 | I0-28650 830-0 | BOLT; BRKT | 1 | 1103- | A | (A) M8X30 FLANGE | ||
| 59 | I8-98044 743-0 | BRACKET; FRAME HARNESS | 1 | 1103- | A | (A) L=85 | ||
| 139 | I1-09044 072-1 | BOLT; BRKT | 1 | 1103- | A | ( D) M8X65 FLANGE | ||
| 223 | I1-09709 178-0 | CLIP; AIR TANK HARNESS | 2 | 1103- | A | (A) OD=9 H=6 | ||
| 305 | I5-09707 031-1 | CLIP; ENG HARNESS | 2 | 1103- | A | (B) L-140 ION | ||
| 14 | I8-97355 273-0 | CLIP; BAND, HARNESS | 1 | 1103- | A | (A) L=150 | ||
| 137 | I8-97624 016-0 | BRACKET; HARNESS CLAMP | 1 | 1103- | A | |||
| 48 | I5-09707 030-1 | CLIP; FRAME HARNESS | 1 | 1103- | A | (B) L=250 IDN | ||
| 139 | I0-28651 025-0 | BOLT; BRKT | 2 | 1103- | A | (C) M10X25 FLANGE IDN | ||
| 53 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 1103- | A | (B) |
