8-21 | IMETER ASM
GIGA
GIGA FRR

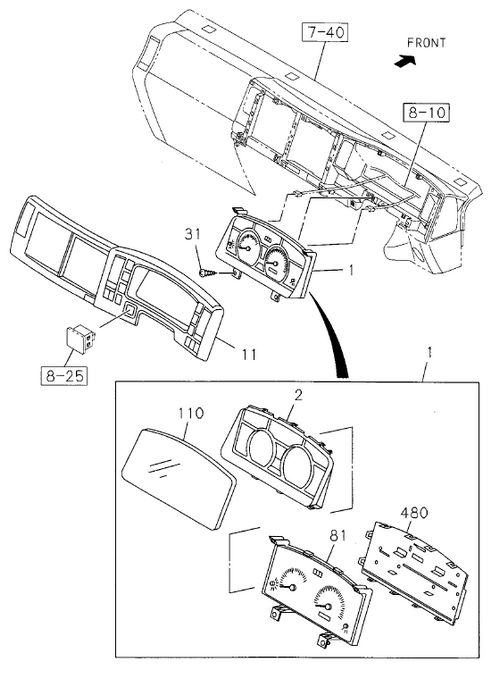

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98054 638-0 | PANEL; CLUSTER | 1 | 1103-1109 | A | |||
| 480 | I8-98054 433-0 | COVER; METER | 1 | 1103- | A | |||
| 1 | I8-98064 903-7 | METER COMPL; CLUSTER | 1 | 1103- | A | |||
| 110 | I8-98054 431-0 | 1103- GLASS; CLUSTER METER | 1 | 1103- | A | |||
| 81 | I8-98079 673-0 | METER SUB ASM | 1 | 1103- | A | |||
| 2 | I8-98054 638-0 | PANEL; CLUSTER | 1 | 1110- | A | |||
| 31 | I0-72180 516-0 | SCREW; METER INST PANEL | 4 | 1103- | A | 115X16 TAPPING | ||
| 1 | I8-98064 903-7 | METER COMPL; CLUSTER | 1 | 1103- | A | |||
| 11 | I8-97405 350-6 | CLUSTER ASM; METER | 1 | 1103- | A | DARK GRAY |
