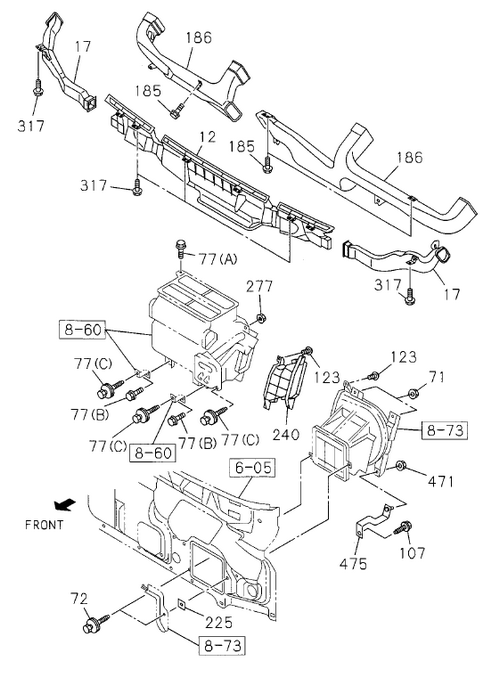

| 277 |
I0-91180 106-0 |
|
NUT; HTR |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE |
| 77 |
I0-28650 616-0 |
|
BOLT; HTR UNIT |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE |
| 471 |
I0-91180 106-0 |
|
NUT; BLOWER |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE |
| 186 |
I8-98285 571-0 |
|
DUCT; VENTILATOR |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
| 72 |
I8-98081 175-0 |
|
BOLT; BLOWER UNIT |
2 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER |
| 317 |
I0-72180 516-0 |
|
SCREW; DEFROSTER NOZZLE |
6 |
1103- |
|
A |
M5X16 TAPPING |
| 240 |
I8-98041 402-1 |
|
DUCT; AIR, HTR |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
| 71 |
I0-91180 106-0 |
|
NUT; BLOWER UNIT TO DASH |
2 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE |
| 475 |
I8-98043 500-1 |
|
BRACKET; BLOWER |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
| 77 |
I0-28650 620-0 |
|
BOLT; HTR UNIT |
2 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE IDN |
| 186 |
I8-98285 571-0 |
|
DUCT; VENTILATOR |
1 |
1411- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER |
| 475 |
I8-98043 500-1 |
|
BRACKET; BLOWER |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
| 17 |
I8-98040 016-1 |
|
NOZZLE; DEFROSTER, S I DE |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
| 225 |
I1-76798 029-0 |
|
SEAL; WATER |
1 |
1304- |
|
A |
OD=25 BLACK |
| 223 |
I8-94441 539-0 |
|
GROMMET; SCREW |
1 |
1103- |
|
A |
D=7.9X7.9 L=20 M5 |
| 225 |
I8-97856 616-0 |
|
SEAL; WATER |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN |
| 317 |
I0-72180 516-0 |
|
SCREW; DEFROSTER NOZZLE |
2 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING |
| 186 |
I8-98285 576-0 |
|
DUCT; VENTILATOR |
1 |
1411- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER |
| 77 |
I8-98081 175-0 |
|
BOLT; HTR UNIT |
3 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER |

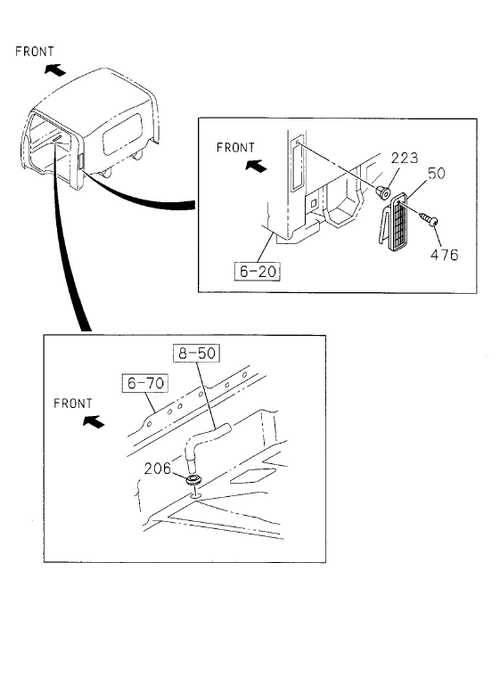

| 50 |
I8-98080 998-2 |
|
VALVE ASM; HTR |
1 |
1103- |
|
A |
|
| 206 |
I8-98019 649-0 |
|
GROMMET; A/C PIPE TO BLOWER UNIT |
1 |
1103- |
|
A |
|
| 476 |
I8-98062 675-0 |
|
SCREW; VALVE |
1 |
1103- |
|
A |
M5X16 HEX SOCKET |
| 107 |
I8-98018 439-0 |
|
BOLT; STAY, HTR UNIT |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER |
| 17 |
I8-98040 011-1 |
|
NOZZLE; DEFROSTER, S I DE |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
| 123 |
I0-72180 516-0 |
|
SCREW; DUCT |
4 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING |
| 12 |
I8-98040 009-3 |
|
NOZZLE; DEFROSTER |
1 |
1103- |
|
A |
|
| 185 |
I0-72180 516-0 |
|
SCREW; VENT DUCT |
4 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING |
| 186 |
I8-97585 488-4 |
|
DUCT; VENTILATOR |
1 |
1103- |
|
A |
VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
