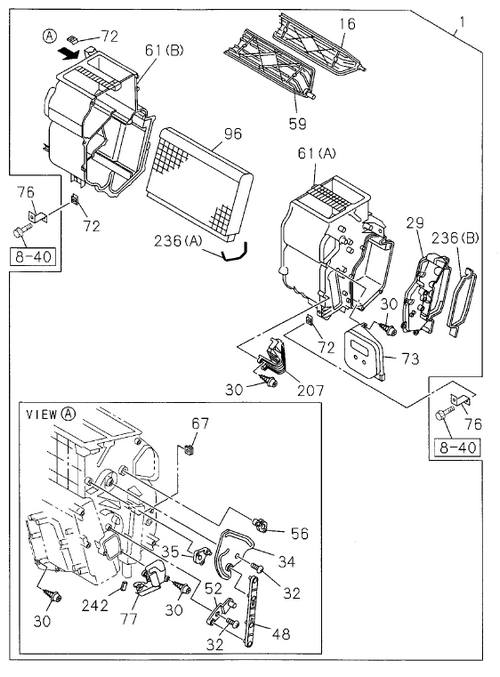

8-60 | HEATER UNIT; FRONT
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 236 | I8-98047 420-0 | GASKET; HEATER | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) | ||
| 73 | I8-98077 419-0 | PLATE; HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 56 | I8-98047 393-0 | LEVER; SHUTTER, HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 35 | I8-98047 392-0 | LEVER; SHUTTER, HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 236 | I8-98047 421-0 | GASKET; HEATER | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) | ||
| 29 | I8-98074 119-0 | COVER; HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 76 | I8-98009 742-1 | BRACKET; HTR UNIT | 2 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 1 | I8-98214 400-1 | HEATER UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 61 | I8-98077 423-0 | CASE; HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) | ||
| 207 | I8-98047 379-0 | CLAMP; HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 59 | I8-98047 386-0 | SHUTTER; HTR UNIT, SIDE | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 77 | I8-98047 414-0 | COVER; HTR CASE | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 30 | I8-97957 708-0 | SCREW; HTR UNIT | 25 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN | ||
| 32 | I8-98047 416-0 | SCREW; HTR UNIT | 2 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 | ||
| 52 | I8-98047 390-0 | LEVER; SHUTTER, HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 96 | I8-98048 815-0 | PLATE; HTR UNIT | 1 | 1103- | A | VENT! LATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 16 | I8-98047 387-0 | SHUTTER; HTR UNIT, CENTER UPR | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 72 | I8-98047 428-0 | NUT; CASE, HTR UN I T | 3 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 | ||
| 34 | I8-98047 389-0 | LEVER; SHUTTER, HTR UN I T | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 242 | I8-98048 816-0 | GASKET; CASE | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 48 | I8-98047 391-0 | LEVER; HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 61 | I8-98077 422-0 | CASE; HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) | ||
| 67 | I8-98047 417-0 | CLIP; HTR UNIT | 1 | 1103- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> |
