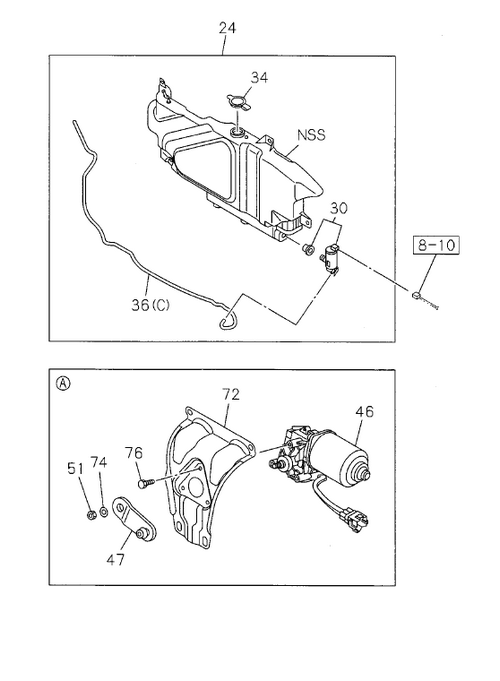

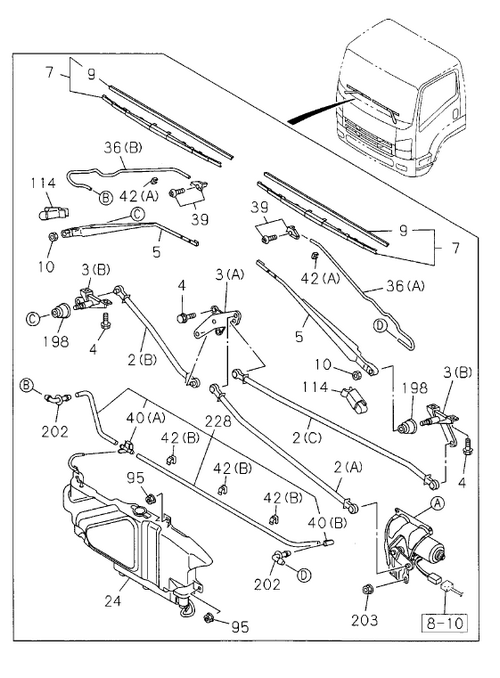

8-80 | WINDSHIELD WIPER AND WASHER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98078 809-0 | LINK; FRT WIPER | 1 | 1103- | A | (C) | ||
| 202 | I1-86815 003-2 | GROMMET; WIPER | 2 | 1103- | A | |||
| 7 | I1-83315 046-2 | BLADE; WIPER | 1 | 1103- | A | |||
| 228 | I8-98039 704-0 | HOSE ASM; WASHER | 1 | 1103- | A | |||
| 198 | I8-98038 892-1 | COVER; PIVOT WI PER | 2 | 1103- | A | |||
| 7 | I6-83315 046-0 | BLADE; WIPER | 1 | 1103- | A | |||
| 203 | I0-91180 208-0 | NUT; WI PER MOTOR | 4 | 1103- | A | M8 FLANGE | ||
| 114 | I1-83318 127-0 | COVER; FRT WIPER ARM | 1 | 1103- | A | |||
| 4 | I0-28650 820-0 | BOLT; WI PER LINK TO BODY | 7 | 1103- | A | M8X20 FLANGE IDN | ||
| 42 | I1-86810 041-0 | CLIP; WASHER HOSE | 2 | 1103- | A | (A) | ||
| 39 | I1-83315 085-0 | NOZZLE; WINDSHIELD WASHER | 1 | 1103- | A | |||
| 7 | I6-83315 045-0 | BLADE; WIPER | 1 | 1103- | A | |||
| 95 | I0-91180 106-0 | NUT; WASHER TANK | 4 | 1103- | A | M6 FLANGE | ||
| 24 | I8-98039 661-4 | TANK ASM; WASHER | 1 | 1103- | A | |||
| 114 | I1-83318 126-0 | COVER; FRT WIPER ARM | 1 | 1103- | A | |||
| 3 | I8-98078 816-1 | PIVOT ASM; FRT WI PER | 2 | 1103- | A | (B) | ||
| 10 | I0-91111 510-0 | NUT; WIPER ARM TO WI PER PIVOT | 2 | 1110- | A | M10 | ||
| 40 | I8-97855 163-0 | JOINT; WASHER HOSE | 1 | 1103- | A | (A) | ||
| 30 | I8-98070 170-0 | 1103-MOTOR ASM; FRT WASHER TANK | 1 | 1103- | A | |||
| 46 | I8-98078 806-1 | MOTOR ASM; FRT WIPER WINDSHIELD | 1 | 1103- | A | |||
| 36 | I8-98070 173-0 | HOSE; WASHER | 1 | 1103- | A | (C) | ||
| 221 | I5-09707 031-1 | CLIP | 1 | 1302- | A | L=140 IND ITOCHU | ||
| 39 | I1-83315 086-0 | NOZZLE; WINDSHIELD WASHER | 1 | 1103- | A | |||
| 76 | I1-83319 043-0 | SCREW; BRKT TO WI PER MOTOR | 3 | 1103- | A | |||
| 2 | I8-98078 810-1 | LINK; FRT WIPER | 1 | 1103- | A | (B) | ||
| 34 | I8-97855 140-0 | CAP; WASHER TANK | 1 | 1103- | A | IDN | ||
| 10 | I0-91111 510-0 | NUT; WIPER ARM TO WI PER PIVOT | 2 | 1103-1109 | A | M10 | ||
| 9 | I1-83355 014-0 | RUBBER; FRT WIPER BLADE | 2 | 1103- | A | |||
| 5 | I8-98078 820-1 | ARM; WIPER | 1 | 1103- | A | |||
| 36 | I1-86810 098-0 | HOSE; WASHER | 1 | 1103- | A | (B) | ||
| 42 | I8-98039 708-0 | CLIP; WASHER HOSE | 3 | 1103- | A | (B) | ||
| 46 | I8-98078 806-1 | MOTOR ASM; FRT WIPER WINDSHIELD | 1 | 1103- | A | |||
| 40 | I8-97307 026-0 | JOINT; WASHER HOSE | 1 | 1103- | A | (B) | ||
| 47 | I8-98078 805-0 | ARM; CRANK, WI PER MOTOR | 1 | 1103- | A | |||
| 3 | I8-98078 816-1 | PIVOT ASM; FRT WI PER | 2 | 1103- | A | (B) | ||
| 51 | I1-83319 012-0 | NUT; WIPER MOTOR LINK | 1 | 1103- | A | |||
| 72 | I8-98078 807-0 | BRACKET; WIPER MOTOR | 1 | 1103- | A | |||
| 5 | I8-98078 819-1 | ARM; WIPER | 1 | 1103- | A | |||
| 3 | I8-98078 815-0 | PIVOT ASM; FRT WI PER | 1 | 1103- | A | ( A) | ||
| 2 | I8-98078 811-0 | LINK; FRT WIPER | 1 | 1103- | A | ( A) | ||
| 234 | I8-98236 609-0 | HARNESS; EXT,WIPER | 1 | 1302- | A | |||
| 36 | I8-98078 824-0 | HOSE; WASHER | 1 | 1103- | A | (A) | ||
| 7 | I1-83315 045-2 | BLADE; WIPER | 1 | 1103- | A | |||
| 74 | I1-83319 011-0 | WASHER; ARM TO MOTOR | 1 | 1103- | A |
