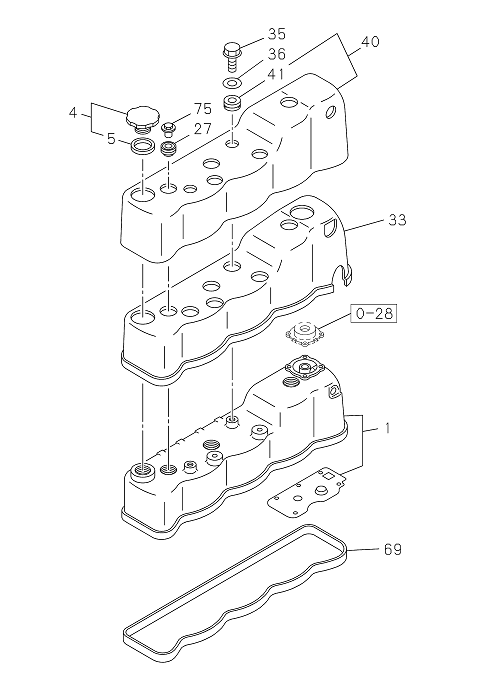

0-10 | CYLINDER HEAD COVER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 004 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 2204- | TRAGA | |||
| 027 | I8-97263 801-1 | GASKET; HD COVER | 3 | 2204- | TRAGA | ID=19.5 | ||
| 005 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 2204- | TRAGA | ID=32 OD=40 | ||
| 069 | I8-97872 983-0 | GASKET; HD TO COVER | 1 | 2204- | TRAGA | |||
| 001 | I8-94433 742-A | COVER; CYL HD | 1 | 2204- | TRAGA | |||
| 033 | I8-97920 049-1 | RUBBER; SPACE,CYL HD COVER | 1 | 2204- | TRAGA | |||
| 035 | I0-28050 812-A | BOLT; NOISE SHIELD COVER | 2 | 2204- | TRAGA | M8X12 FLANGE | ||
| 040 | I8-97547 923-A | COVER | 1 | 2204- | TRAGA | |||
| 036 | I0-91614 708-0 | WASHER; PL,NOISE SHIELD COVER | 2 | 2204- | TRAGA | ID=8.5 OD=30 T=2.6 | ||
| 075 | I8-94158 108-0 | NUT; CAP,HD COVER | 3 | 2204- | TRAGA | M8 OD=19 | ||
| 041 | I8-94256 959-0 | GROMMET; HD COVER,OUTER | 2 | 2204- | TRAGA |
