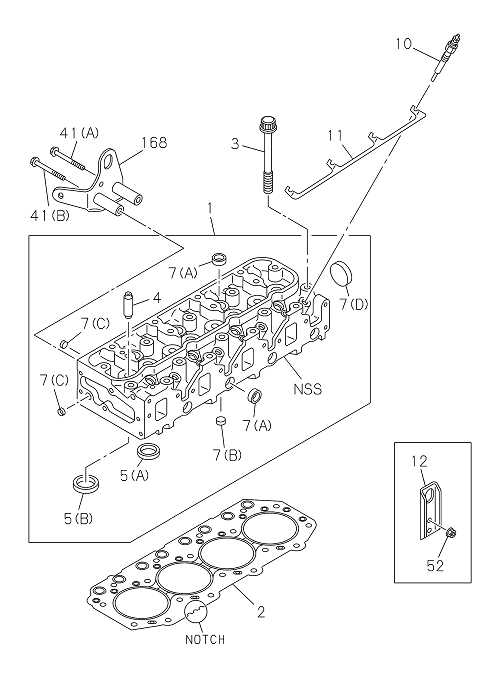

0-11 | CYLINDER HEAD
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 168 | I8-98247 204-A | HANGER; ENG,FRT | 1 | 2204- | TRAGA | |||
| 001 | I8-97546 830-0 | HEAD ASM; CYL | 1 | 2204- | TRAGA | |||
| 052 | I7-05108 010-A | NUT; ENG HANGER,RR | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 002 | I8-97350 320-0 | GASKET; CYL HD | 1 | 2204- | TRAGA | T=1.70 3-NOTCH | ||
| 007 | I8-97036 550-1 | CUP; SEALING,CYL HEAD | 1 | 2204- | TRAGA | (D) OD=45 | ||
| 010 | I8-97445 418-A | PLUG; GLOW | 4 | 2204- | TRAGA | BOSCH | ||
| 002 | I8-97350 319-0 | GASKET; CYL HD | 1 | 2204- | TRAGA | T=1.65 2-NOTCH | ||
| 005 | I8-97231 229-0 | SEAT; VLV INSERT | 4 | 2204- | TRAGA | (B) EXHAUST OD=36.7 | ||
| 007 | I5-09600 013-0 | CUP; SEALING,CYL HEAD | 5 | 2204- | TRAGA | (C) OD=12.3 | ||
| 007 | I5-11129 006-0 | CUP; SEALING,CYL HEAD | 3 | 2204- | TRAGA | (B) OD=16 | ||
| 011 | I8-97146 517-0 | CONNECTOR; GLOW PLUG | 1 | 2204- | TRAGA | |||
| 041 | I0-28050 870-0 | BOLT; ENG HANGER | 1 | 2204- | TRAGA | (A) M8X70 FLANGE | ||
| 004 | I5-11721 016-0 | GUIDE; VLV | 8 | 2204- | TRAGA | L=50 | ||
| 012 | I8-98268 195-A | HANGER; ENG,RR | 1 | 2204- | TRAGA | |||
| 002 | I8-97350 318-0 | GASKET; CYL HD | 1 | 2204- | TRAGA | T=1.60 1-NOTCH | ||
| 007 | I8-97209 609-0 | CUP; SEALING,CYL HEAD | 6 | 2204- | TRAGA | (A) OD=22 | ||
| 003 | I8-97133 416-1 | BOLT; CYL HD TO BLOCK | 18 | 2204- | TRAGA | M11X122 | ||
| 002 | I6-94332 328-0 | GASKET; CYL HD | 1 | 2204- | TRAGA | (IADG) T=1.70 3-NOTCH | ||
| 041 | I0-28051 070-0 | BOLT; ENG HANGER | 1 | 2204- | TRAGA | (B) M10X70 FLANGE | ||
| 005 | I8-97378 030-0 | SEAT; VLV INSERT | 4 | 2204- | TRAGA | (A) INLET OD=42.7 |
