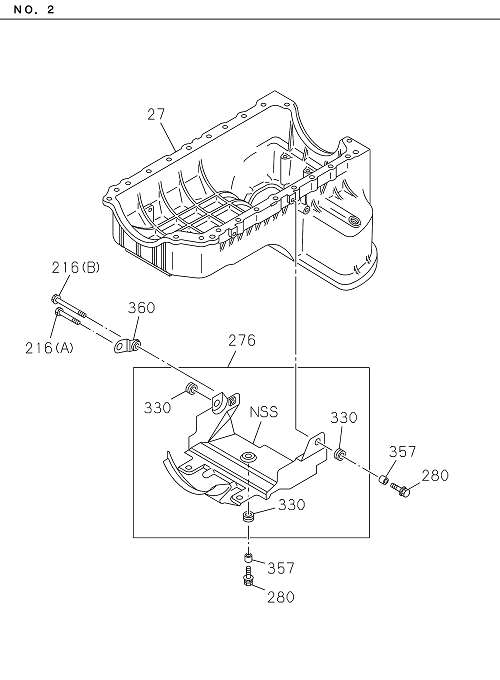

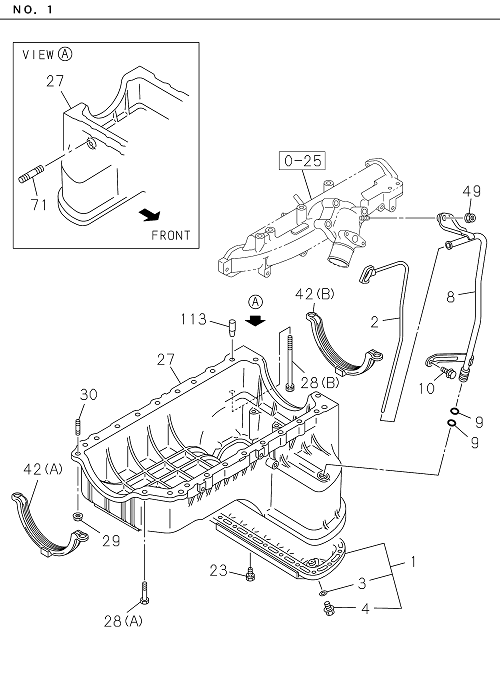

0-13 | OIL PAN AND LEVEL GAUGE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 276 | I8-97373 085-0 | COVER CRANKCASE | 1 | 2204- | TRAGA | |||
| 30 | I0-41010 835-0 | STUD CRANKCASE | 2 | 2204- | TRAGA | M8X35 L=47 | ||
| 280 | I0-50640 825-0 | BOLT COVER | 3 | 2204- | TRAGA | M8X22 W/LK&PL WASHER | ||
| 9 | I5-09623 002-0 | GASKET GUIDE TUBE,OIL LEVEL GAUGE | 2 | 2204- | TRAGA | ID=11 | ||
| 71 | I0-41010 818-0 | STUD OIL DRAIN PIPE | 2 | 2204- | TRAGA | M8X18 L=30 | ||
| 8 | I8-97524 430-1 | TUBE GUIDE,OIL LEVEL GAUGE | 1 | 2204- | TRAGA | |||
| 3 | I8-97912 531-0 | GASKET DRAIN PLUG | 1 | 2204- | TRAGA | ID=14.2 OD=24 | ||
| 216 | I0-28050 812-A | BOLT BRKT | 1 | 2204- | TRAGA | (A) M8X12 FLANGE | ||
| 42 | I8-97123 342-0 | GASKET CRANKCASE TO C/BL | 1 | 2204- | TRAGA | (B) REAR | ||
| 42 | I6-97120 933-1 | GASKET CRANKCASE TO C/BL | 1 | 2204- | TRAGA | (IADG) (A) FRONT | ||
| 330 | I8-97325 051-0 | RUBBER MTG,CRANKCASE COVER | 3 | 2204- | TRAGA | OD=21.8 | ||
| 28 | I0-28055 812-0 | BOLT CRANKCASE TO C/BL | 1 | 2204- | TRAGA | (B) M8X120 FLANGE | ||
| 49 | I7-05108 010-A | NUT GUIDE TUBE | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 29 | I7-05108 010-A | NUT CRANKCASE | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 113 | I9-09878 597-0 | PIN STRAIGHT | 2 | 2204- | TRAGA | L=31 | ||
| 360 | I8-97329 650-1 | BRACKET CRANK CASE | 1 | 2204- | TRAGA | |||
| 2 | I8-97529 409-1 | GAUGE OIL LEVEL | 1 | 2204- | TRAGA | |||
| 42 | I6-97123 342-1 | GASKET CRANKCASE TO C/BL | 1 | 2204- | TRAGA | (IADG) (B) REAR | ||
| 1 | I8-97131 905-0 | PAN ASM OIL | 1 | 2204- | TRAGA | |||
| 42 | I8-97120 933-0 | GASKET CRANKCASE TO C/BL | 1 | 2204- | TRAGA | (A) FRONT | ||
| 216 | I0-50640 825-0 | BOLT BRKT | 1 | 2204- | TRAGA | (B) M8X22 W/LK&PL WASHER | ||
| 27 | I8-97358 796-0 | CRANKCASE | 1 | 2204- | TRAGA | |||
| 10 | I0-28050 816-0 | BOLT GUIDE TUBE | 1 | 2204- | TRAGA | M8X16 FLANGE | ||
| 28 | I0-50540 832-0 | BOLT CRANKCASE TO C/BL | 19 | 2204- | TRAGA | (A) M8X32 W/LK WASHER | ||
| 4 | I8-94152 613-A | PLUG DRAIN,OIL | 1 | 2204- | TRAGA | M14X14 | ||
| 357 | I8-97361 926-0 | BUSHING COVER | 3 | 2204- | TRAGA | |||
| 1 | I6-97131 905-0 | PAN ASM OIL | 1 | 2204- | TRAGA | (IADG) | ||
| 23 | I8-97135 141-0 | BOLT OIL PAN | 17 | 2204- | TRAGA | M6X13 W/PL WASHER |
